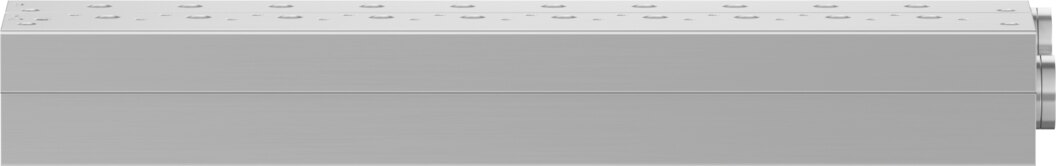

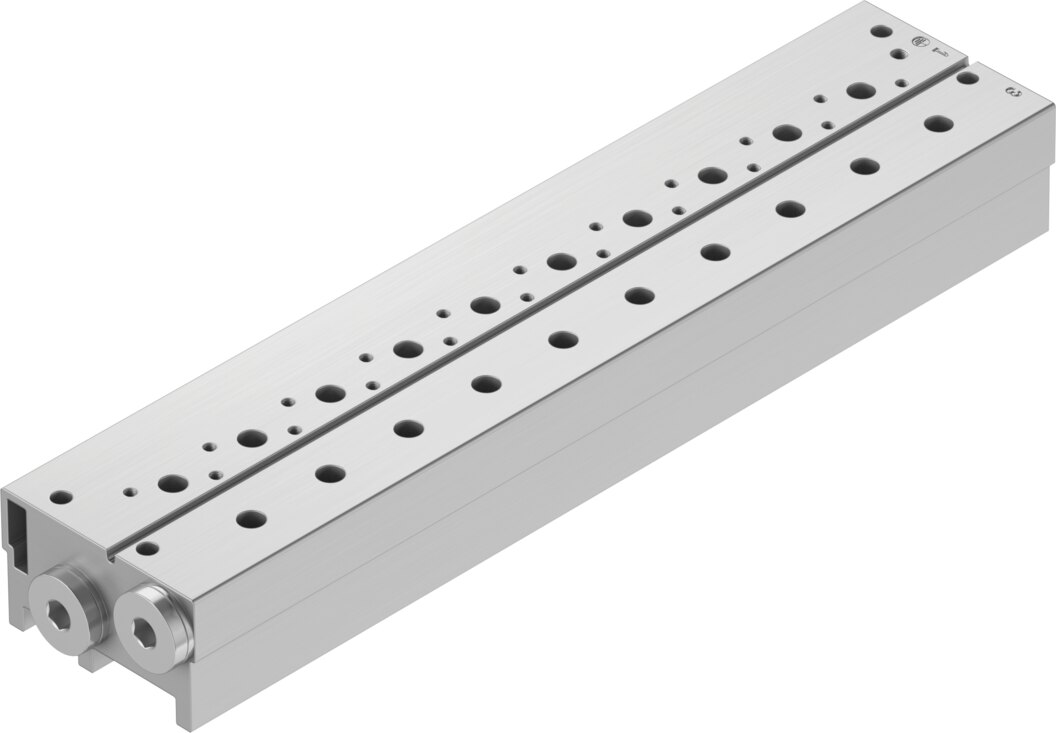

Manifold block for 10 valves, 22 mm grid, 1/4 NPT VABM-B10-20S-N14-10-P3 - Festo 576485

Festo ✓ Original product Brand new

10 valve positions on a 22 mm grid save individual tubing, the supply runs centrally through the block. Supply port 1 in 1/4 NPT and exhaust port 3 in 1/4 NPT. Type VABM-B10-20S-N14-10-P3 in wrought aluminium alloy, CRC 2.

Net
€84.48
excl. VAT
Item FES-576485
Manufacturer no. VABM-B10-20S-N14-10-P3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 10 valve positions on a 22 mm grid, the manifold block VABM-B10-20S-N14-10-P3 forms the base of a compact valve group. Lines connect via supply port 1 in 1/4 NPT and exhaust port 3 in 1/4 NPT. Wrought aluminium alloy, CRC 2 and PWIS conformity to VDMA 24364-B1/B2-L characterise the VABM-B10-20S-N14-10-P3.

Benefits

  • Valve positions: 10 positions on a 22 mm grid
  • Supply: Port 1 in 1/4 NPT, exhaust in 1/4 NPT
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

Type of mounting: with through-hole, any mounting position.

Technical data

TypeVABM-B10-20S-N14-10-P3
Festo part number576485
Grid dimension22 mm
Mounting positionAny
Maximum number of valve positions10
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight922 g
Type of mountingWith through-hole
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 31/4 NPT
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
Weight (shipping)1.3 kg
Weight1.3 kg
ManufacturerFesto
Hersteller-NrVABM-B10-20S-N14-10-P3
EAN4052568380106
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/4
Anzahl Stationen [Stk]10
SeriesVABM
Pneumatic connectionNPT 1/4
