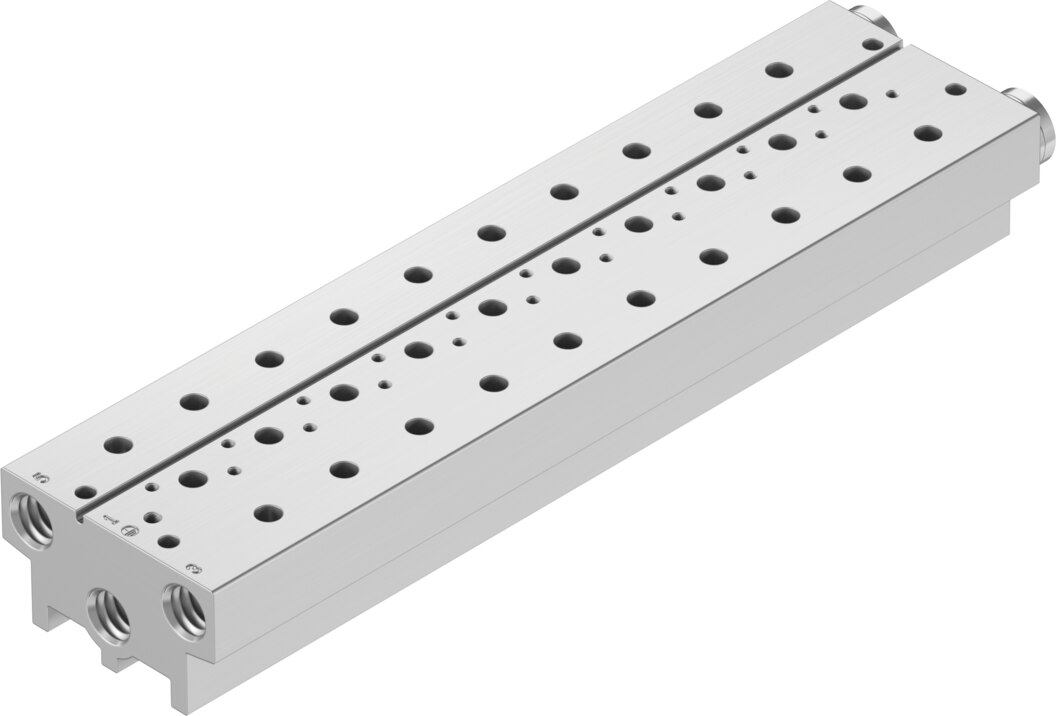

Manifold block for 9 valves, 22 mm grid, G1/4 VABM-B10-20S-G14-9 - Festo 576424

Festo ✓ Original product Brand new

9 valve positions on a 22 mm grid save individual tubing, the supply runs centrally through the block. Supply port 1 in G1/4 and exhaust ports 3 and 5 in G1/4. Type VABM-B10-20S-G14-9 in wrought aluminium alloy, CRC 2.

Net
€102.15
excl. VAT
Item FES-576424
Manufacturer no. VABM-B10-20S-G14-9
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The manifold block VABM-B10-20S-G14-9 carries 9 valves on a 22 mm grid and supplies them with compressed air from one source. Ports: supply port 1 in G1/4 and exhaust ports 3 and 5 in G1/4. The VABM-B10-20S-G14-9 is made of wrought aluminium alloy, corrosion resistance class 2, VDMA 24364-B1/B2-L.

Benefits

  • Valve positions: 9 positions on a 22 mm grid
  • Supply: Port 1 in G1/4, exhaust in G1/4
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

The VABM-B10-20S-G14-9 is mounted with through-hole, in any position.

Technical data

TypeVABM-B10-20S-G14-9
Festo part number576424
Grid dimension22 mm
Mounting positionAny
Maximum number of valve positions9
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight1012 g
Type of mountingWith through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVABM-B10-20S-G14-9
EAN4052568262136
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Anzahl Stationen [Stk]9
SeriesVABM
Pneumatic connectionG1/4
