Duct separator plate, to ISO 5599-1 VABD-S1-1-P2-C - Festo 8029439

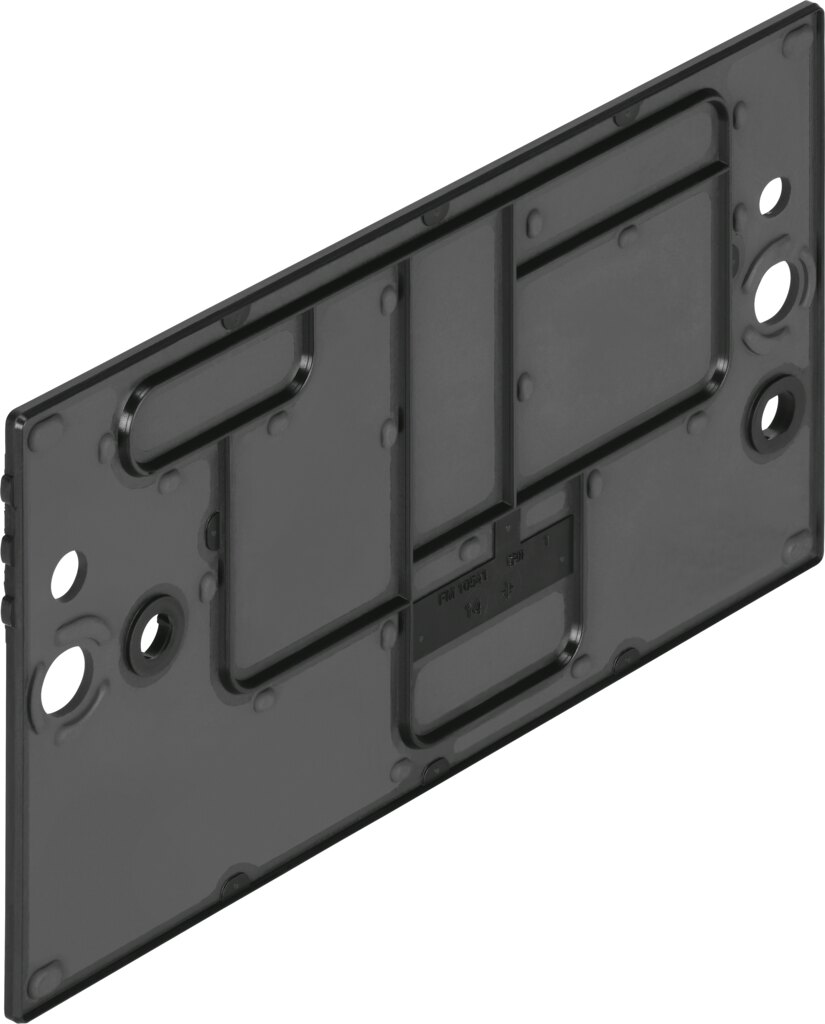

The Festo duct separator plate VABD-S1-1-P2-C separates ducts in the valve terminal to create separate pressure zones. Operating pressure -0.9 to 10 bar, to ISO 5599-1, CRC 0, separator plate material steel, NBR.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo duct separator plate VABD-S1-1-P2-C separates ducts in the valve terminal to create separate pressure zones. Key selection criterion: operating pressure -0.9 to 10 bar.
Benefits
- Standard ISO 5599-1: according to Festo, the VABD-S1-1-P2-C is based on this standard.
- VABD-S1-1-P2-C rated -0.9 to 10 bar: also suitable for vacuum circuits.
- CRC 0: the VABD-S1-1-P2-C is made of steel, NBR.
- VABD-S1-1-P2-C LABS (PWIS) compliant to VDMA24364-B1/B2-L.
Application
Needed when several working pressures, or vacuum and compressed air, run side by side on one valve terminal. The VABD-S1-1-P2-C is designed for compressed air to ISO 8573-1:2010 [7:4:4], permissible ambient temperature -10 to 50 °C.
Technical data
| Type | VABD-S1-1-P2-C |
|---|---|
| Festo part number | 8029439 |
| Based on standard | ISO 5599-1 |
| Operating pressure | -0.9 to 10 bar |
| Suitable for vacuum | Yes |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 to 60 °C |
| Medium temperature | -10 to 50 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 to 50 °C |
| Product weight | 70 g |
| Note on materials | RoHS compliant |
| Separator plate material | Steel, NBR |
| Weight (price list) | 0.075 kg |
| Weight | 0.075 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABD-S1-1-P2-C |
| EAN | 4052568428280 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Medium | Compressed air |
| Norm | ISO 5599-1 |
| Series | VABD |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -10-50 °C |
| Temperature (max.) | 50 |
