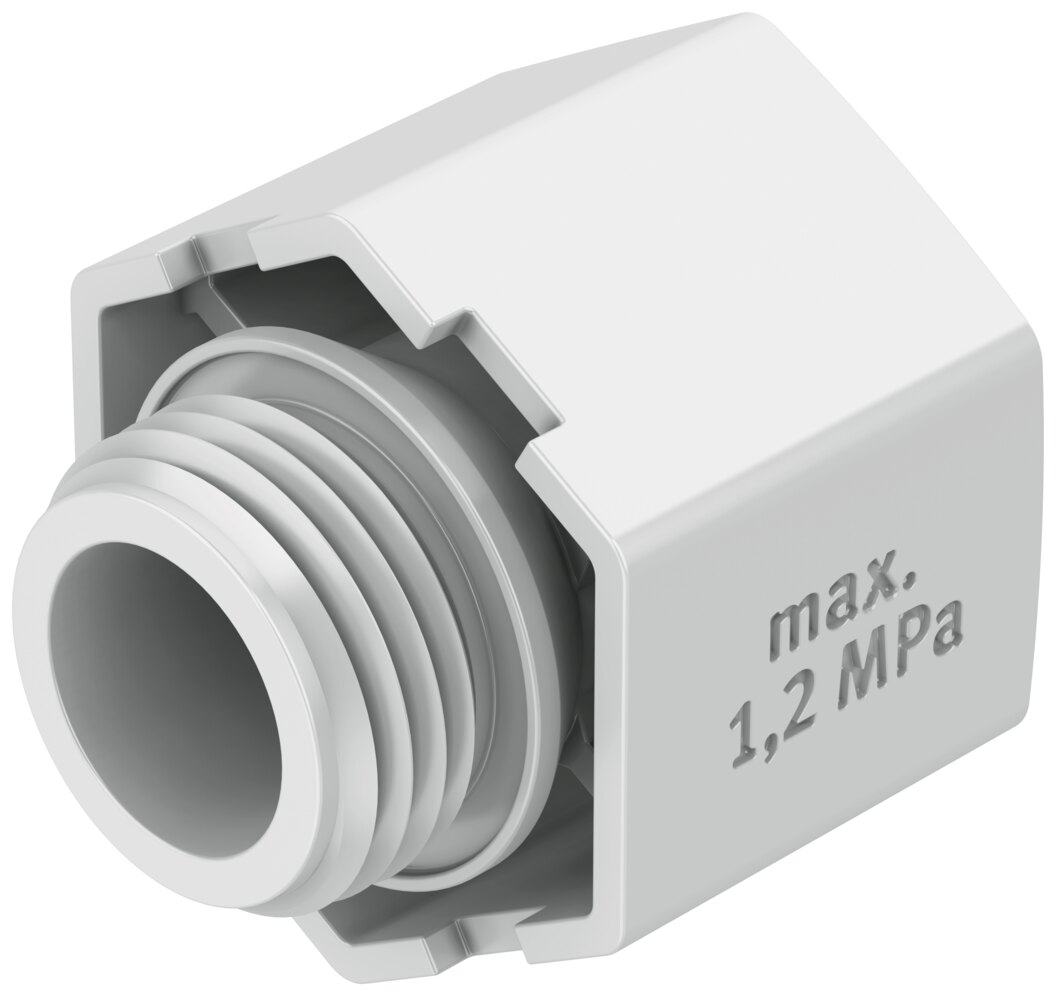

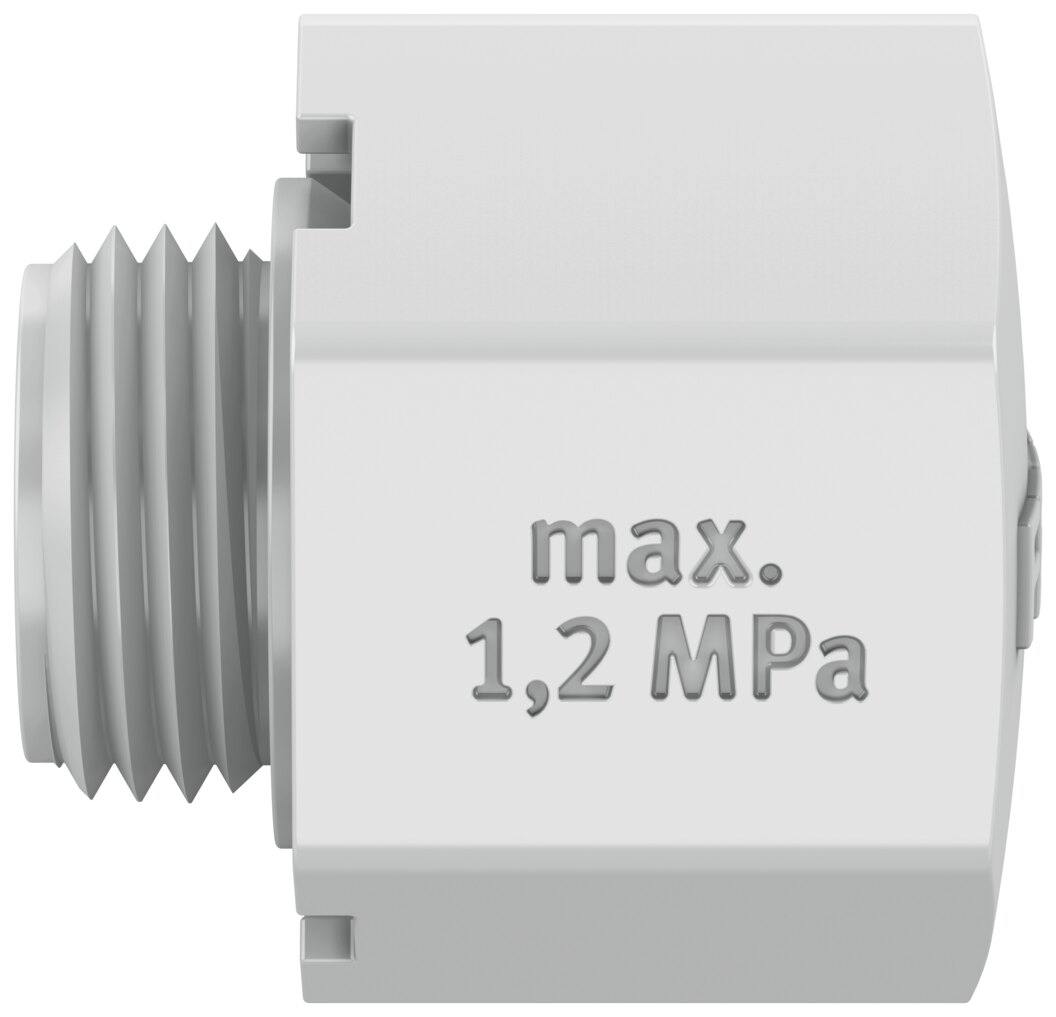

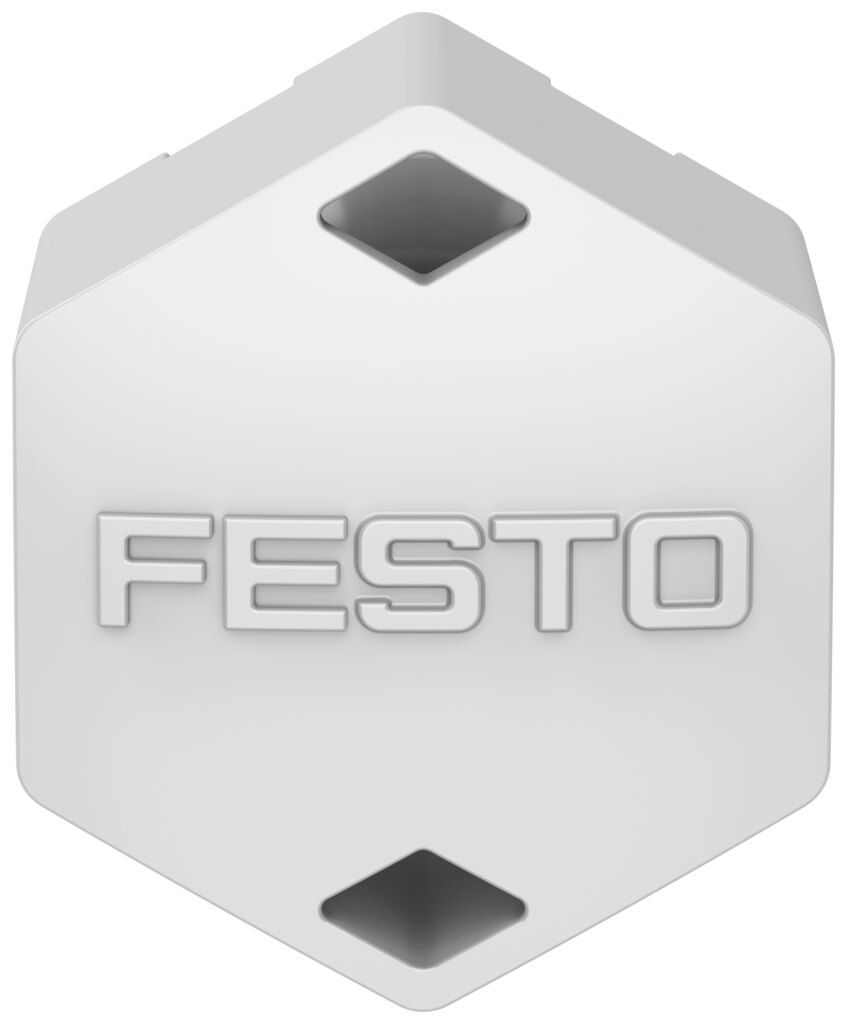

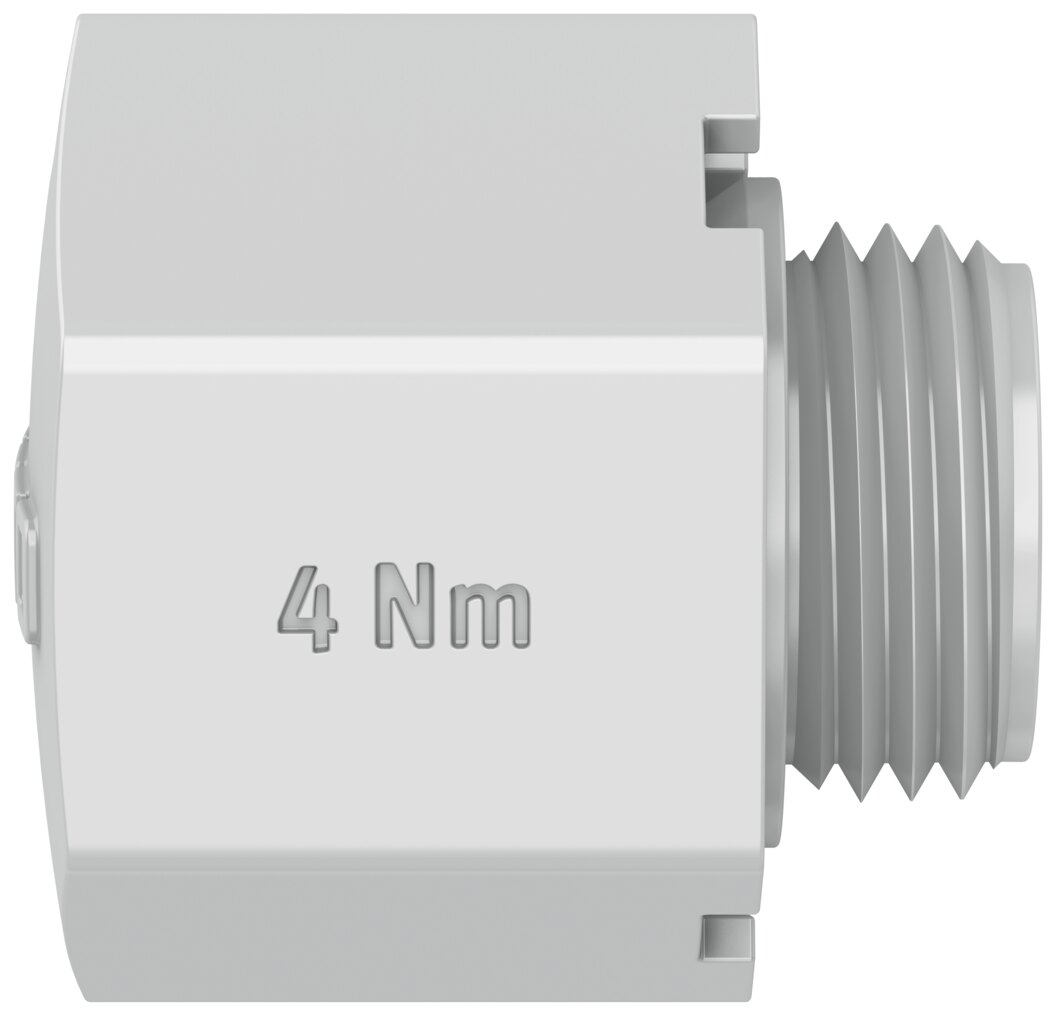

Exhaust protection, port G1/2, 1/2 NPT, ATEX VABD-D3-L-GN12 - Festo 8177961
The Festo exhaust protection VABD-D3-L-GN12 screws into the exhaust port and protects it against ingress of dirt. Specification: port G1/2, 1/2 NPT, operating pressure 0 to 12 bar, degree of protection IP54, ambient temperature -50 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo exhaust protection VABD-D3-L-GN12 screws into the exhaust port and protects it against ingress of dirt. Key selection criterion: port G1/2, 1/2 NPT.
Benefits
- Ports: port G1/2, 1/2 NPT.
- Operating pressure 0 to 12 bar for the VABD-D3-L-GN12 as per Festo data sheet.
- Explosion protection: ATEX Zone 1, Zone 2, Zone 21, Zone 22, observe the information in the certificate.
- Degree of protection IP54: the VABD-D3-L-GN12 is protected against dust and splashing water.
- VABD-D3-L-GN12: made of HP PA 12 according to Festo.
- VABD-D3-L-GN12 LABS (PWIS) compliant to VDMA24364 zone III.
Application
For valves and valve terminals with open exhaust in dusty environments. The VABD-D3-L-GN12 is designed for compressed air to ISO 8573-1:2010 [7:-:-], permissible ambient temperature -50 to 60 °C. Festo note on use: suspension of explosive dusts possible, increased noise pollution, provide protection against icing at an ambient temperature ≤ 0 °C.
Technical data
| Type | VABD-D3-L-GN12 |
|---|---|
| Festo part number | 8177961 |
| Note on use | Suspension of explosive dusts possible, increased noise pollution, provide protection against icing at an ambient temperature ≤ 0 °C |
| Mounting position | Any |
| Operating pressure | 0 to 12 bar |
| Explosion protection | Observe the information in the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP54 |
| Ambient temperature | -50 to 60 °C |
| Product weight | 14 g |
| Mounting type | Screw-in, with male thread |
| Pneumatic connection | G1/2, 1/2 NPT |
| Note on materials | RoHS compliant |
| Vent screw material | HP PA 12 |
| Weight (price list) | 0.012 kg |
| Weight | 0.012 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABD-D3-L-GN12 |
| EAN | 4052568622749 |
| Zolltarifnummer | 39269097 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Medium | Compressed air |
| Series | VABD |
| Betriebsdruck max [bar] | 12 |
| Protection rating | IP54 |
| Temperature (max.) | 60 |
