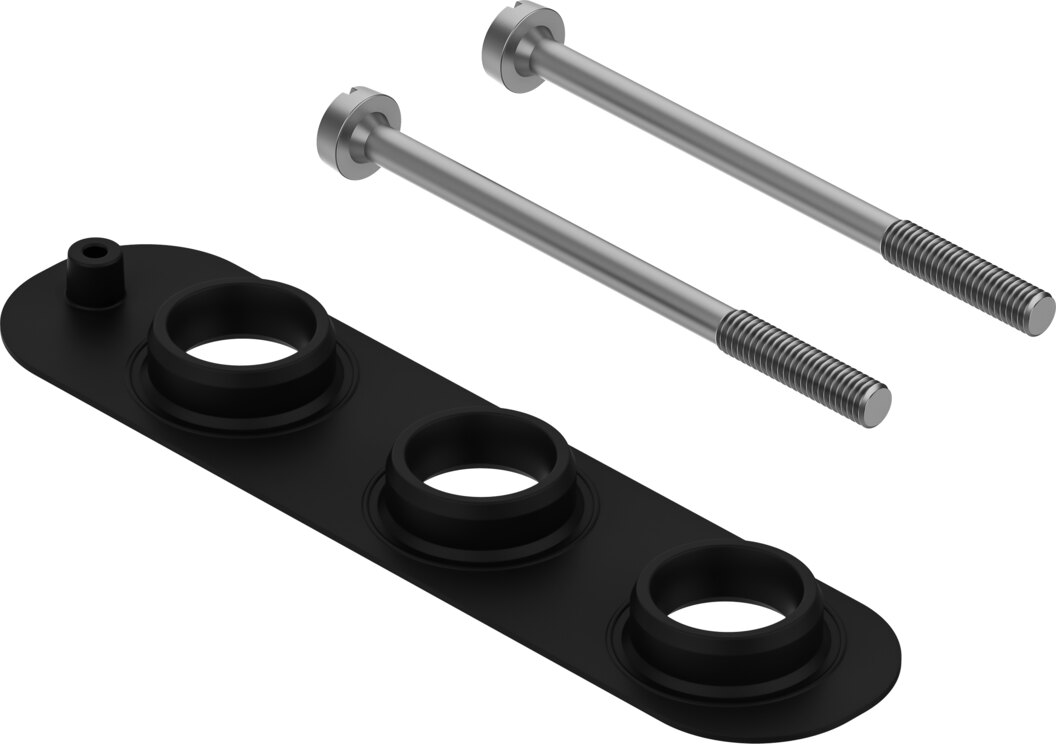

Separator, NBR seal, for Festo valve terminals VABD-6-B-F1A - Festo 8145478
The Festo separator VABD-6-B-F1A divides a valve terminal into sections with different pressures. Specification: NBR seals, CRC 0, plug material aluminium.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo separator VABD-6-B-F1A divides a valve terminal into sections with different pressures. Key selection criterion: NBR seals.
Benefits
- Plug material: aluminium, corrosion resistance class CRC 0.
- Seal material NBR according to Festo.
- VABD-6-B-F1A LABS (PWIS) compliant to VDMA24364 zone III.
- Battery production (F1a): suitable with reduced Cu/Zn/Ni values.
- Cleanroom: Class 6 according to ISO 14644-1, measured to ISO 14644-14.
Application
Needed when several working pressures, or vacuum and compressed air, run side by side on one valve terminal.
Technical data
| Type | VABD-6-B-F1A |
|---|---|
| Festo part number | 8145478 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | Class 6 according to ISO 14644-1 |
| Product weight | 7 g |
| Note on materials | RoHS compliant |
| Seal material | NBR |
| Screw material | Steel, chemically nickel-plated |
| Circlip material | High-alloy stainless steel |
| Plug material | Aluminium |
| Weight (price list) | 0.0028 kg |
| Weight | 0.003 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABD-6-B-F1A |
| EAN | 4052568577094 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Series | VABD |
