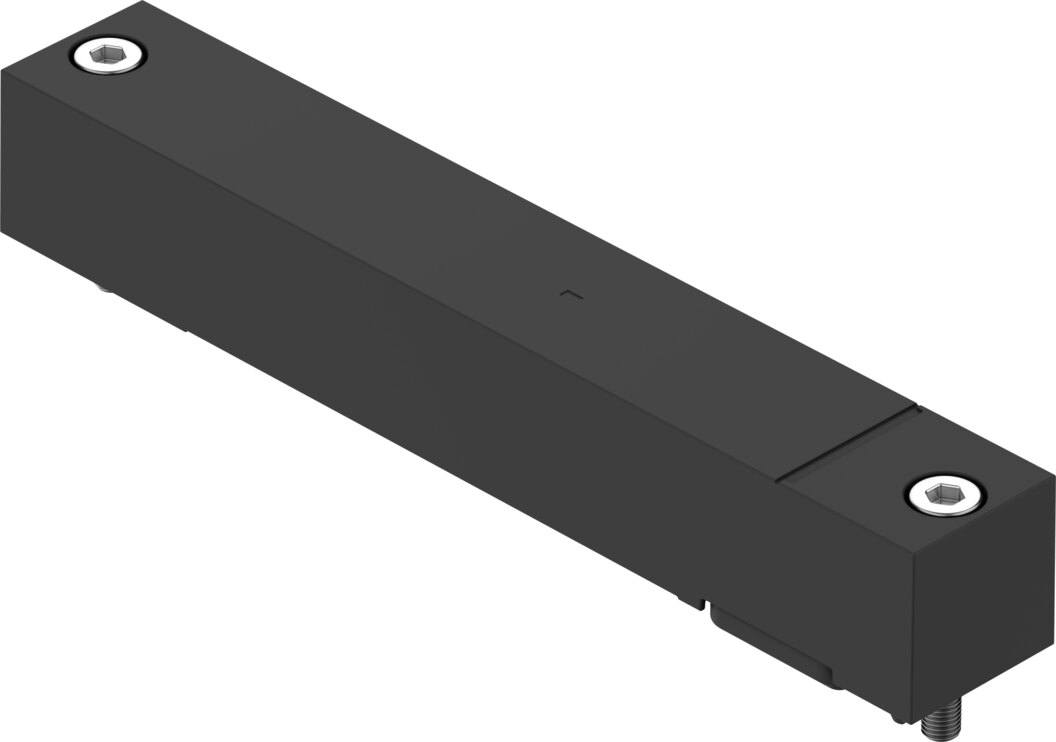

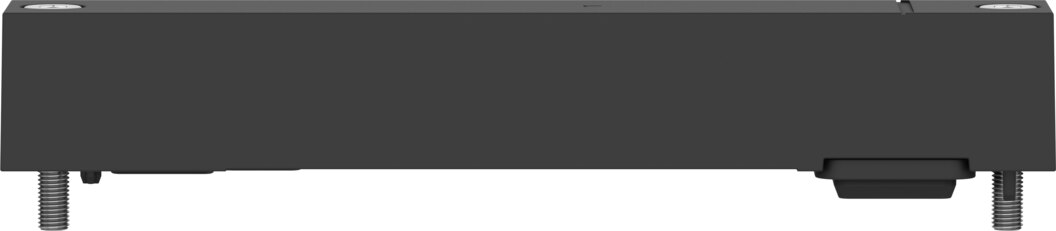

Cover plate PA66-GF30, 16 mm grid VABB-P19-16-T - Festo 8154656
The Festo cover plate VABB-P19-16-T closes off an unused position and keeps the assembly closed. Material PA66-GF30, grid dimension 16 mm, seal EPDM, operating pressure -1 to 7 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo cover plate VABB-P19-16-T, made of PA66-GF30.
Benefits
- Grid dimension 16 mm: matching the grid of the associated valves.
- Pressure range -1 to 7 bar: the VABB-P19-16-T works from vacuum to positive pressure.
- Material PA66-GF30: cover plate VABB-P19-16-T as per Festo data sheet.
- Mounting: VABB-P19-16-T via through-hole and screw.
- Max. tightening torque: 0.75 Nm.
- Suitable for vacuum according to Festo data.
Application
The VABB-P19-16-T is used when positions remain free or are reserved for later expansion. Permissible ambient temperature 5 to 50 °C. LABS (PWIS) conformity to VDMA24364 zone III.
Technical data
| Type | VABB-P19-16-T |
|---|---|
| Festo part number | 8154656 |
| Size | 16 |
| Grid dimension | 16 mm |
| Sealing principle | Soft |
| Operating pressure | -1 to 7 bar |
| Suitability for vacuum | Yes |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 70 °C |
| Medium temperature | 5 to 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 5 to 50 °C |
| Nominal tightening torque | 0.75 Nm |
| Product weight | 14.9 g |
| Electrical connection | Plug-in |
| Mounting type | Via through-hole and screw |
| Note on materials | RoHS compliant |
| Material seals | EPDM |
| Housing material | PA66-GF30 |
| Weight (price list) | 0.028 kg |
| Weight | 0.028 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABB-P19-16-T |
| EAN | 4052568479435 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Seal material | EPDM |
| Series | VABB |
| Betriebsdruck max [bar] | 7 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
