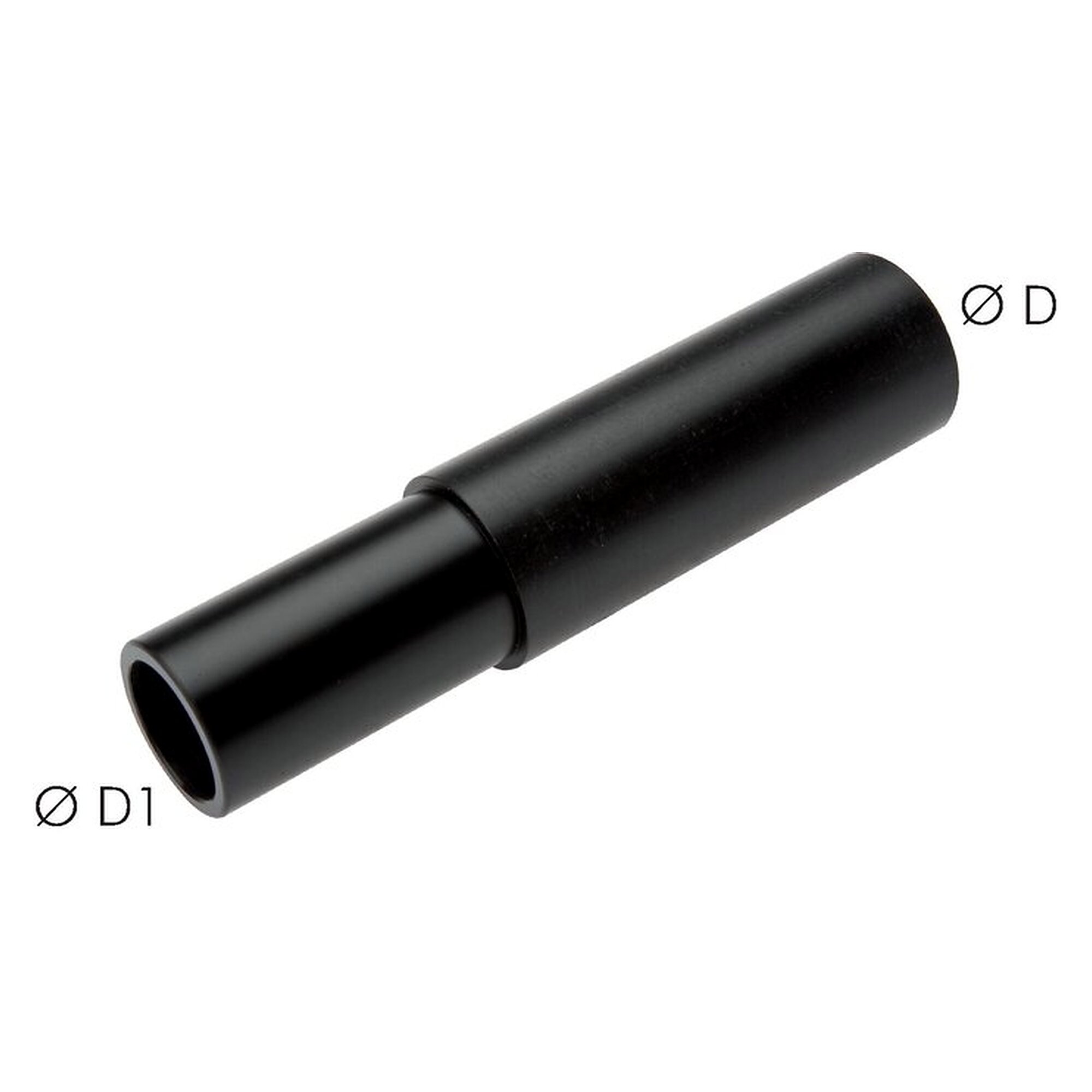

Push-in stem connector, large design, tube 32 mm, second port 28 mm, polypropylene

This push-in stem connector is designed for a tube of 32 mm outside diameter and a second tube of 28 mm outside diameter. The part accepts the tube without tools and holds it by the gripping claws. The material is polypropylene, the size is fixed at tube diameter 32 mm.

Benefits

• The transition from 32 mm to 28 mm saves an additional reducer
• Approvals to NSF and ANSI 51 as well as 61, DVGW-W270, KTW are documented for the materials
• The tube is pushed in without tools and released again over the release ring
• The size 32 is clearly assigned and stays available for reordering
• With tube diameter 32 mm the size is fixed, so no reworking of the line is required

Technical data

Applications

Pneumatic cylinders and valve terminals, control air lines inside the control cabinet, workshop distribution and service units, compressed air installation on machines and plants.

Standards and conformity

The following approvals are documented for the materials used: NSF and ANSI 51 as well as 61, DVGW-W270, KTW.
