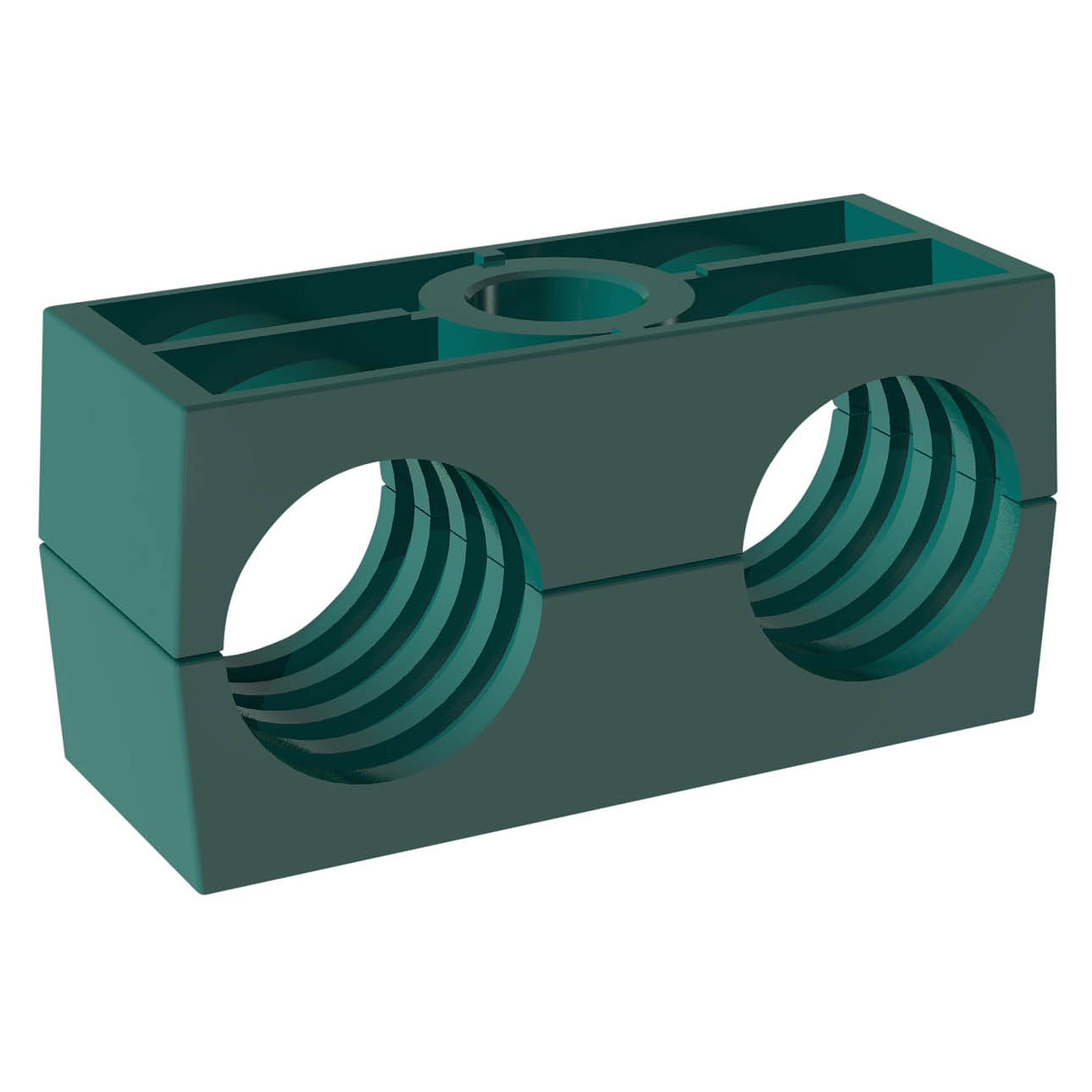

Clamp assembly without mounting hardware, twin series size 2D, Ø 12.7 mm, polypropylene, ribbed 212.7/12.7-PP-GD-AS-M-W4 - Stauff 1110028358
STAUFF clamp assembly without mounting hardware, twin series, size 2D (DIN 3015-3), for tubes and lines of Ø 12.7 mm, clamp body in polypropylene, ribbed, with preload. Fastening: cover plate and hex head bolt, surface code W4. For routing Ø 12.7 mm tubing on power units, machines and vehicles.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
STAUFF clamp assembly without mounting hardware, twin series, size 2D (DIN 3015-3), for tubes and lines of Ø 12.7 mm, clamp body in polypropylene, ribbed, with preload. Fastening: cover plate and hex head bolt, surface code W4. Included in the set: clamp body, cover plate and hex head bolt.
Benefits
- Included in the set: clamp body, cover plate and hex head bolt.
- Without mounting hardware, the clamp is combined with existing plates, rails or bolts.
- The ribbed inner surface with preload holds the line firmly and damps vibration.
- Dimensions to DIN 3015-3, combinable with STAUFF clamp system components of the same size.
Applications
For routing Ø 12.7 mm tubing on power units, machines and vehicles.
Technical data
| Property | Value |
|---|---|
| STAUFF type | 212.7/12.7-PP-GD-AS-M-W4 |
| Article number | 1110028358 |
| Clamp type | Clamp assembly without mounting hardware |
| Series | twin series (DIN 3015-3) |
| Size | 2D |
| Line diameter | 12.7 mm |
| Clamp body material | polypropylene |
| Inner surface | ribbed, with preload |
| Fastening parts | cover plate and hex head bolt |
| Surface code | W4 |
| Gross weight | 0.07 kg |
| Customs tariff number | 39269097 |
| Weight | 0.07 kg |
| Manufacturer | Stauff |
| Hersteller-Nr | 212.7/12.7-PP-GD-AS-M-W4 |
| Zolltarifnummer | 39269097 |
| GPSR Herstellerdaten | Walter Stauffenberg GmbH & Co. KG, Im Ehrenfeld 4, DE-58791 Werdohl, www.stauff.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Norm | DIN 3015 |
