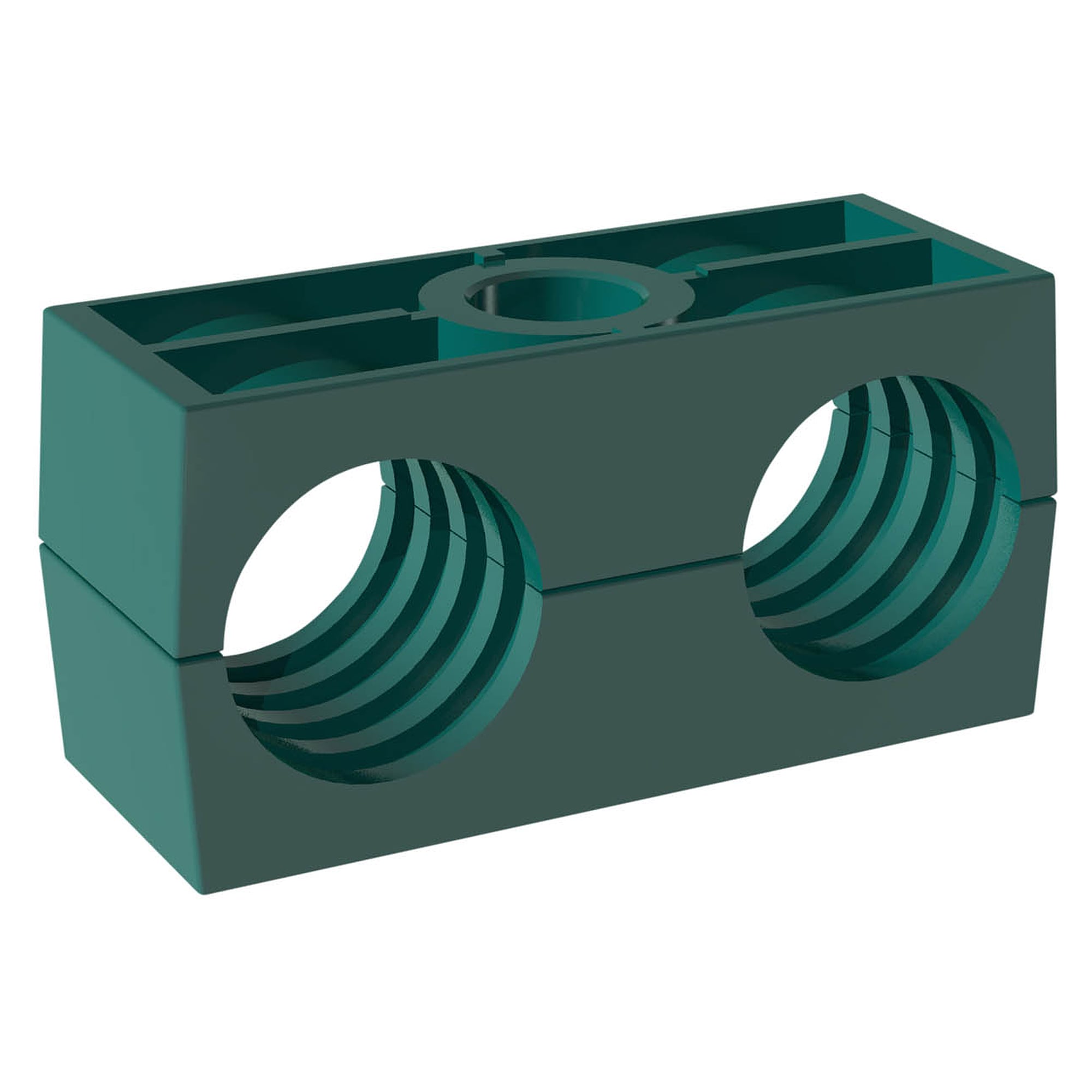

Clamp assembly without mounting hardware, twin series size 2D, Ø 13.5 mm, polypropylene, smooth 213.5/13.5-PP-H-GD-AS-M-W3-K - Stauff 1110010445

Stauff ✓ Original product Brand new Made in Germany

STAUFF clamp assembly without mounting hardware, twin series, size 2D (DIN 3015-3), for tubes and lines of Ø 13.5 mm, clamp body in polypropylene, smooth, without preload. Fastening: cover plate and hex head bolt, surface code W3. For routing Ø 13.5 mm tubing on power units, machines and vehicles.

Net
€2.54
excl. VAT
Item STF-1110010445
Manufacturer no. 213.5/13.5-PP-H-GD-AS-M-W3-K
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

STAUFF clamp assembly without mounting hardware, twin series, size 2D (DIN 3015-3), for tubes and lines of Ø 13.5 mm, clamp body in polypropylene, smooth, without preload. Fastening: cover plate and hex head bolt, surface code W3. Included in the set: clamp body, cover plate and hex head bolt.

Benefits

  • Included in the set: clamp body, cover plate and hex head bolt.
  • Without mounting hardware, the clamp is combined with existing plates, rails or bolts.
  • The smooth inner surface without preload guides the line and allows for linear expansion.
  • Dimensions to DIN 3015-3, combinable with STAUFF clamp system components of the same size.

Applications

For routing Ø 13.5 mm tubing on power units, machines and vehicles.

Technical data

PropertyValue
STAUFF type213.5/13.5-PP-H-GD-AS-M-W3-K
Article number1110010445
Clamp typeClamp assembly without mounting hardware
Seriestwin series (DIN 3015-3)
Size2D
Line diameter13.5 mm
Clamp body materialpolypropylene
Inner surfacesmooth, without preload
Fastening partscover plate and hex head bolt
Surface codeW3
Gross weight0.072 kg
Customs tariff number39269097
Weight0.072 kg
ManufacturerStauff
Hersteller-Nr213.5/13.5-PP-H-GD-AS-M-W3-K
Zolltarifnummer39269097
GPSR HerstellerdatenWalter Stauffenberg GmbH & Co. KG, Im Ehrenfeld 4, DE-58791 Werdohl, www.stauff.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Country of ManufactureGermany
NormDIN 3015
