Limit switch box switching output PNP inductive angle 0 to 90° switching element P&F NBB2-V3-E2 SRBK-CA4-YR90-N-1-P-M12 - Festo 8182182

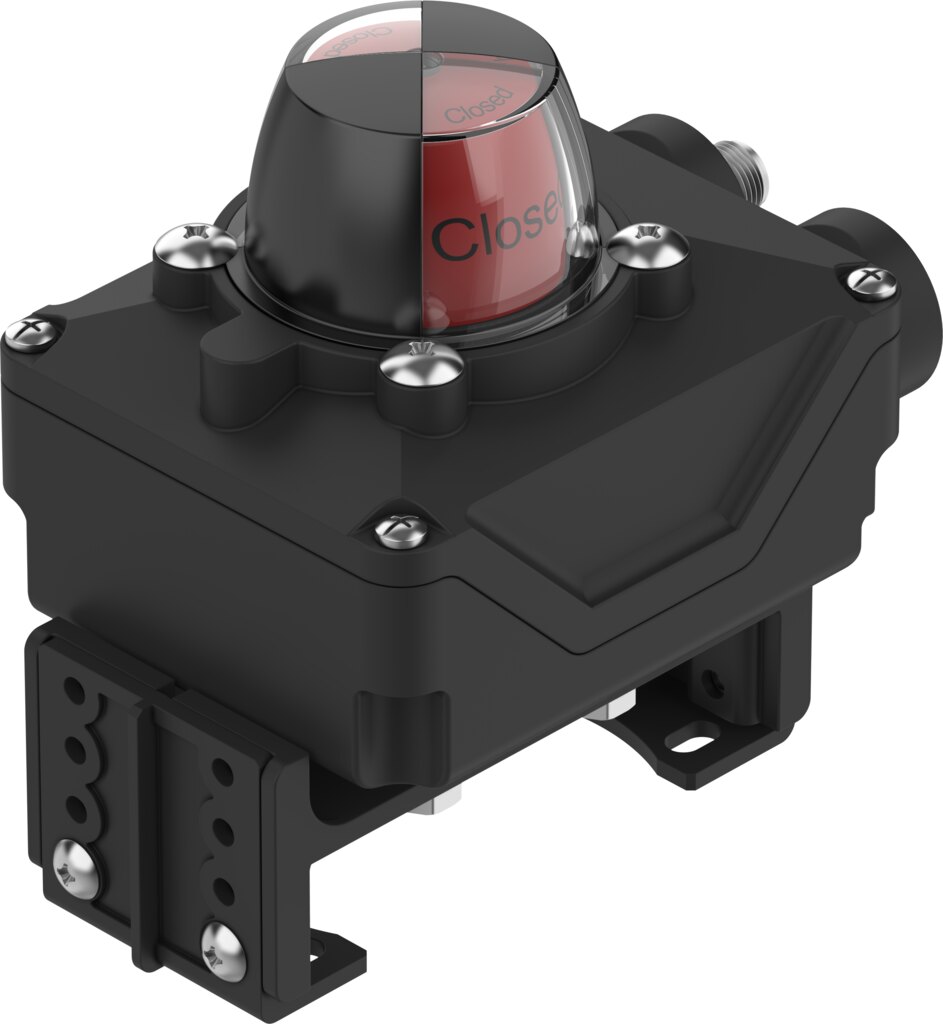

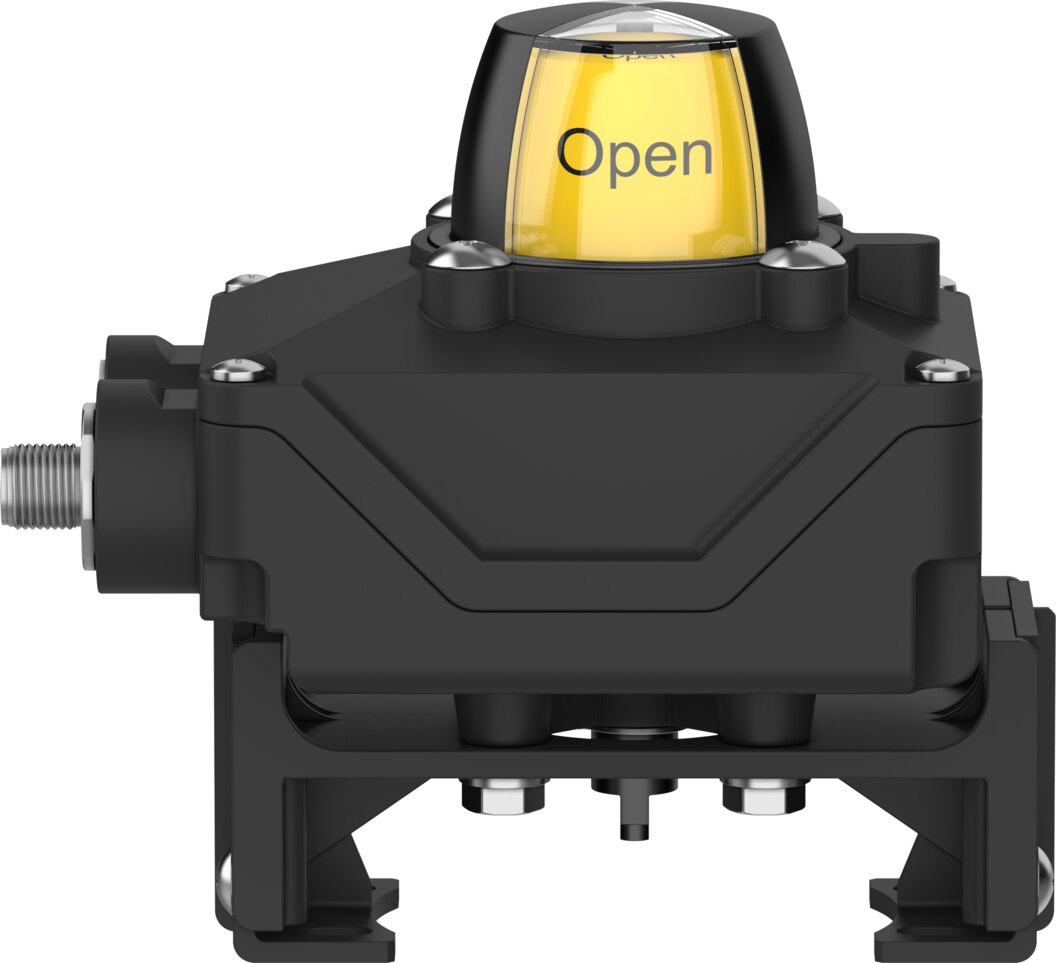

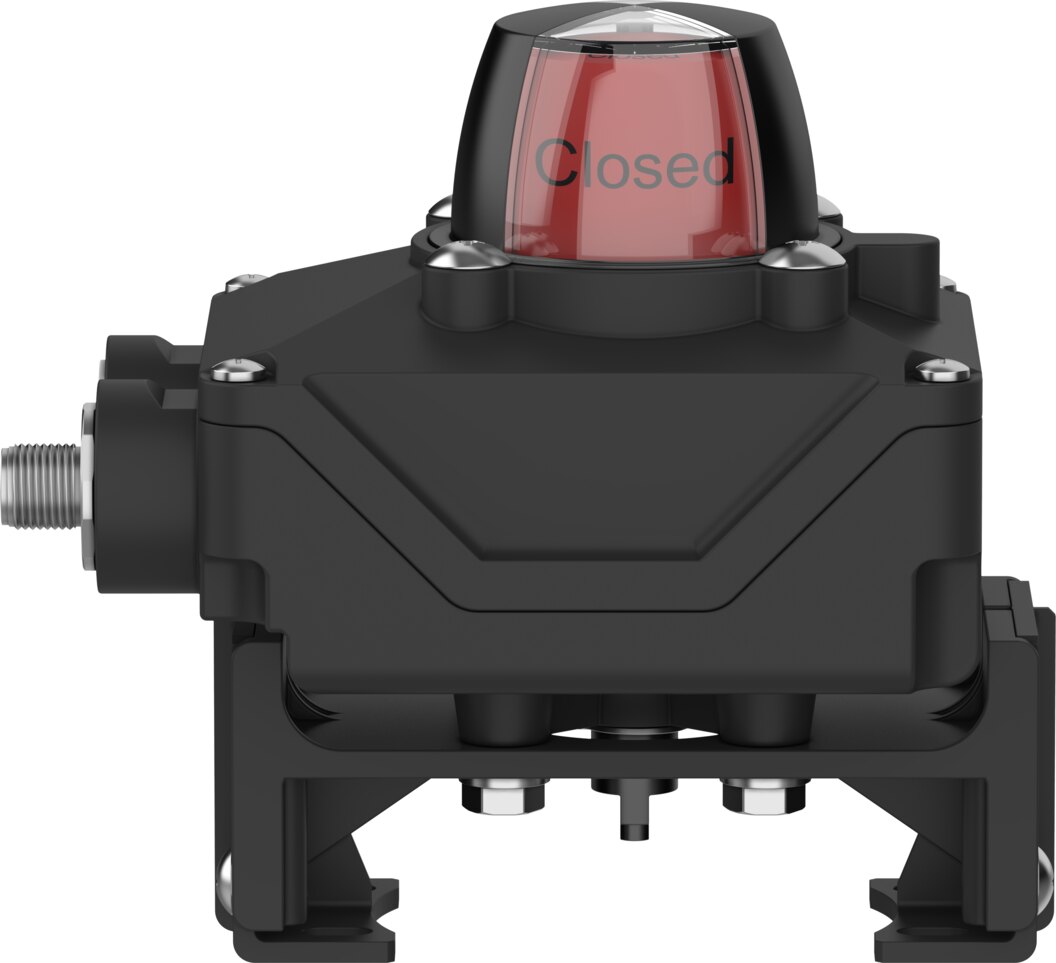

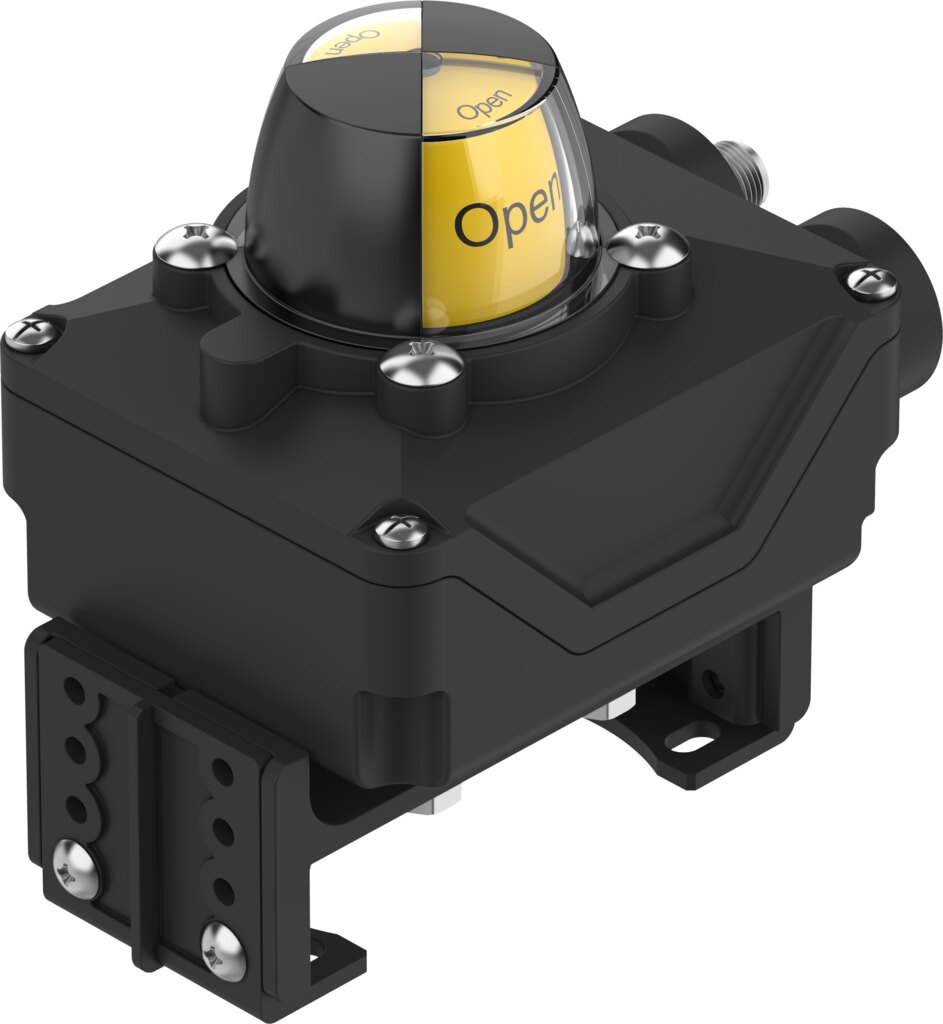

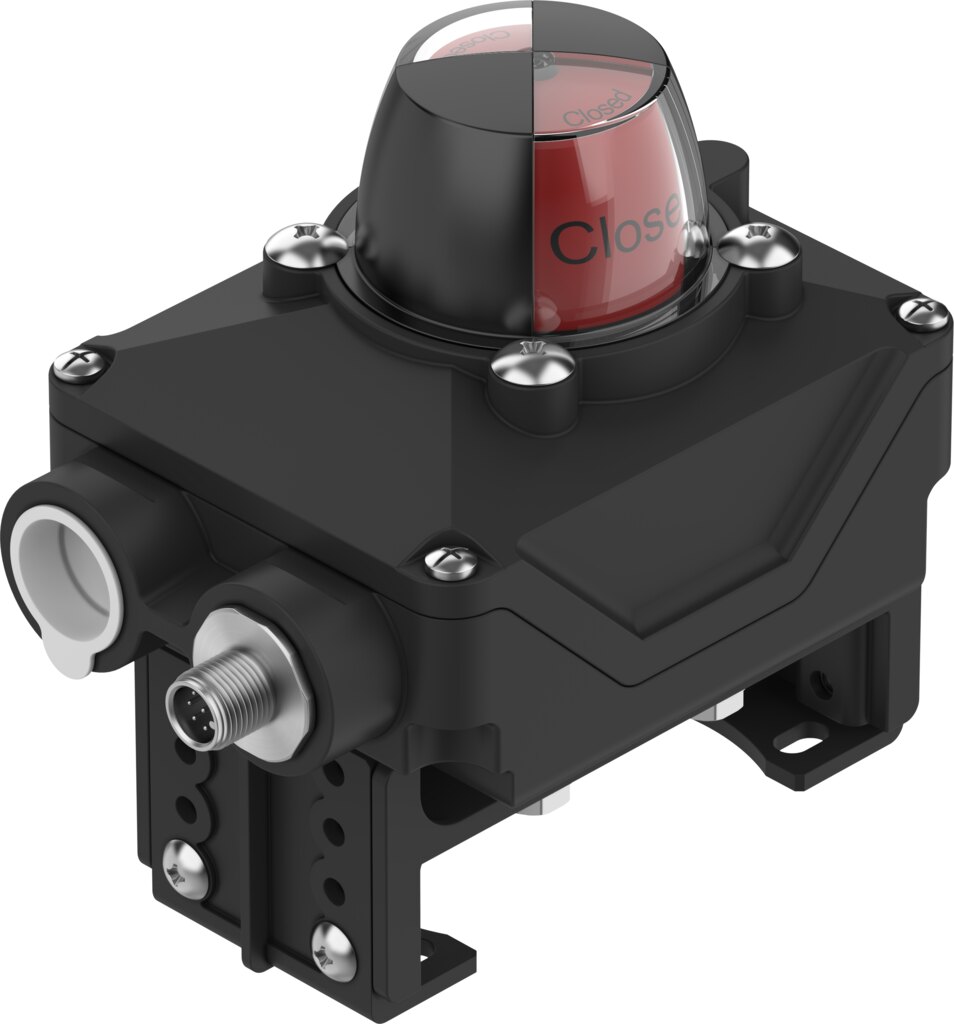

Reports the position of a quarter-turn actuator to the PLC. It mounts directly on the actuator interface. Festo limit switch box SRBK-CA4-YR90-N-1-P-M12 comes with angle detection adjustable 0 to 90° and switching output PNP, switching function N/O contact.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo limit switch box SRBK-CA4-YR90-N-1-P-M12: angle detection adjustable 0 to 90°, plus switching output PNP, switching function N/O contact. Reports the position of a quarter-turn actuator to the PLC. It mounts directly on the actuator interface.
Benefits
- Angle detection adjustable 0 to 90°
- Switching output PNP, switching function N/O contact
- Switching element P&F NBB2-V3-E2
- Suitable up to SIL 3 (Safety Integrity Level)
- Mounting interface to VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3
- Degree of protection IP66, IP67, dust-tight and protected against water jets
Applications
For process valves and butterfly valves with quarter-turn actuators in process engineering. To reorder, the type SRBK-CA4-YR90-N-1-P-M12 or Festo number 8182182 is sufficient.
Technical data
| Feature | Value |
|---|---|
| Type | SRBK-CA4-YR90-N-1-P-M12 |
| Festo part number | 8182182 |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations, to UK electrical equipment regulations |
| Certificate issuing authority | Eurocert. 93927 |
| Note on materials | RoHS compliant |
| Safety Integrity Level (SIL) | SIL 3 |
| Measured variable | position |
| Measuring principle | inductive |
| Sensing range | 0 to 90° |
| Ambient temperature | -20 to 70 °C |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. output current DC | 100 mA |
| Voltage drop | 3 V |
| Residual current | 0 to 0.5 mA |
| Short-circuit protection | pulsed |
| Operating voltage range DC | 10 to 30 V |
| No-load supply current | 15 mA |
| Reverse polarity protection | for all electrical connections |
| Microswitch type | P&F NBB2-V3-E2 |
| Electrical connection | M12x1 |
| Electrical connection 1, connection type | plug |
| Electrical connection 1, cable outlet | straight |
| Electrical connection 1, design | round |
| Electrical connection 1, connection technology | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 |
| Cable gland | M20x1.5 |
| Dimensions W x L x H | 143 mm x 85 mm x 128 mm, 143 mm x 85 mm x 138 mm, 143 mm x 85 mm x 158 mm, 159 mm x 85 mm x 128 mm, 159 mm x 85 mm x 138 mm |
| Interface for positioner and position feedback to standard | VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3 |
| Mounting position | any |
| Product weight | 500 g |
| Housing colour | black |
| Material housing | PA |
| Material seals | NBR |
| Material shaft | PA |
| Material screws | stainless steel |
| Material mounting bracket | PA |
| Material circlip | high-alloy stainless steel |
| Material protective cap | PC |
| Switching status indication | optical |
| Position indicator | yellow / red |
| Angle detection setting range | 0 to 90° |
| Storage temperature | -20 to 50 °C |
| Degree of protection | IP66, IP67 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Pollution degree | 3 |
| Weight | 0.55 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SRBK-CA4-YR90-N-1-P-M12 |
| EAN | 4052568622886 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Material | PA |
| Seal material | NBR |
| Housing material | PA |
| Protection rating | IP66 |
| Temperaturbereich | -20-70 °C |
| Temperature (max.) | 70 |
