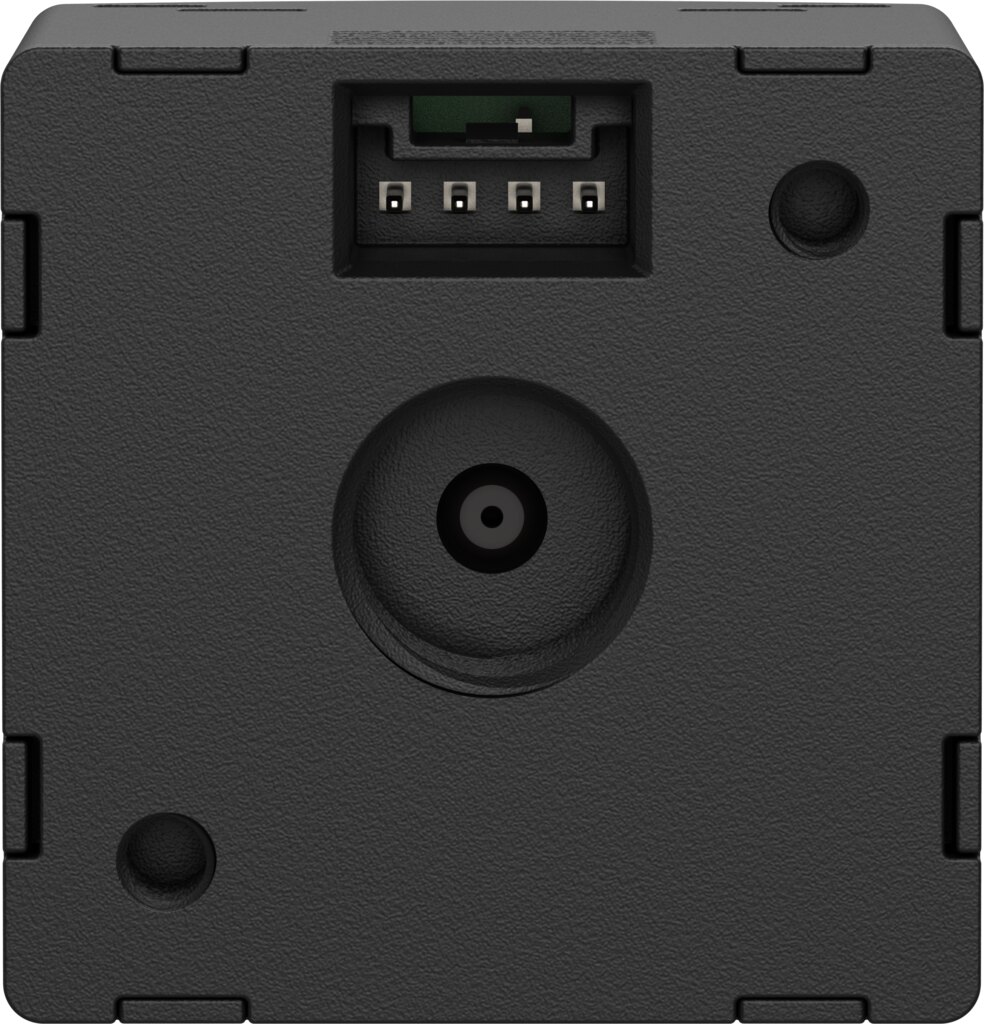

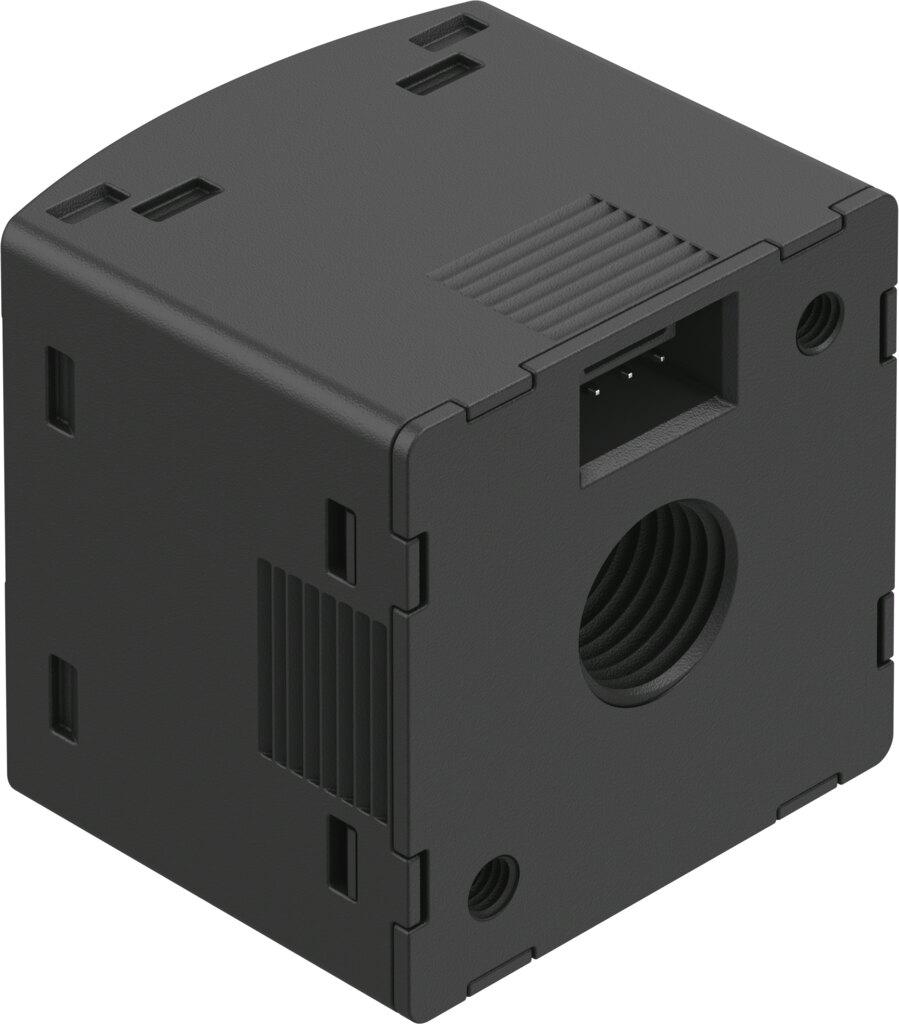

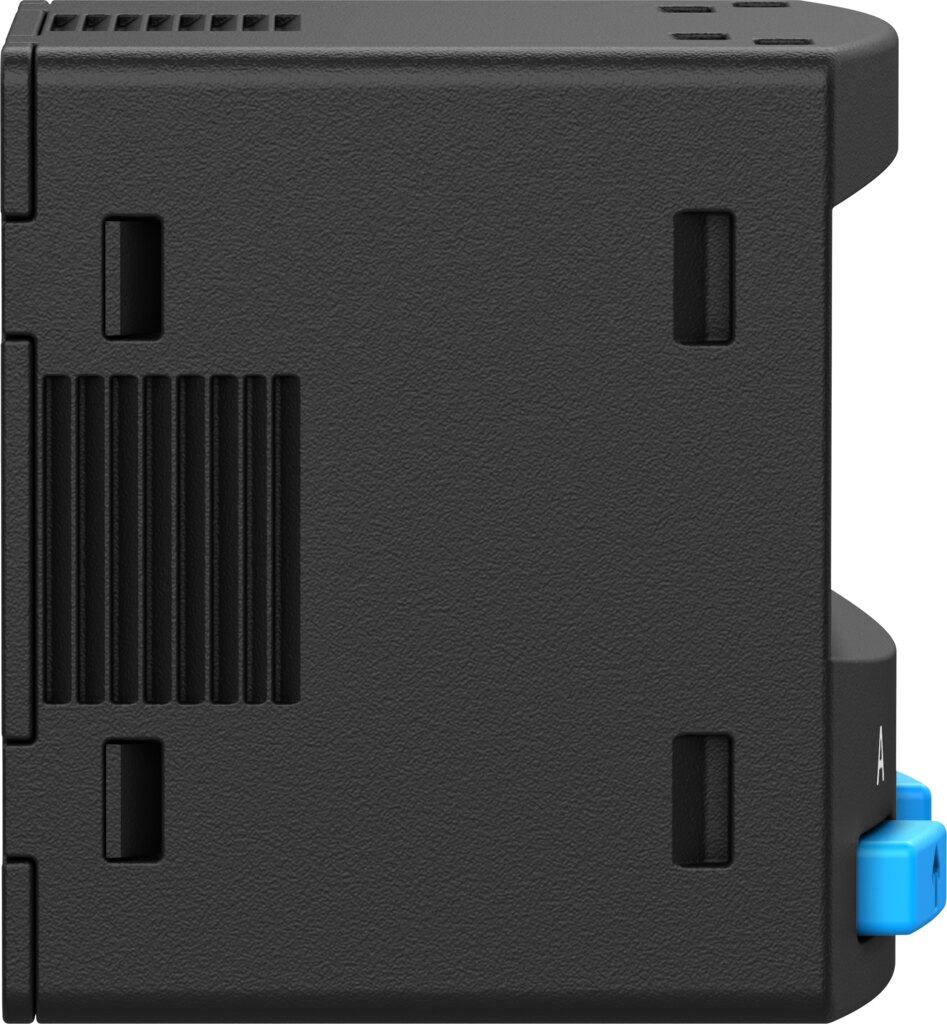

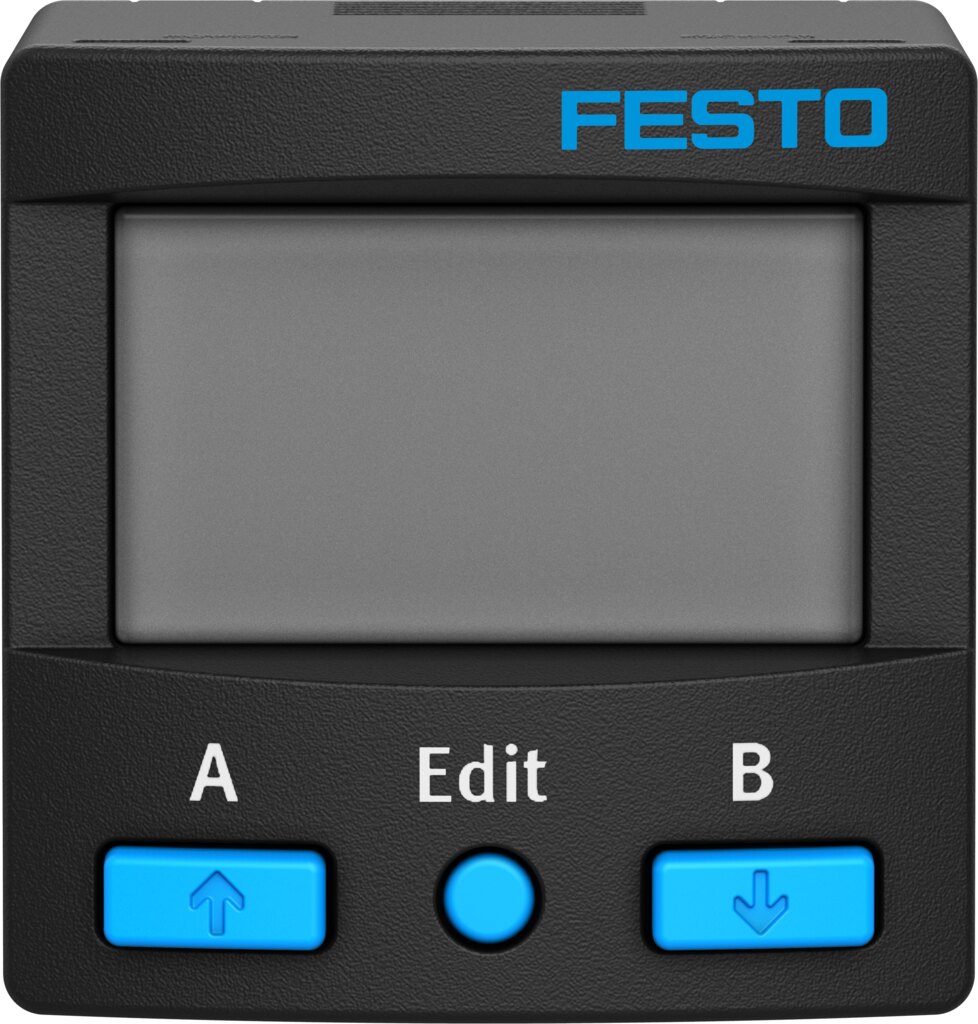

Pressure sensor with IO-Link R1/8 SPAN-P2R-R18M-PNLK-PNVBA-L1 - Festo 610405
The Festo pressure sensor SPAN-P2R-R18M-PNLK-PNVBA-L1 monitors pressure in pneumatic systems and switches via two switching outputs, PNP or NPN selectable. Besides the analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V, IO-Link is available as a digital interface. Pneumatic connection male thread R1/8, female thread M5, electrical connection 4-pin plug.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SPAN-P2R-R18M-PNLK-PNVBA-L1 is an electronic Festo pressure sensor with two switching outputs, PNP or NPN selectable.
Benefits
- Two switching outputs, PNP or NPN selectable
- Analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link
- Pneumatic connection male thread R1/8, female thread M5
- Electrical connection 4-pin plug
Applications
Order via Festo part number 610405.
Technical data
| Type | SPAN-P2R-R18M-PNLK-PNVBA-L1 |
|---|---|
| Festo part number | 610405 |
| Pneumatic connection | Male thread R1/8, Female thread M5 |
| Switching output | 2 x PNP or 2 x NPN, switchable |
| Analogue output | 0 - 10 V, 4 - 20 mA, 1 - 5 V |
| Protocol | IO-Link® |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, number of connections/cores | 4 |
| Weight | 0.09 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SPAN-P2R-R18M-PNLK-PNVBA-L1 |
| Zolltarifnummer | 90330090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | R 1/8 |
| Series | SPAN |
