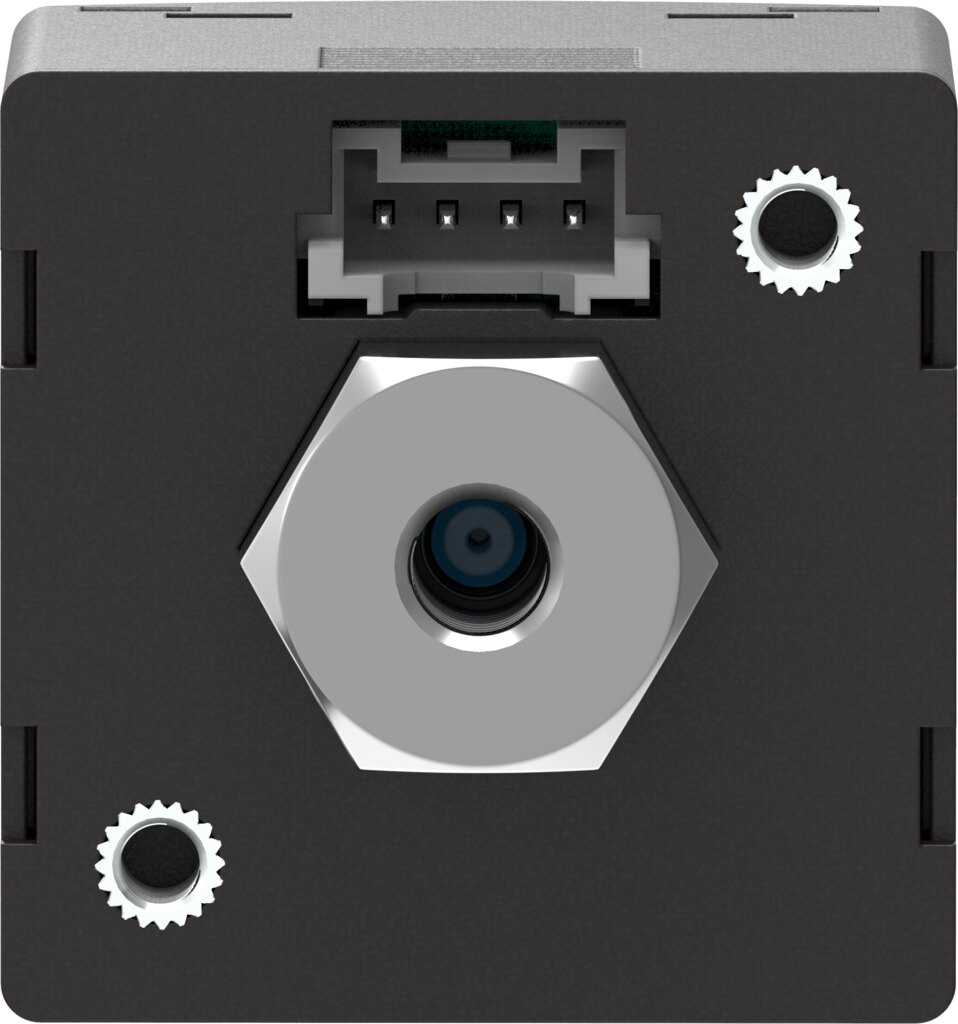

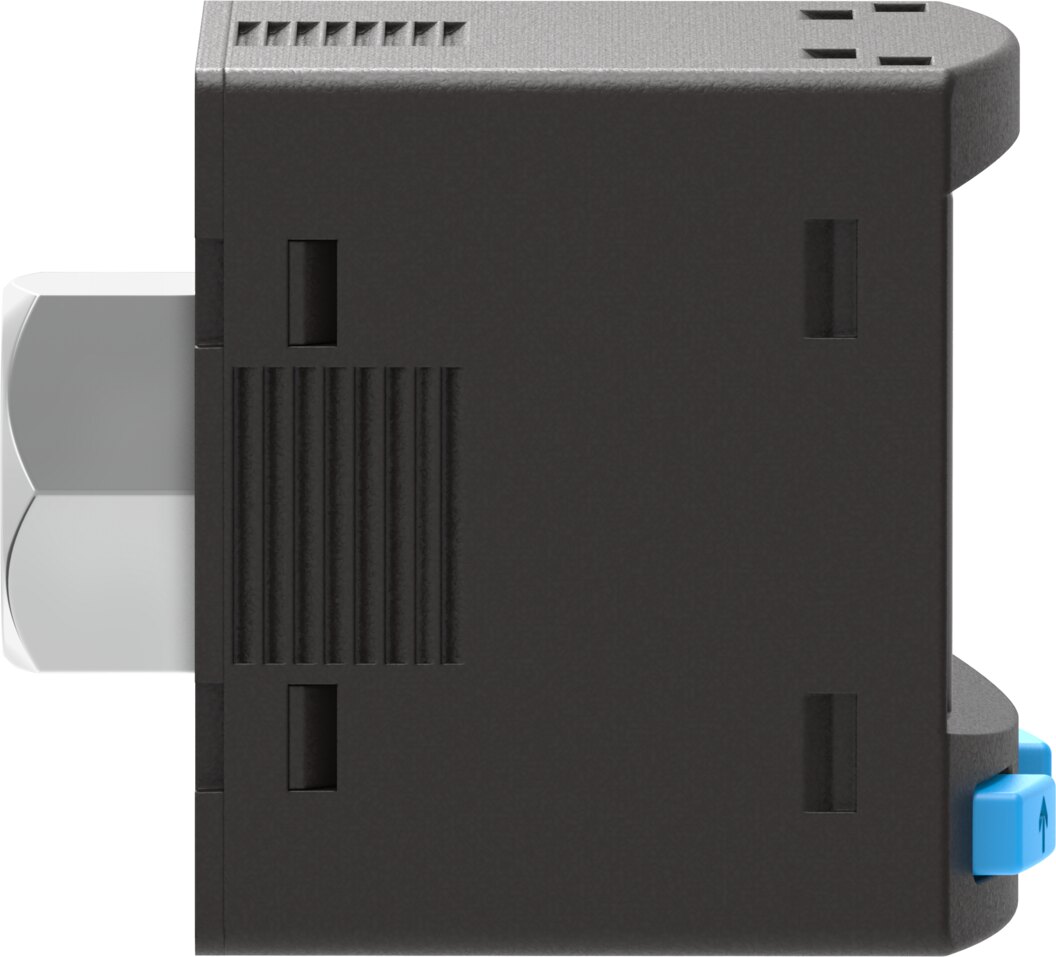

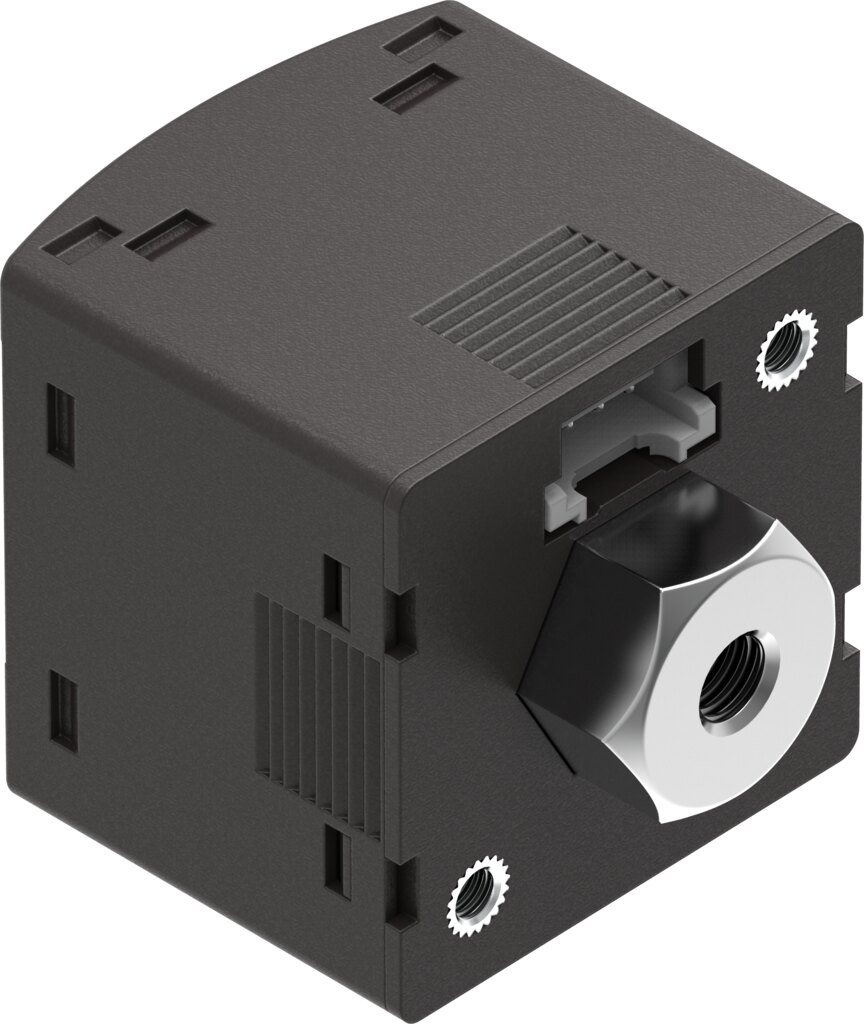

Pressure sensor -1 to 10 bar with IO-Link M5 SPAN-B11R-M5F-PNLK-PNVBA-L1 - Festo 610282
The Festo pressure sensor SPAN-B11R-M5F-PNLK-PNVBA-L1 monitors relative pressure within -1 to 10 bar and switches via two switching outputs, PNP or NPN selectable. The measured value is also available as an analogue signal (0 - 10 V, 4 - 20 mA, 1 - 5 V) and digitally via IO-Link. The pneumatic connection is female thread M5, the electrical connection a 4-pin plug.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo SPAN-B11R-M5F-PNLK-PNVBA-L1 keeps relative pressure between -1 and 10 bar under control.
Benefits
- Measuring range -1 to 10 bar, overload pressure 15 bar
- Accuracy ±1.5 %FS, repetition accuracy ±0.3 %FS
- Two switching outputs, PNP or NPN selectable, switching function window comparator, threshold value comparator, auto difference monitoring
- Analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link Device V 1.1
- Illuminated LCD, setting via IO-Link, teach-in, via display and buttons
- Degree of protection IP40, corrosion resistance class 2 (moderate corrosion stress)
Applications
Operating medium of the SPAN-B11R-M5F-PNLK-PNVBA-L1: compressed air to ISO 8573-1:2010 [7:4:4], inert gas, mounting front panel mounting, with thread, via wall/surface bracket. Because the range extends from -1 to +10 bar, the same sensor monitors vacuum and positive pressure. Supply voltage is 15 to 30 V DC.
Technical data
| Type | SPAN-B11R-M5F-PNLK-PNVBA-L1 |
|---|---|
| Festo part number | 610282 |
| Approval | RCM, c UL us - Listed (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC, To UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Note on materials | RoHS compliant |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Start value for pressure measuring range | -1 bar |
| End value for pressure measuring range | 10 bar |
| Max. overload pressure | 15 bar |
| Overload pressure | 15 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation possible |
| Media temperature | 0 to 50 °C |
| Ambient temperature | 0 to 50 °C |
| Accuracy in ± % FS | 1.5 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature coefficient in ± %FS/K | 0.05 %FS/K |
| Switching output | 2 x PNP or 2 x NPN, switchable |
| Switching function | Window comparator, Threshold value comparator, Auto difference monitoring |
| Switching element function | NC or NO, switchable |
| Max. output current | 100 mA |
| Analogue output | 0 - 10 V, 4 - 20 mA, 1 - 5 V |
| Max. load resistance current output | 500 Ohm |
| Min. load resistance voltage output | 20 kOhm |
| Short circuit current rating | Yes |
| Protocol | IO-Link |
| IO-Link, protocol version | Device V 1.1 |
| IO-Link, profile | Smart sensor profile |
| IO-Link, function classes | Binary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel |
| IO-Link, communication mode | COM2 (38.4 kBaud) |
| IO-Link, SIO mode support | Yes |
| IO-Link, Port class | A |
| IO-Link, process data width OUT | 0 bytes |
| IO-Link, process data width IN | 2 bytes |
| IO-Link, process data content IN | 14 bit PDV (pressure measurement value), 2 bit BDC (pressure monitoring) |
| IO-Link, minimum cycle time | 3 ms |
| IO-Link, data storage required | 500 byte |
| Operational voltage range DC | 15 to 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | Plug pattern L1J |
| Electrical connection 1, number of connections/cores | 4 |
| Type of mounting | Front panel mounting, With thread, Via wall/surface bracket |
| Mounting position | Any |
| Pneumatic connection | Female thread M5 |
| Product weight | 34 g |
| Material housing | Reinforced PA |
| Material in contact with the medium | Fluoro rubber, High-alloy stainless steel |
| Display type | Illuminated LCD |
| Setting options | IO-Link, Teach-in, Via display and buttons |
| Protection against tampering | IO-Link, PIN code |
| Setting range threshold value | 0 to 100 % |
| Setting range hysteresis | 0 to 90 % |
| Degree of protection | IP40 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Weight | 0.039 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SPAN-B11R-M5F-PNLK-PNVBA-L1 |
| EAN | 4052568552336 |
| Zolltarifnummer | 90262020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Measuring range max. [bar] | 10 |
| Medientemperatur [°C] | 0 bis 50 |
| Series | SPAN |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
