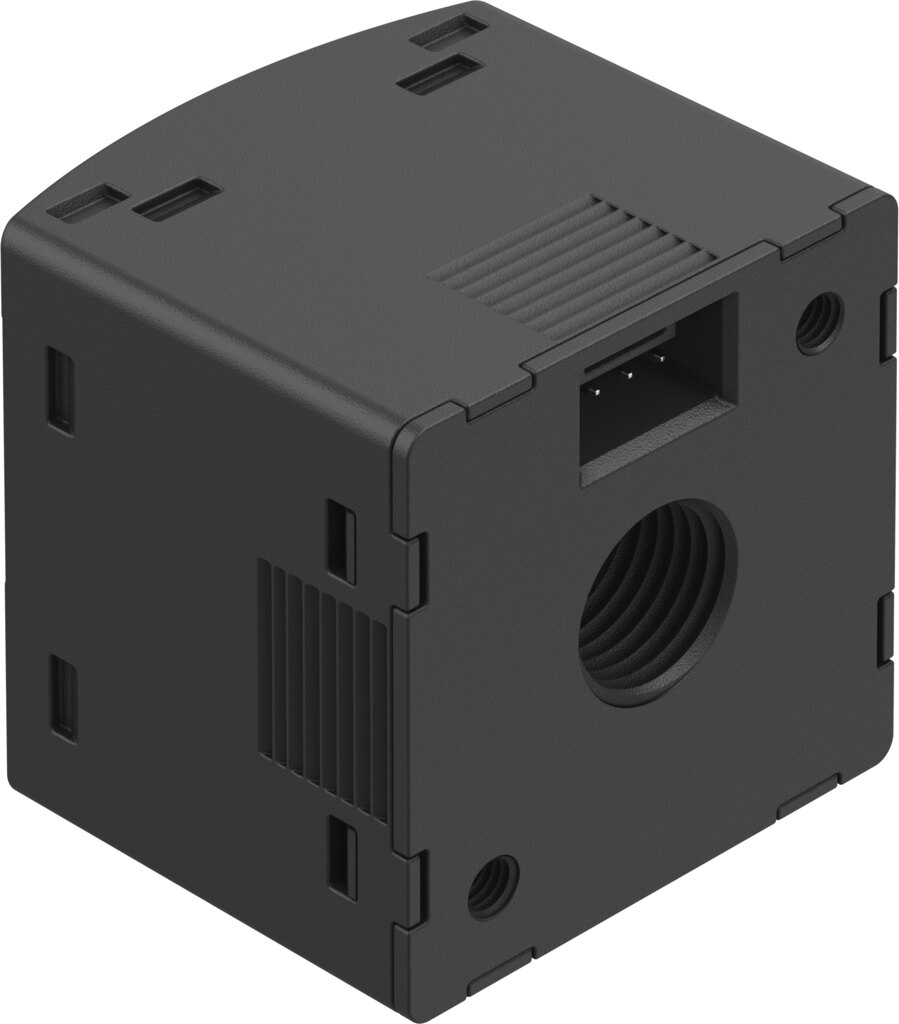

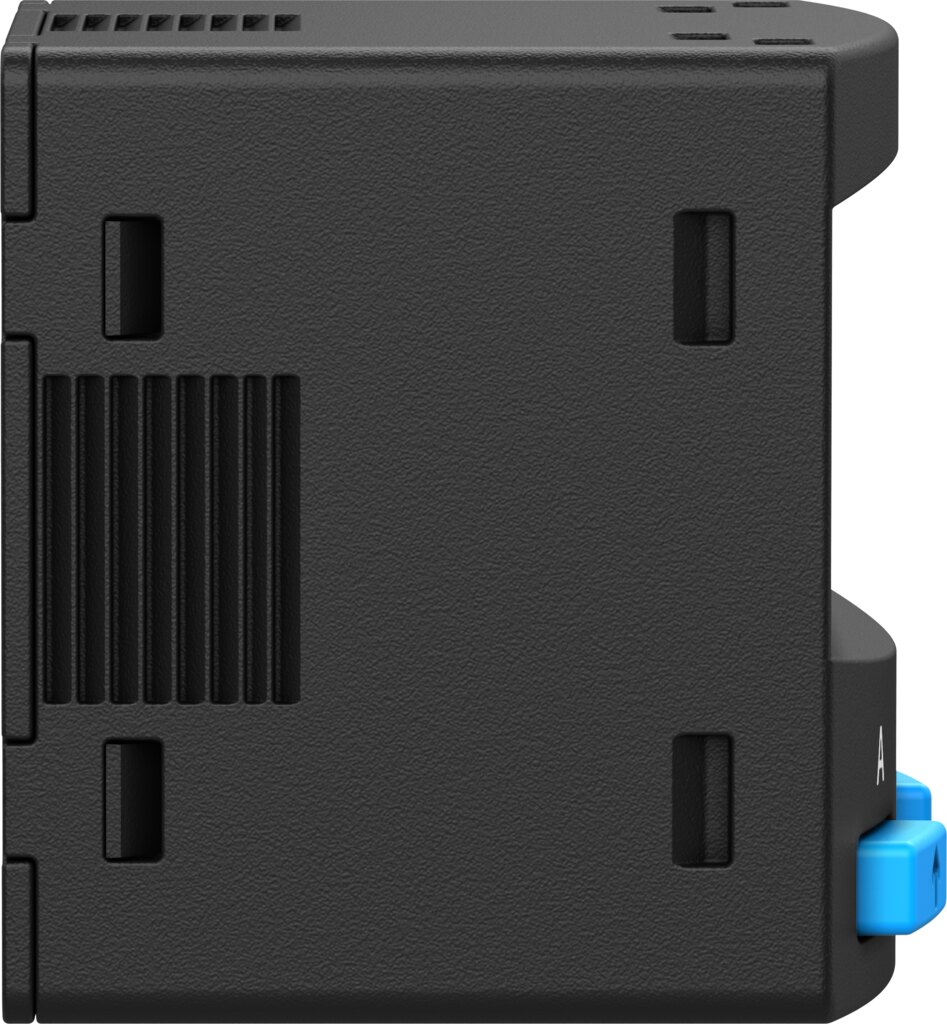

Pressure sensor -1 to 10 bar G1/8 SPAN-B-B11R-G18FPM-PN-L1 - Festo 8114762

Festo ✓ Original product Brand new

The Festo pressure sensor SPAN-B-B11R-G18FPM-PN-L1 monitors relative pressure within -1 to 10 bar and switches via a switching output, PNP/NPN switchable. The SPAN measures with ±1.5 %FS accuracy and repeats readings to ±0.3 %FS, display illuminated LCD. The pneumatic connection is female thread G1/8, the electrical connection a 4-pin plug.

Net
€88.08
excl. VAT
Item FES-8114762
Manufacturer no. SPAN-B-B11R-G18FPM-PN-L1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Where relative pressure has to be monitored within -1 to 10 bar, the SPAN-B-B11R-G18FPM-PN-L1 provides switching signal from a single device.

Benefits

  • Measuring range -1 to 10 bar, overload pressure 15 bar
  • Accuracy ±1.5 %FS, repetition accuracy ±0.3 %FS
  • Switching output PNP/NPN switchable, switching function window comparator, threshold value comparator

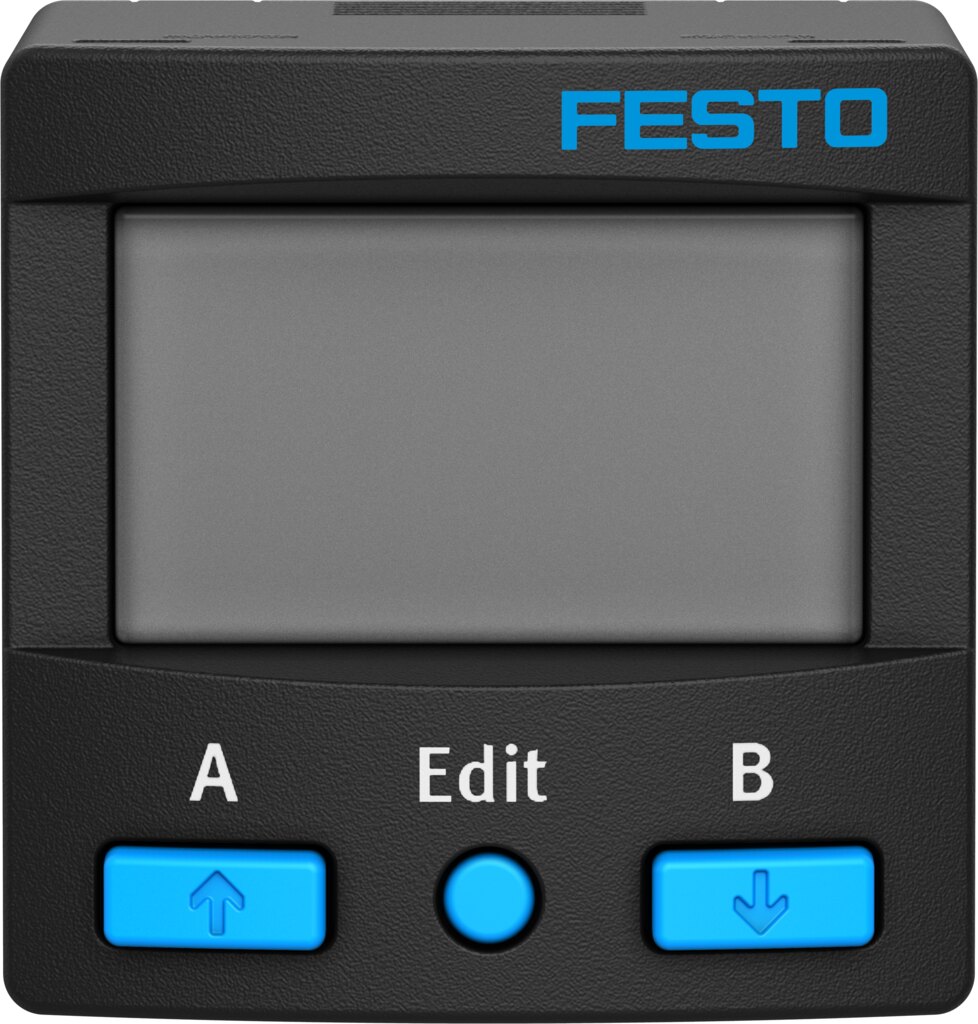

  • Illuminated LCD, setting via teach-in, via display and buttons
  • Degree of protection IP40, corrosion resistance class 2 (moderate corrosion stress)
  • Suitable for battery production with reduced Cu/Zn/Ni content (F1a)

Applications

Operating medium of the SPAN-B-B11R-G18FPM-PN-L1: compressed air to ISO 8573-1:2010 [7:4:4], inert gas, mounting front panel mounting, with thread, via wall/surface bracket. Because the range extends from -1 to +10 bar, the same sensor monitors vacuum and positive pressure. Supply voltage 10.8 to 30 V DC.

Technical data

TypeSPAN-B-B11R-G18FPM-PN-L1
Festo part number8114762
ApprovalRCM, c UL us - Listed (OL)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions
Note on materialsRoHS compliant
Measured variableRelative pressure
Measurement methodPiezoresistive pressure sensor
Start value for pressure measuring range-1 bar
End value for pressure measuring range10 bar
Max. overload pressure15 bar
Overload pressure15 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation possible
Media temperature0 to 50 °C
Ambient temperature0 to 50 °C
Accuracy in ± % FS1.5 %FS
Repetition accuracy in ± %FS0.3 %FS
Temperature coefficient in ± %FS/K0.1 %FS/K
Switching outputPNP/NPN, switchable
Switching functionWindow comparator, Threshold value comparator
Switching element functionNC or NO, switchable
Max. output current80 mA
Short circuit current ratingYes
Operational voltage range DC10.8 to 30 V
Reverse polarity protectionFor all electrical connections
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemPlug pattern L1J
Electrical connection 1, number of connections/cores4
Type of mountingFront panel mounting, With thread, Via wall/surface bracket
Mounting positionAny

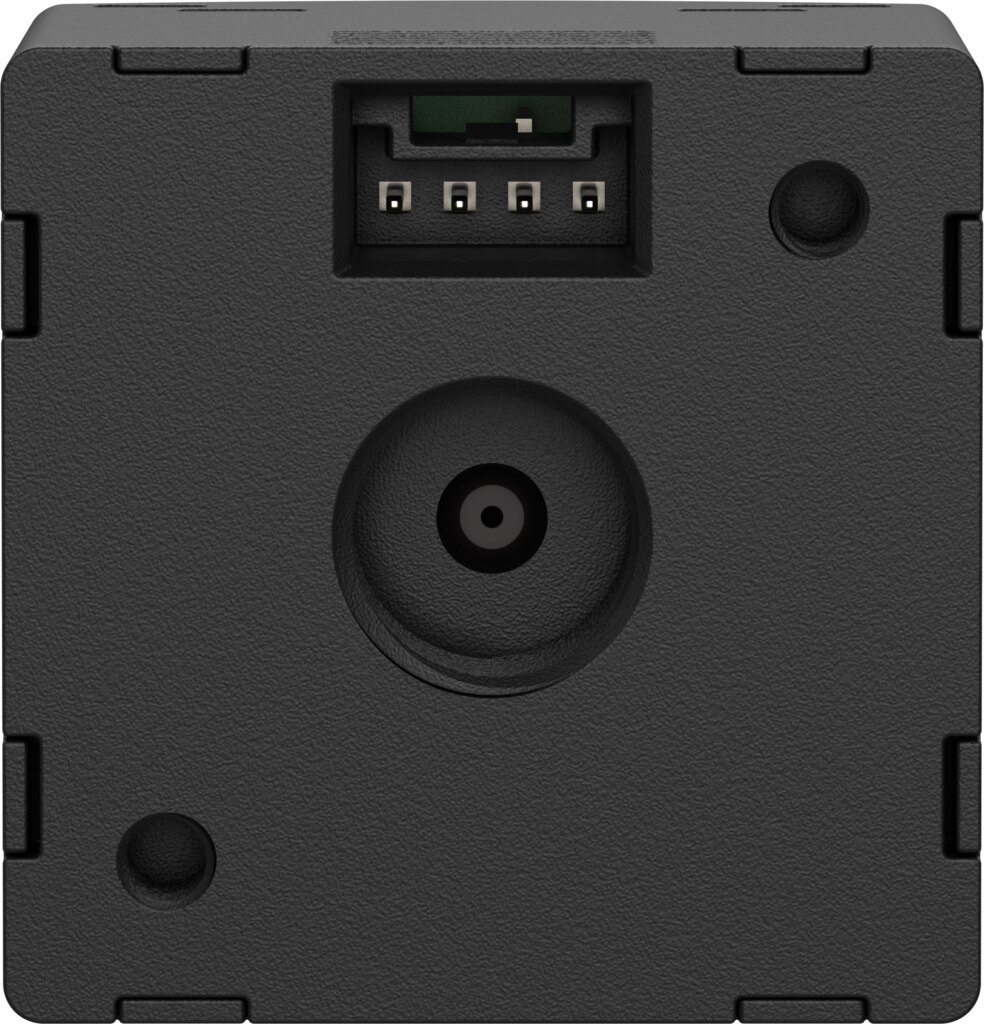

Pneumatic connectionFemale thread G1/8
Product weight21 g
Material housingReinforced PA
Material in contact with the mediumFluoro rubber, Reinforced PA
Display typeIlluminated LCD
Setting optionsTeach-in, Via display and buttons
Protection against tamperingPIN code
Setting range threshold value0 to 100 %
Setting range hysteresis0 to 90 %
Degree of protectionIP40
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Weight0.041 kg
ManufacturerFesto
Hersteller-NrSPAN-B-B11R-G18FPM-PN-L1
EAN4052568552206
Zolltarifnummer90262020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/8
Measuring range max. [bar]10
Medientemperatur [°C]0 bis 50
SeriesSPAN
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
