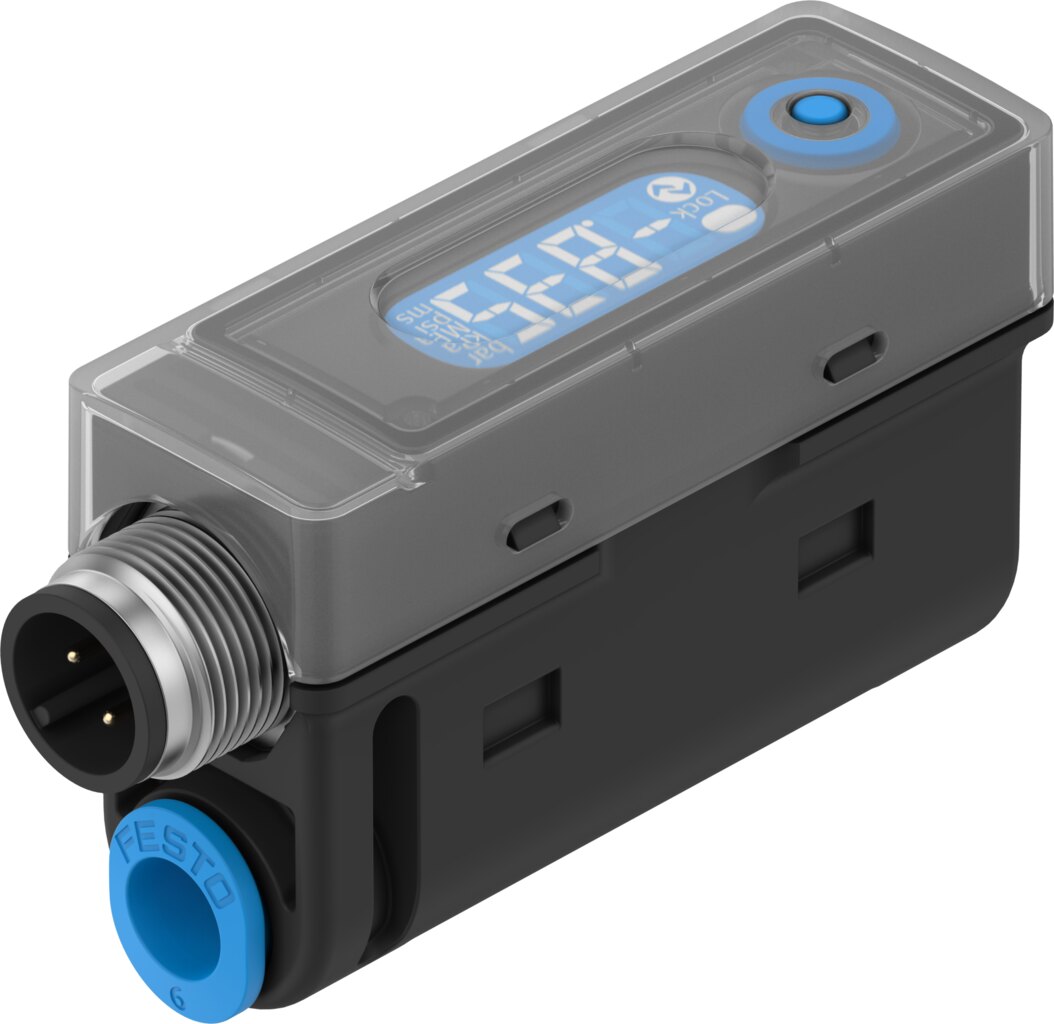

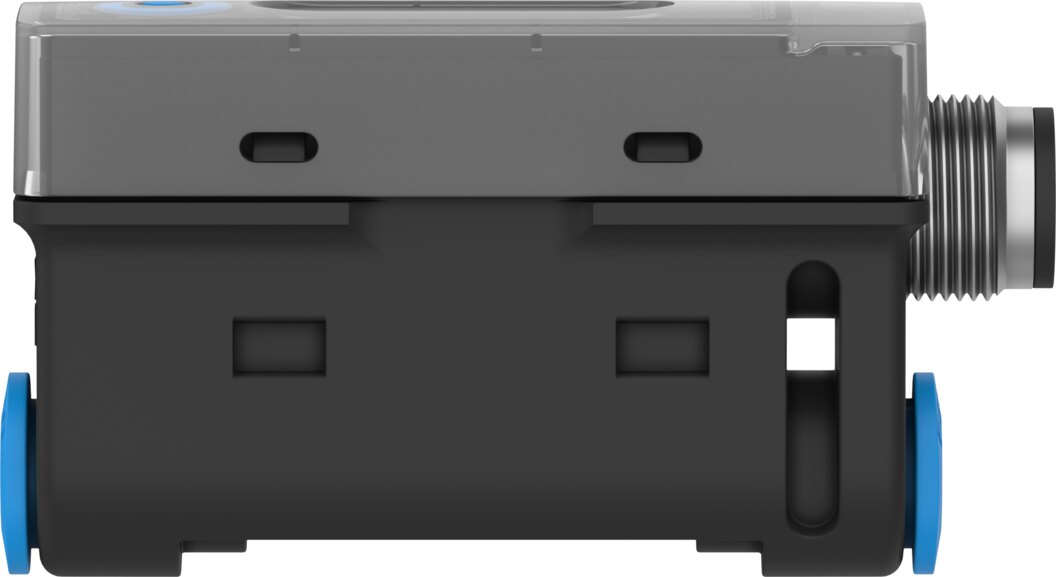

Vacuum pressure sensor 0 to -1 bar with IO-Link QS-6 SPAF-V1R-Q6-L-PNLK-VB-M12 - Festo 8181233

Festo ✓ Original product Brand new

Within 0 to -1 bar, the pressure sensor SPAF-V1R-Q6-L-PNLK-VB-M12 measures vacuum and signals limit values via a switching output, PNP/NPN switchable. Besides the analogue output 0 - 10 V, 1 - 5 V, IO-Link is available as a digital interface. The pneumatic connection is a QS-6 push-in connector, the electrical connection an M12x1 plug, 4-pin.

Net
€122.82
excl. VAT
Item FES-8181233
Manufacturer no. SPAF-V1R-Q6-L-PNLK-VB-M12
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Where vacuum has to be monitored within 0 to -1 bar, the SPAF-V1R-Q6-L-PNLK-VB-M12 provides switching signal and measured value from a single device.

Benefits

  • Measuring range 0 to -1 bar, overload pressure 5 bar
  • Accuracy ±1.5 %FS, repetition accuracy ±0.3 %FS
  • Switching output PNP/NPN switchable, switching function window comparator, threshold value comparator, threshold value with variable hysteresis
  • Analogue output 0 - 10 V, 1 - 5 V and IO-Link
  • Blue illuminated LCD, setting via IO-Link, teach-in, via display and buttons
  • Degree of protection IP65, corrosion resistance class 2 (moderate corrosion stress)

Applications

Operating medium of the SPAF-V1R-Q6-L-PNLK-VB-M12: compressed air to ISO 8573-1:2010 [7:4:4], inert gas, mounting with accessories. Typical tasks include vacuum monitoring on suction cups and vacuum generators. Supply voltage 15 to 30 V DC.

Technical data

TypeSPAF-V1R-Q6-L-PNLK-VB-M12
Festo part number8181233
ApprovalRCM
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Note on materialsRoHS compliant
Measured variableRelative pressure
Measurement methodPiezoresistive pressure sensor
Start value for pressure measuring range0 bar
End value for pressure measuring range-1 bar
Overload pressure5 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumEster oil below 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation possible
Media temperature0 to 50 °C
Ambient temperature0 to 50 °C
Accuracy in ± % FS1.5 %FS
Repetition accuracy in ± %FS0.3 %FS
Temperature coefficient in ± %FS/K0.05 %FS/K
Switching outputPNP/NPN, switchable
Switching functionWindow comparator, Threshold value comparator, Threshold value with variable hysteresis
Switching element functionNC or NO, switchable
Switch-on time3 ms
Switch-off time3 ms
Max. output current100 mA
Voltage drop1.6 V
Analogue output0 - 10 V, 1 - 5 V
Output characteristic curve start value0 V
Output characteristic curve end value10 V
Accuracy analogue output in ± %FS1.5 %FS
Linearity error in ± %FS0.3 %FS
Rise time6 ms
Min. load resistance voltage output20 kOhm
Display range start value0 %FS
Display range end value100 %FS
Short circuit current ratingYes
Overload protectionAvailable
ProtocolIO-Link
IO-Link, revision IDV1.1
IO-Link, device profileFirmware update, Function locator, Function Product URI, Function quantity detection, Smart Sensor - SSP 4.1.1
IO-Link, transmission rateCOM3
IO-Link, SIO mode supportYes
IO-Link, port typeClass A
IO-Link, process data length output0 bit
IO-Link, process data length input32 bit
IO-Link, process data content INPressure measured value 16 bit MDC, Pressure monitoring 2 bit SSC
IO-Link, service data content INTemperature 16 bit
IO-Link, minimum cycle time0.9 ms
IO-Link, data storage required500 byte
Operational voltage range DC15 to 30 V
Reverse polarity protectionFor all electrical connections
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of connections/cores4
Electrical connection 1, type of mountingScrew-type lock, Not rotatable
Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock
Material connector housingHigh-alloy stainless steel
Type of mountingWith accessories
Mounting positionAny
Pneumatic connectionQS-6
Product weight30 g
Material housingReinforced PA
Material in contact with the mediumStainless steel, NBR, Reinforced PA
Display typeBacklit blue LCD
Ready status indicationThrough backlighting
Setting optionsIO-Link, Teach-in, Via display and buttons
Protection against tamperingIO-Link, PIN code
Setting range threshold value0 to 100 %
Setting range hysteresis0 to 90 %
Degree of protectionIP65
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Weight0.032 kg
ManufacturerFesto
Hersteller-NrSPAF-V1R-Q6-L-PNLK-VB-M12
EAN4052568650131
Zolltarifnummer90262020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Medientemperatur [°C]0 bis 50
Protection ratingIP65
Temperaturbereich0-50 °C
Temperature (max.)50
