Assortment box, plug connectors »universal short« - Riegler 148955

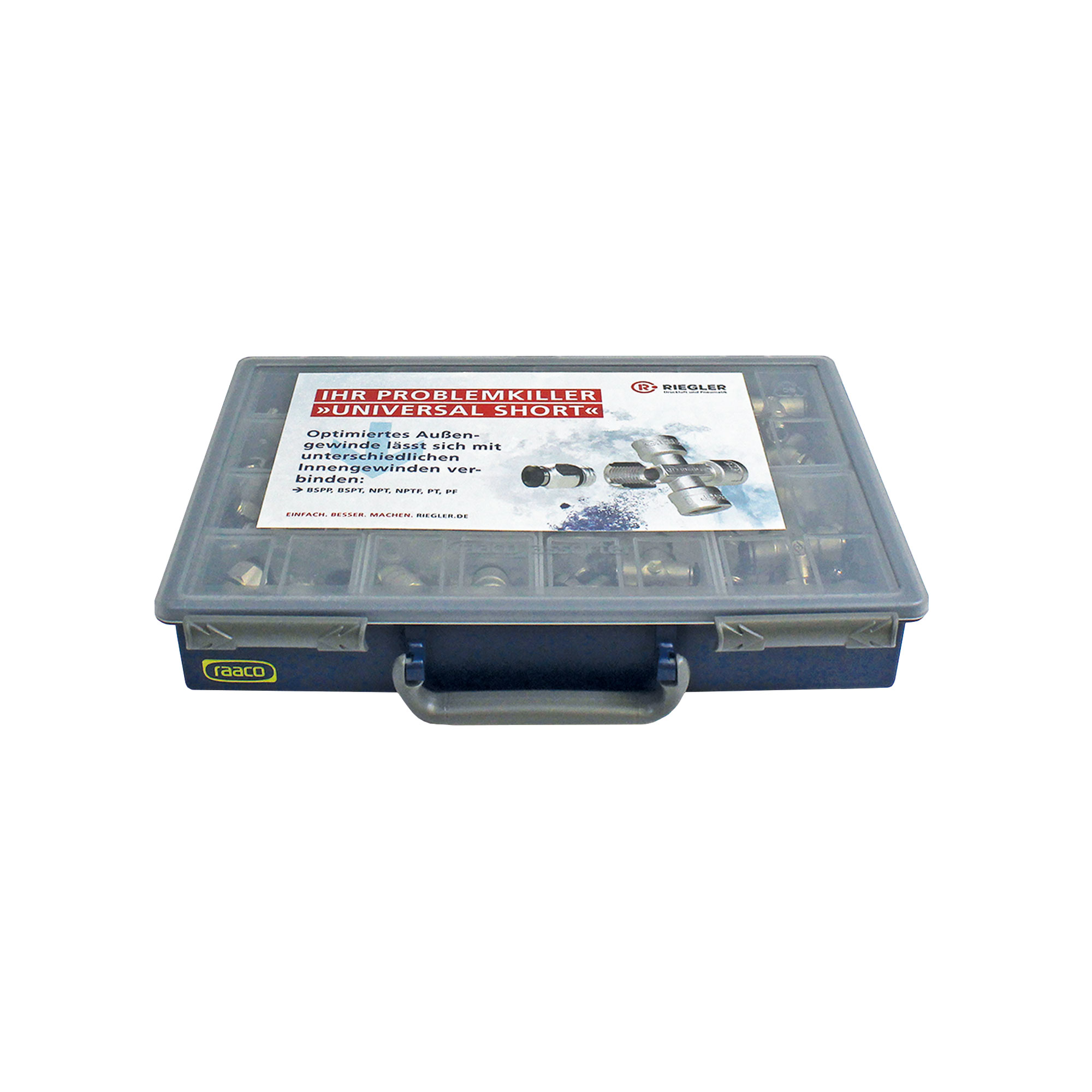

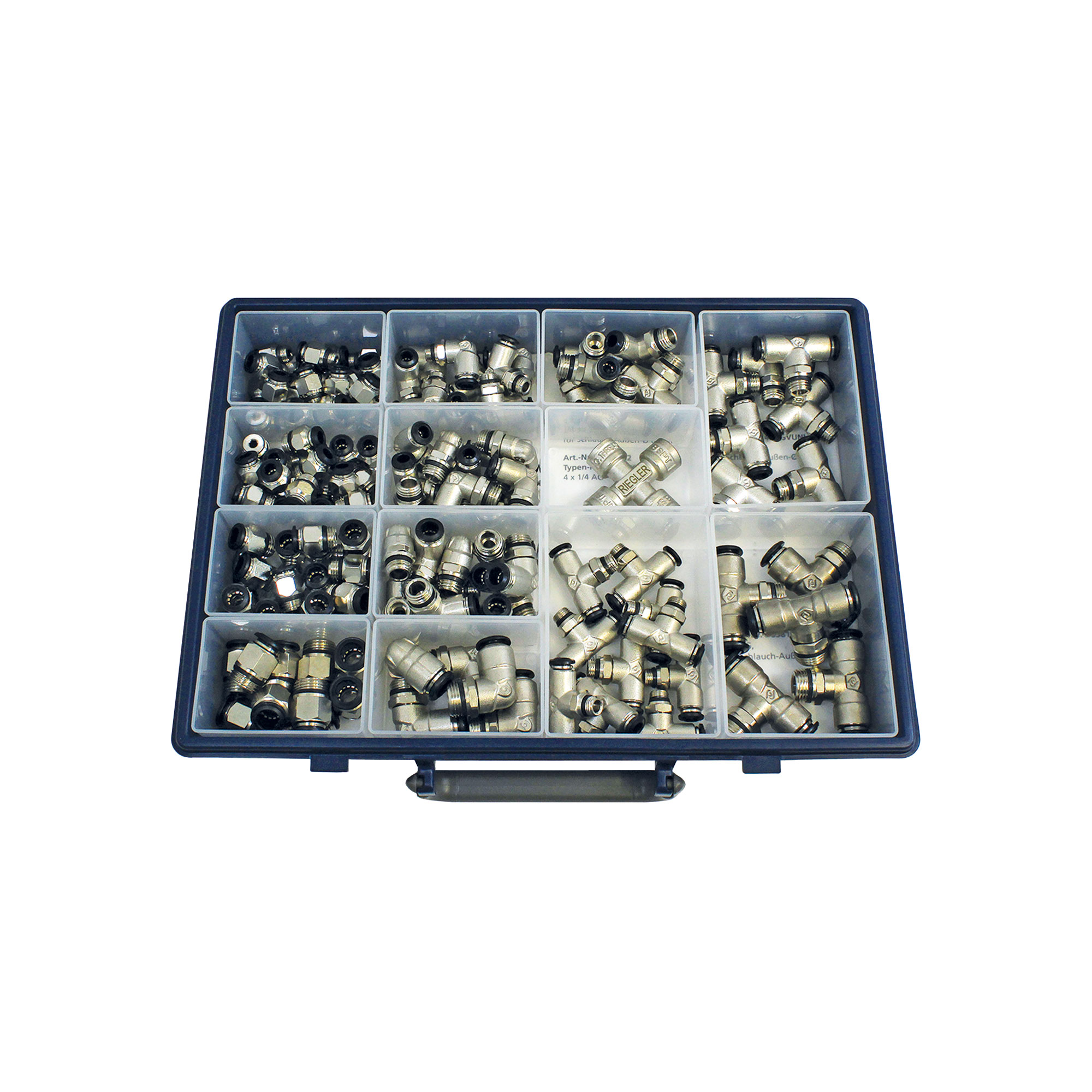

Assortment box, plug connectors, push-in fittings »universal short« Easy to handle, robust and high-quality assortment box made of plastic with a reduced assortment of the most common items in our »universal short« quick connectors. These can be used to combine a variety of thread types and hose connections with each other. A total of 13 different types of small parts are clearly presented in 12 plastic boxes. An insert under the boxes shows the article numbers, type numbers and the most important features of the items contained. Equipment: 70 male connector, G 1/8-6, G 1/4-6, G 1/4-8, G 1/4-10, G 3/8-10 35 male branch elbow G 1/8-6, G 1/4-6, G 1/4-8, G 3/8-10 29 male branch tee G 1/8-6, G 1/4-6, G 1/4-8, G 3/8-10 1 X-distributor

Technical data

Standards and origin

• Customs tariff number: 74122000
• Country of origin: IT

About Boxed sets

An assortment box holds the most common small parts of a range in a plastic case with separate compartments, so push-in fittings or brass turned parts are at hand right at the assembly bench. Instead of many single orders, one box covers the usual thread and hose combinations of a series. Contents range from 12 to 31 different items, rated for working pressures up to 16 or 25 bar.

What matters when choosing

• Series: boxes are available for the Blue series, for click-clock and for universal short. What matters is which series is already installed, because only then does the content match the existing stock.
• Material: available as plastic or nickel-plated brass, as nickel-plated brass, as brass CW614N and as electroplated nickel-plated brass CW614N. The brass versions are the heavier option and take higher mechanical loads.
• Max. working pressure: 16 or 25 bar depending on the contents. The boxes with brass turned parts sit at the top of that range, which decides the choice on systems with higher line pressure.
• Medium: some contents are listed for compressed air only, others for compressed air and water. Anyone stocking water lines has to check this figure.
• Operating temperature: the lower limit is -20 °C, the upper limit runs from 80 to 150 °C depending on the item. Warm environments therefore narrow the choice to the boxes rated accordingly.

Typical applications

• Initial equipment for an assembly or maintenance workstation
• Service vehicles and mobile tool kits for field work
• Replenishing the small parts store in production
• Test rigs and prototype work where fittings are rebuilt frequently
• Training workshops with changing setups

The 7 boxes are filled with parts in plastic or nickel-plated brass, in brass CW614N and in electroplated nickel-plated brass CW614N, sealed with NBR. Production is in China and Italy.
