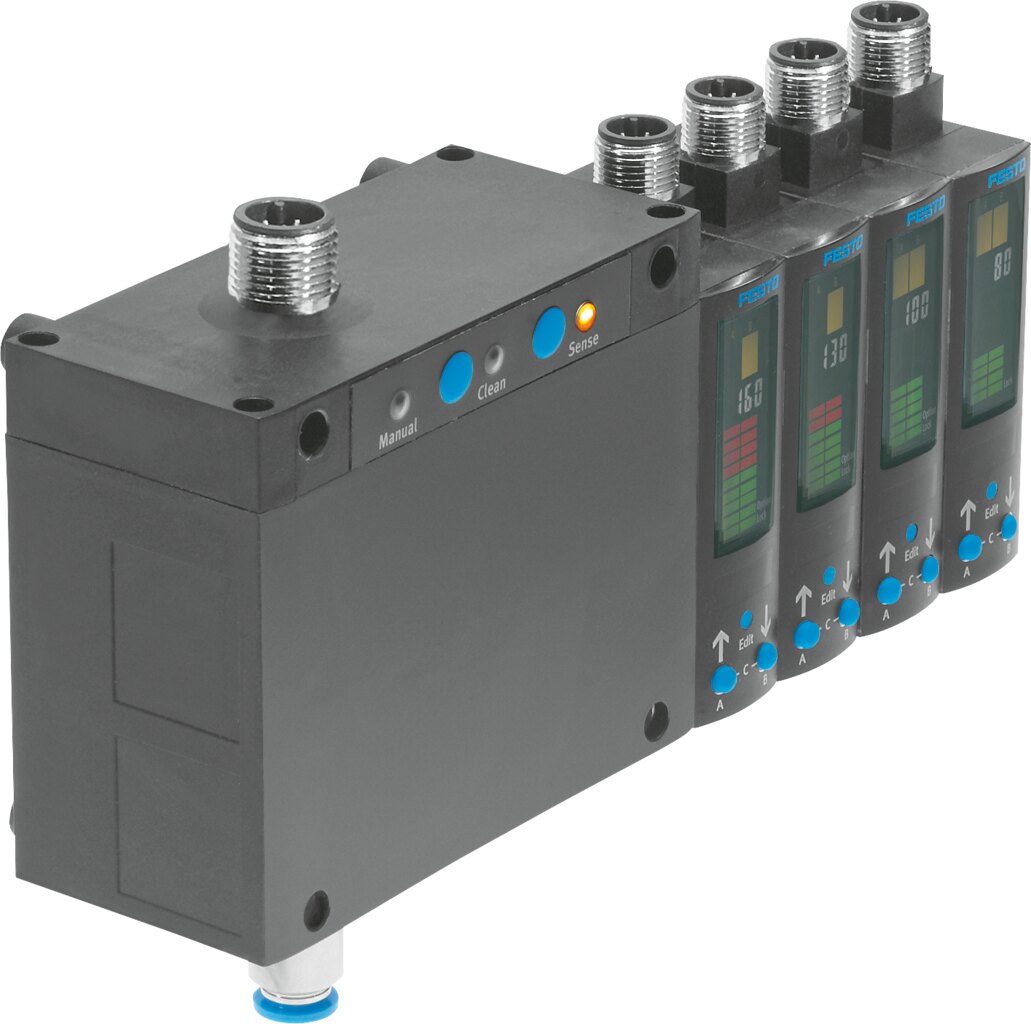

Air gap sensor 20 to 200 µm PNP/NPN switchable IO-Link analogue 0 - 10 V M12x1 plug SOPA-CM1H-R1-HQ6-PNLK-VB-M12 - Festo 8093818
Measures distances of 20 to 200 µm pneumatically with ± 2.5 µm repetition accuracy, typically for checking workpiece seating. Outputs PNP/NPN switchable, IO-Link, analogue 0 - 10 V, supply pressure 0.8 to 1.6 bar, QS-6 port. IP65 protection.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo air gap sensor SOPA-CM1H-R1-HQ6-PNLK-VB-M12 measures the gap to the workpiece pneumatically, sensing range 20 to 200 µm. The SOPA-CM1H-R1-HQ6-PNLK-VB-M12 shows values and switching points on the multicolour illuminated LCD.
Benefits
- ± 2.5 µm repetition accuracy for tight seating tolerances
- 0.8 to 1.6 bar supply pressure at 4 to 7 bar operating pressure
- Window comparator, threshold value with variable hysteresis, adjustable
- IO-Link for measured value, supply pressure monitoring and parameterisation
- Electronic interlock against tampering
Applications
A typical task is checking workpiece seating in the fixtures of machining centres before machining starts. Operating medium compressed air to ISO 8573-1:2010 [7:4:4].
Technical data
| Feature | Value |
|---|---|
| Type | SOPA-CM1H-R1-HQ6-PNLK-VB-M12 |
| Festo part number | 8093818 |
| Approval | RCM mark, c UL us - Recognized (OL) |
| CE mark (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| KC mark | KC-EMV |
| Note on materials | RoHS-compliant |
| Detected variable | distance |
| Measuring principle | pneumatic |
| Sensing range | 20 to 200 µm |
| Operating pressure | 4 to 7 bar |
| Supply pressure | 0.8 to 1.6 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (then required for further operation) |
| Ambient temperature | 0 to 50 °C |
| Repetition accuracy in ± µm | 2.5 µm |
| Switching output | PNP/NPN switchable |
| Switching function | window comparator, threshold value with variable hysteresis |
| Switching element function | N/C or N/O, switchable |
| Max output current | 100 mA |
| Analogue output | 0 - 10 V |
| Distance characteristic, start value | 0 µm |
| Distance characteristic, end value | 300 µm |
| Rise time | 22 ms |
| Min load resistance, voltage output | 20 kOhm |
| Short circuit protection | yes |
| Protocol | IO-Link |
| IO-Link, protocol version | Device V 1.1 |
| IO-Link, profile | Smart Sensor Profile |
| IO-Link, function classes | process data variable (PDV), identification, diagnostics, teach channel, switching signal channel (SSC) |
| IO-Link, communication mode | COM2 (38.4 kBaud) |
| IO-Link, SIO mode support | yes |
| IO-Link, port class | A |
| IO-Link, process data width OUT | 0 Byte |
| IO-Link, process data width IN | 2 Byte |
| IO-Link, process data content IN | 1-bit SSC (supply pressure monitoring), 10-bit PDV (distance), 2-bit SSC (distance monitoring) |
| IO-Link, service data content IN | 14-bit supply pressure |
| IO-Link, minimum cycle time | 3 ms |
| IO-Link, data storage required | 500 byte |
| Operating voltage range DC | 22.8 to 26.4 V |
| Max current consumption | 250 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection, connection type | plug |
| Electrical connection, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection, number of pins/wires | 5 |
| Electrical connection, type of mounting | screw-type lock, not rotatable |
| Electrical connection, compatible type of mounting | compatible with rotatable screw-type lock |
| Electrical connection, connection pattern | 00991172 |
| Type of mounting | with through-hole, on DIN rail |
| Pneumatic connection | QS-6 |
| Housing material | reinforced PA |
| Display type | illuminated LCD, multicolour |
| Setting options | IO-Link, teach-in, via display and buttons |
| Protection against tampering | electronic interlock |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Weight | 0.6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SOPA-CM1H-R1-HQ6-PNLK-VB-M12 |
| EAN | 4052568462246 |
| Zolltarifnummer | 90318020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Medium | Compressed air |
| Norm | DIN EN 61076-2-101 |
| Series | SOPA |
| Betriebsdruck max [bar] | 7 |
| Protection rating | IP65 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
