Through-beam sensor operating range up to 12000 mm, red LED light, IO-Link SOOE-TB-R-PNLK-T - Festo 8075665
The through-beam sensor SOOE-TB-R-PNLK-T detects objects between transmitter and receiver at up to 12000 mm using red LED light. Push-pull switching output (switchable, PNP dark switching, NPN light switching), plus IO-Link.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo through-beam sensor SOOE-TB-R-PNLK-T detects objects between transmitter and receiver at up to 12000 mm using red LED light. It comes in a block design with a housing made of PC, PMMA.
Benefits
- Operating range up to 12000 mm, light spot max 65 mm at 1000 mm
- Degree of protection IP65, IP67, IP69K, ambient temperature -40 to 60 °C
- Push-pull switching output, switching frequency up to 1000 Hz
- M8x1 plug (3-pin), operating voltage 10 to 30 V DC
- IO-Link interface, setting via teach-in, IO-Link or potentiometer
Application
Typical tasks include presence checks, pass-through monitoring and counting parts on conveyor lines. Mounting is via through-holes for M3 screws.
Technical data
| Type | SOOE-TB-R-PNLK-T |
|---|---|
| Design | Block design |
| Conforms to standard | EN 60947-5-2 |
| Approval | RCM, c UL us - Listed (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS regulations |
| Certificate issuing authority | UL E232949 |
| Note on materials | RoHS compliant |
| Measuring principle | Optoelectronic |
| Detection method | Through-beam sensor, transmitter, receiver |
| Type of light | Red, LED |
| Maximum light spot | 65 mm at 1000 mm |
| Operating distance | 0 to 12000 mm |
| Ambient temperature | -40 to 60 °C |
| Switching output | Push-pull |
| Switching element function | Switchable, PNP dark switching, NPN light switching |
| Maximum switching frequency | 1000 Hz |
| Maximum output current | 100 mA |
| Voltage drop | 0 to 1.5 V |
| Timer function | Via IO-Link |
| Short circuit current rating | Pulsed |
| Protocol | IO-Link |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, communication mode | COM2 (38.4 kBaud) |
| IO-Link, SIO-Mode support | Yes |
| IO-Link, Port class | A |
| IO-Link, Process data length OUT | 1 bit (Emitter), 2 bit (Receiver) |
| IO-Link, Process data content OUT | 1 bit (emitter disable), 1 bit (Hold) |
| IO-Link, Process data length IN | 2 bit (Receiver) |
| IO-Link, Process data content IN | 1 bit (Stability Alarm), 1 bit SSC (Switching Signal) |
| IO-Link, Min. cycle time | 2.3 ms |
| IO-Link, Data storage required | 2000 byte |
| Operational voltage range DC | 10 to 30 V |
| Residual ripple | 10% |
| No-load supply current | 14 mA |
| Reverse polarity protection | For all electrical connections |

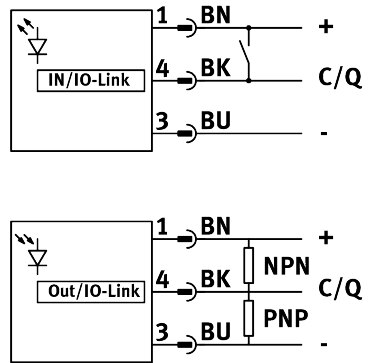

| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Material electrical contact | Gold-plated brass |
| Type of mounting | Via through-hole for M3 screw |
| Tightening torque | 0.8 Nm |
| Mounting position | Any |
| Product weight | 20 g |
| Material housing | PC, PMMA |
| Ready status indication | Green LED |
| Switching status indication | Yellow LED |
| Function reserve indication | Flashing yellow LED |
| Setting options | IO-Link, poti, Teach-in |
| Degree of protection | IP65, IP67, IP69K |
| Insulation voltage | 500 V |
| Immunity to surge | 1 kV |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Pollution degree | 3 |
| Weight | 0.029 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SOOE-TB-R-PNLK-T |
| EAN | 4052568446376 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Protection rating | IP65 |
| Temperaturbereich | -40-60 °C |
| Temperature (max.) | 60 |
