Through-beam sensor operating range up to 2000 mm, red LED light SOOD-TB-R-PN - Festo 8075656

Festo ✓ Original product Brand new

The through-beam sensor SOOD-TB-R-PN detects objects between transmitter and receiver at up to 2000 mm using red LED light. Push-pull switching output (pNP dark switching, NPN light switching). M8x1 cable with plug (3-pin), degree of protection IP65, IP67 and ambient temperature -25 to 60 °C.

Net
€153.00
excl. VAT
Item FES-8075656
Manufacturer no. SOOD-TB-R-PN
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo through-beam sensor SOOD-TB-R-PN detects objects between transmitter and receiver at up to 2000 mm using red LED light. It comes in a block design with a housing made of PC, TPE-U(PU).

Benefits

  • Operating range up to 2000 mm, light spot max 150 mm at 2000 mm
  • M8x1 cable with plug (3-pin), operating voltage 10 to 30 V DC
  • Degree of protection IP65, IP67, ambient temperature -25 to 60 °C
  • Push-pull switching output, switching frequency up to 800 Hz

Application

Typical tasks include presence checks, pass-through monitoring and counting parts on conveyor lines. Mounting is via through-holes.

Technical data

TypeSOOD-TB-R-PN
DesignBlock design
Conforms to standardEN 60947-5-2
ApprovalRCM, c UL us - Recognized (OL)
CE mark (see declaration of conformity)To EU EMC Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations
Certificate issuing authorityUL E232949
Note on materialsRoHS compliant
Measuring principleOptoelectronic
Detection methodThrough-beam sensor, transmitter, receiver
Type of lightRed, LED
Maximum light spot150 mm at 2000 mm
Operating distance0 to 2000 mm
Ambient temperature-25 to 60 °C

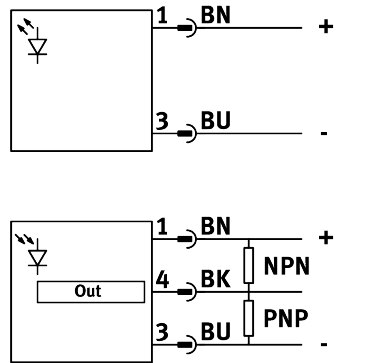

Switching outputPush-pull
Switching element functionPNP dark switching, NPN light switching
Maximum switching frequency800 Hz
Maximum output current50 mA
Voltage drop0 to 1.5 V
Short circuit current ratingPulsed
Operational voltage range DC10 to 30 V
Residual ripple10%
No-load supply current11 mA
Reverse polarity protectionFor all electrical connections
Electrical connection 1, connection typeCable with plug
Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
Electrical connection 1, number of connections/cores3
Electrical connection 1, type of mountingScrew-type lock with AF9
Material electrical contactGold-plated brass
Cable length0.15 m
Cable characteristicStandard
Material cable sheathTPE-U(PUR)
Type of mountingWith through-hole
Tightening torque0.5 Nm
Mounting positionAny
Product weight20 g
Material housingPC, TPE-U(PU)
Ready status indicationGreen LED
Switching status indicationYellow LED
Function reserve indicationFlashing yellow LED
Degree of protectionIP65, IP67
Insulation voltage500 V
Immunity to surge1 kV
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Pollution degree3
Weight0.06 kg
ManufacturerFesto
Hersteller-NrSOOD-TB-R-PN
EAN4052568446284
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Protection ratingIP65
Temperature (max.)60
