Through-beam sensor operating range up to 10000 mm, red laser light SOOD-TB-L-PN - Festo 8075661
The through-beam sensor SOOD-TB-L-PN detects objects between transmitter and receiver at up to 10000 mm using red laser light. Push-pull switching output (pNP dark switching, NPN light switching). M8x1 cable with plug (3-pin), degree of protection IP65, IP67 and ambient temperature -20 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo through-beam sensor SOOD-TB-L-PN detects objects between transmitter and receiver at up to 10000 mm using red laser light. It comes in a block design with a housing made of PC, TPE-U(PU).
Benefits
- Operating range up to 10000 mm, light spot max 20 mm at 10000 mm
- M8x1 cable with plug (3-pin), operating voltage 10 to 30 V DC
- Laser class 1
- Degree of protection IP65, IP67, ambient temperature -20 to 60 °C
- Push-pull switching output, switching frequency up to 2000 Hz
Application
Typical tasks include presence checks, pass-through monitoring and counting parts on conveyor lines. Mounting is via through-holes.
Technical data
| Type | SOOD-TB-L-PN |
|---|---|
| Design | Block design |
| Conforms to standard | EN 60947-5-2 |
| Approval | RCM, c UL us - Recognized (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS regulations |
| Certificate issuing authority | UL E232949 |
| Note on materials | RoHS compliant |
| Measuring principle | Optoelectronic |
| Detection method | Through-beam sensor, transmitter, receiver |
| Type of light | Laser, red |
| Maximum light spot | 20 mm at 10000 mm |
| Operating distance | 0 to 10000 mm |
| Ambient temperature | -20 to 60 °C |
| Switching output | Push-pull |
| Switching element function | PNP dark switching, NPN light switching |
| Maximum switching frequency | 2000 Hz |
| Maximum output current | 50 mA |
| Voltage drop | 0 to 1.5 V |
| Short circuit current rating | Pulsed |
| Operational voltage range DC | 10 to 30 V |
| Residual ripple | 10% |
| No-load supply current | 11 mA |
| Reverse polarity protection | For all electrical connections |

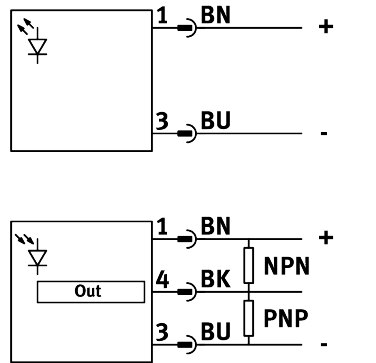

| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, type of mounting | Screw-type lock with AF9 |
| Material electrical contact | Gold-plated brass |
| Cable length | 0.15 m |
| Cable characteristic | Standard |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | With through-hole |
| Tightening torque | 0.5 Nm |
| Mounting position | Any |
| Product weight | 20 g |
| Material housing | PC, TPE-U(PU) |
| Ready status indication | Green LED |
| Switching status indication | Yellow LED |
| Function reserve indication | Flashing yellow LED |
| Degree of protection | IP65, IP67 |
| Insulation voltage | 500 V |
| Immunity to surge | 1 kV |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Laser safety class | 1 |
| Pollution degree | 3 |
| Weight | 0.028 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SOOD-TB-L-PN |
| EAN | 4052568446338 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Protection rating | IP65 |
| Temperaturbereich | -20-60 °C |
| Temperature (max.) | 60 |
