Diffuse sensor push-pull PNP/NPN range 1 to 30 mm SOOD-BS-R-PN-30 - Festo 8075653
Detects objects by the light they reflect, no reflector needed. Background suppression ignores interference behind the object. The Festo diffuse sensor SOOD-BS-R-PN-30 comes with operating range 1 to 30 mm and switching output push-pull, switching function PNP light switching, NPN dark switching.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Detects objects by the light they reflect, no reflector needed. Background suppression ignores interference behind the object. The Festo diffuse sensor SOOD-BS-R-PN-30 offers operating range 1 to 30 mm as well as switching output push-pull, switching function PNP light switching, NPN dark switching.
Benefits
- Operating range 1 to 30 mm
- Switching output push-pull, switching function PNP light switching, NPN dark switching
- Switching frequency up to 800 Hz
- Light type red, LED, light spot max. 2 mm at sensing distance 30 mm
- Degree of protection IP65, IP67 for harsh industrial environments

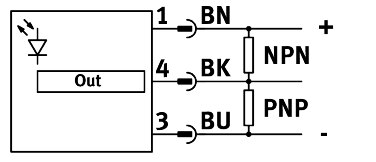

- Electrical connection M8x1, A-coded to EN 61076-2-104
Applications
Typical tasks are presence checks, counting and positioning on conveyors, in assembly and in packaging. To reorder, the type SOOD-BS-R-PN-30 or Festo number 8075653 is sufficient.
Technical data
| Feature | Value |
|---|---|
| Type | SOOD-BS-R-PN-30 |
| Festo part number | 8075653 |
| Design | block design |
| Conforms to standard | EN 60947-5-2 |
| Certification | RCM mark, c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Certificate issuing authority | UL E232949 |
| Note on materials | RoHS compliant |
| Measuring principle | optoelectronic |
| Detection method | diffuse sensor with background suppression |
| Type of light | red, LED |
| Max. light spot | 2 mm at sensing distance 30 mm |
| Minimum object diameter | 2 mm |
| Operating range | 1 to 30 mm |
| Ambient temperature | -25 to 60 °C |
| Max. black-white difference | 7 % |
| Reference material | standard white 90%, 100x100 mm |
| Switching output | push-pull |
| Switching element function | PNP light switching, NPN dark switching |
| Hysteresis | 0.3 mm |
| Max. switching frequency | 800 Hz |
| Max. output current | 50 mA |
| Voltage drop | 0 to 1.5 V |
| Short-circuit protection | pulsed |
| Operating voltage range DC | 10 to 30 V |
| Residual ripple | 10 % |
| No-load supply current | 10 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | cable with plug |
| Electrical connection 1, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | screw-type lock with AF 9, rotatable |
| Electrical connection 1, compatible type of mounting | compatible with rotatable and non-rotatable screw-type lock |
| Material plug contacts | brass, gold-plated |
| Cable length | 0.15 m |
| Cable characteristics | standard |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | with through-holes |
| Tightening torque | 0.5 Nm |
| Mounting position | any |
| Product weight | 10 g |
| Material housing | PC, TPE-U(PU) |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Degree of protection | IP65, IP67 |
| Insulation voltage | 500 V |
| Surge immunity | 1 kV |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Pollution degree | 3 |
| Weight | 0.02 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SOOD-BS-R-PN-30 |
| EAN | 4052568446253 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | Blockbauweise |
| Norm | DIN EN 60947-5-2 |
| Protection rating | IP65 |
| Temperature (max.) | 60 |
