Belongs to assembly on a wall, a panel or a row of units. The connection is made via thread G 1/4". The response pressure covers 10 - 13 bar.

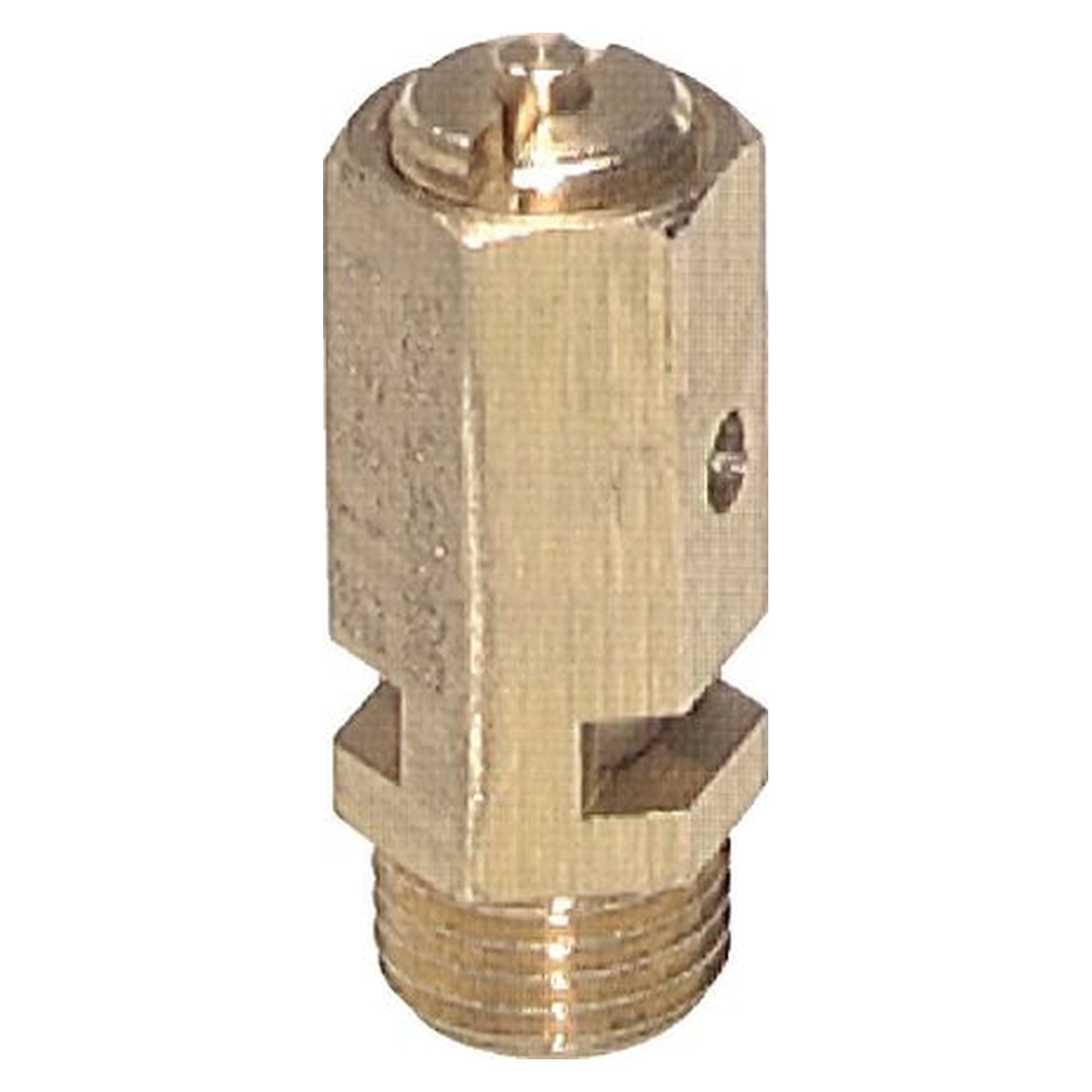

Accessory for compressed air equipment, G 1/4", 10 - 13 bar, DN 5, brass, dN 5 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€24.32
Item
FL-048176
Manufacturer no.
SV 14-13
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.SV 14-13
EAN4050571658847
Customs tariff number84814090
ConditionNew
Artikel
FL-048176
Frequently Bought Together
With this accessory for compressed air equipment an arrangement of units can be built up cleanly and extended later. The response pressure extends over 10 - 13 bar. The body is made of brass. The device is screwed in with G 1/4". The temperature range extends over -20 to +200 °C.
Benefits
- Nominal width DN 5 in the passage
- Material brass determines strength and resistance of the part
- Released for compressed air and andere ungiftige, non-flammable gases, frei abblasend
- Response pressure 10 - 13 bar as the leading rating of the device
- Connection thread G 1/4" for direct installation in the line
- Temperature range -20 to +200 °C for use in the workshop and in the plant
Technical data
| Property | Value |
|---|---|
| DN [mm] | 5 |
| Thread | G 1/4" |
| Response pressure [bar] | 10 - 13 |
| Abblasleistung [m³/h] | 7.2 - 9.2 |
| Temperature range [°C] | -20 to +200 |
| Body material | brass |
| Media | compressed air and andere ungiftige, non-flammable gases, frei abblasend |
Applications
Machine and plant construction, mounting of air treatment units, retrofitting and conversion of existing installations.
| Weight | 0.034000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | SV 14-13 |
| EAN | 4050571658847 |
| Zolltarifnummer | 84814090 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Set pressure [bar] | 10 - 13 |
| Abblasleistung [m³/h] | 7,2 - 9,2 |
| Temperaturbereich | -20-200 °C |
