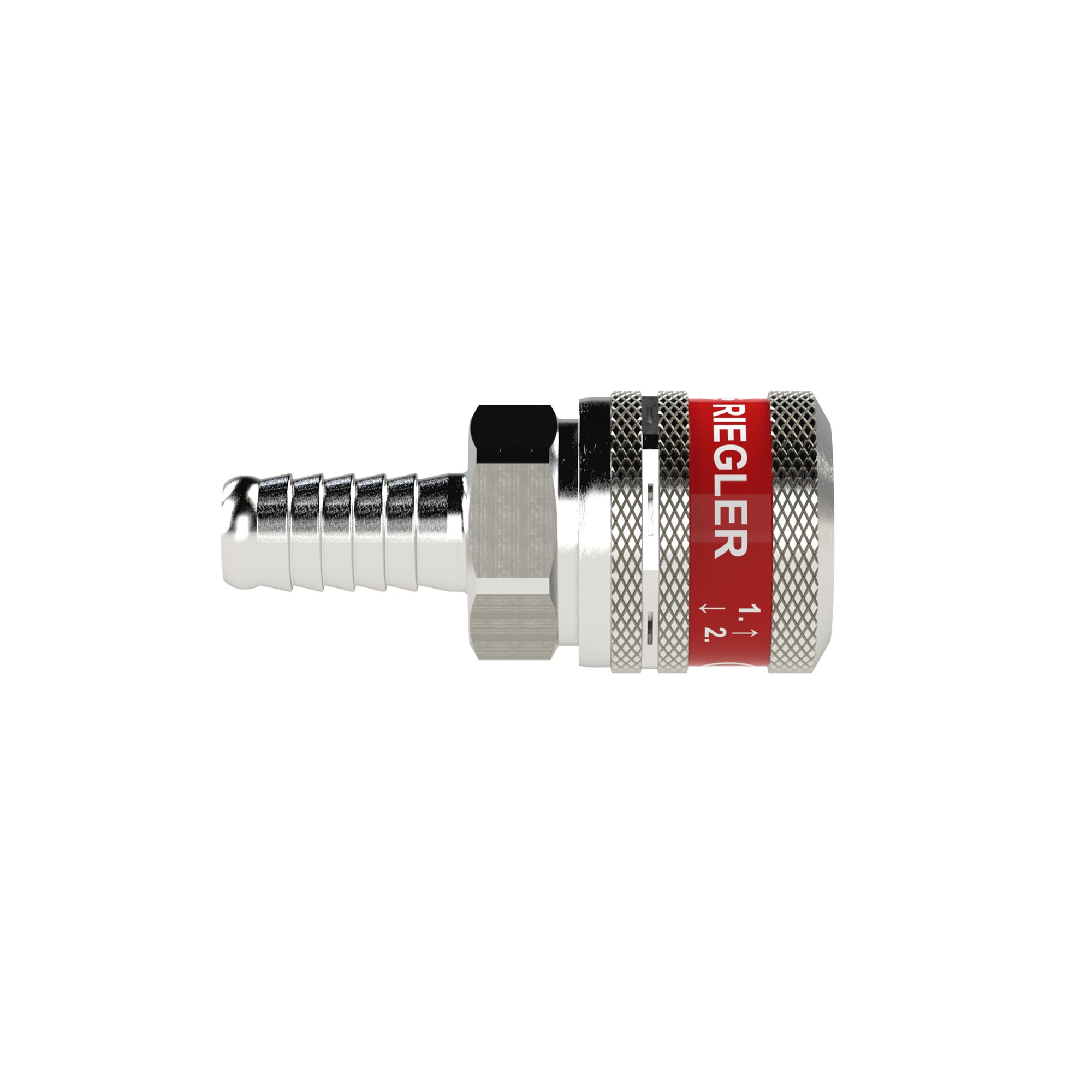

Safety coupling DN 7.8, SEK series, nickel-plated brass, hose stem for 13 mm hose ID, -0.95 to 35 bar, type SEKMSNLW13 - Riegler 129976
Safety coupling DN 7.8 with hose stem for 13 mm hose ID. Operating pressure -0.95 to 35 bar, medium and ambient temperature -20 to 60 °C and flow rate 1350 l/min of air. The safety design type SEKMSNLW13 vents the line before the plug is released.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Safety coupling DN 7.8 with hose stem for 13 mm hose ID, built for disconnecting compressed air lines safely. The safety design type SEKMSNLW13 vents the line before the plug is released.
Advantages
- Vents the line before the plug is released
- Flow rate 1350 l/min of air at 6 bar and 1 bar pressure difference
- Medium and ambient temperature -20 to 60 °C
- Housing in nickel-plated brass, NBR seal
- Operating pressure -0.95 to 35 bar, max. 10 bar when coupling or uncoupling, so it also handles vacuum
Applications
For compressed air lines of nominal size DN 7.8 with a matching plug of the SEK series.
Technical data
| Manufacturer | Riegler |
|---|---|
| Item number | 129976 |
| Type no. | SEKMSNLW13 |
| Nominal size DN | 7.8 |
| Width across flats | 22 mm |
| Operating pressure | -0.95 to 35 bar |
| Flow measured | at 6 bar, Δp = 1 bar |
| Housing | Nickel-plated brass |
| Seal | NBR |
| Flow rate | 1350 l/min air |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Valve body | Nickel-plated brass |
| Sleeve | Nickel-plated brass |
| Series | SEK |
| Length | 58.0 mm |
| Note on operating pressure | max. 10 bar when coupling or uncoupling |
| Connection | Hose stem LW 13 |
| For hose ID | 13 mm |
| Medium and ambient temperature | -20 to 60 °C |
| Weight | 0.1 kg |
| Hersteller-Nr | SEKMSNLW13 |
| EAN | 4047322745123 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Material | Nickel-plated brass |
| For hose ID [mm] | 13 |
| Nominal size DN [mm] | 7,8 |
| Seal material | NBR |
| Housing material | Nickel-plated brass |
| Flow rate [l/min] | 1350 l/min (Luft) |
| Length [mm] | 58,0 |
| Schlüsselweite [mm] | 22 |
| Betriebsdruck max [bar] | 35 |
| Temperaturbereich | -20-60 °C |
| Temperature (max.) | 60 |
