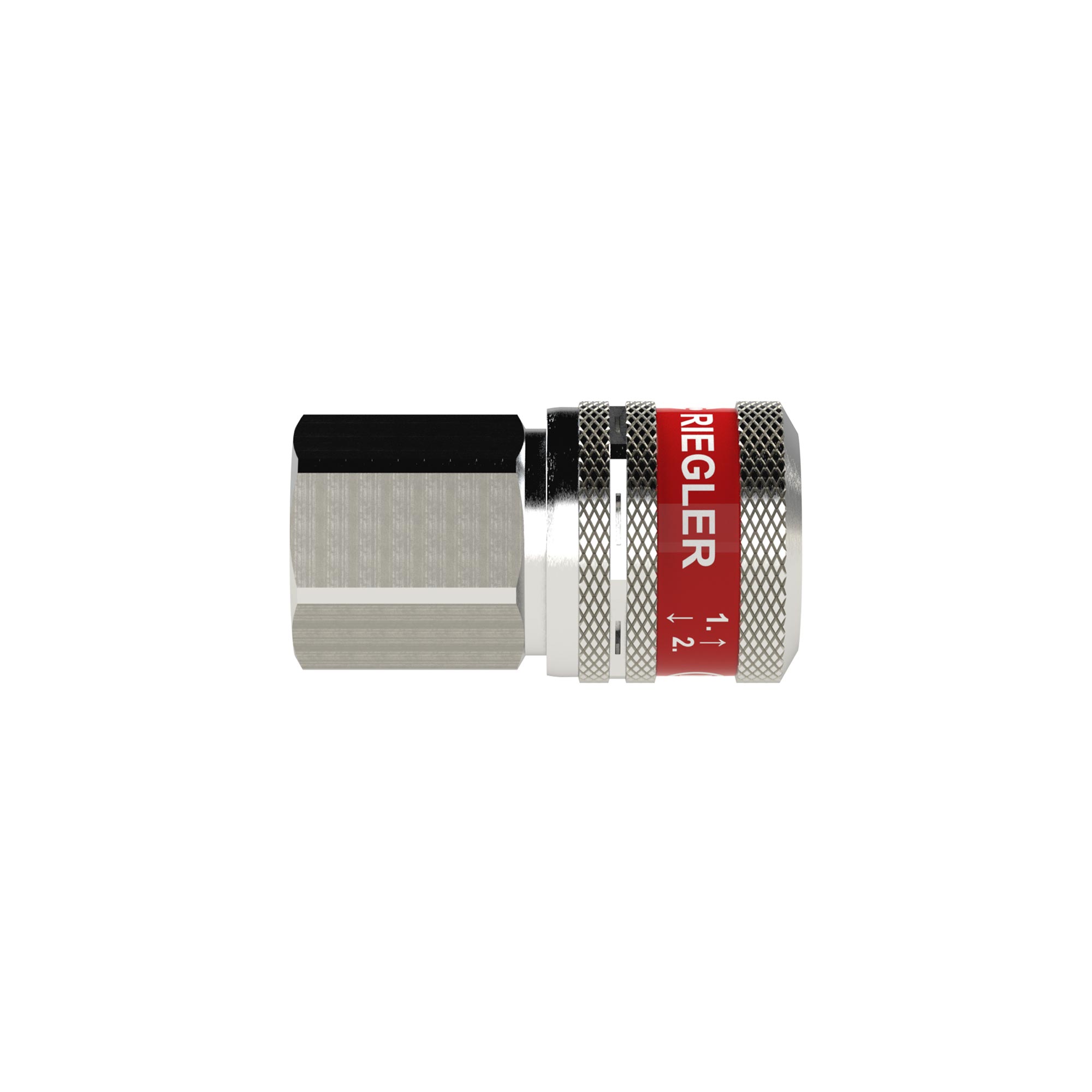

Safety coupling DN 7.8, SEK series, nickel-plated brass, G 1/4 female thread, -0.95 to 35 bar, type SEKMSNG14IG - Riegler 129969
Safety coupling DN 7.8 with G 1/4 female thread. Flow rate 1350 l/min of air, operating pressure -0.95 to 35 bar and medium and ambient temperature -20 to 60 °C. The safety design type SEKMSNG14IG vents the line before the plug is released.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Safety coupling DN 7.8 with G 1/4 female thread for compressed air workstations where the line must be disconnected safely. The safety design type SEKMSNG14IG vents the line before the plug is released.
Advantages
- Flow rate 1350 l/min of air at 6 bar and 1 bar pressure difference
- The line is vented before the plug is released
- Housing in nickel-plated brass, NBR seal
- Operating pressure -0.95 to 35 bar, so it also handles vacuum
- Medium and ambient temperature -20 to 60 °C
Applications
For compressed air lines of nominal size DN 7.8 with a matching plug of the SEK series.
Technical data
| Manufacturer | Riegler |
|---|---|
| Item number | 129969 |
| Type no. | SEKMSNG14IG |
| Nominal size DN | 7.8 |
| Width across flats | 22 mm |
| Flow measured | at 6 bar, Δp = 1 bar |
| Operating pressure | -0.95 to 35 bar, max. 10 bar when coupling or uncoupling |
| Housing | Nickel-plated brass |
| Seal | NBR |
| Flow rate | 1350 l/min air |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Valve body | Nickel-plated brass |
| Sleeve | Nickel-plated brass |
| Series | SEK |
| Length | 48.0 mm |
| Connection | G 1/4 female thread |
| Medium and ambient temperature | -20 to 60 °C |
| Hersteller-Nr | SEKMSNG14IG |
| EAN | 4047322745055 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Material | Nickel-plated brass |
| Thread | G 1/4 |
| Nominal size DN [mm] | 7,8 |
| Seal material | NBR |
| Housing material | Nickel-plated brass |
| Flow rate [l/min] | 1350 l/min (Luft) |
| Length [mm] | 48,0 |
| Thread type | Internal thread |
| Schlüsselweite [mm] | 22 |
| Betriebsdruck max [bar] | 35 |
| Pneumatic connection | G1/4 IG |
| Temperaturbereich | -20-60 °C |
| Temperature (max.) | 60 |
