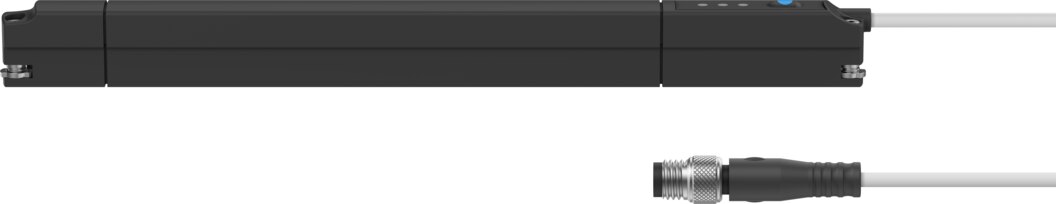

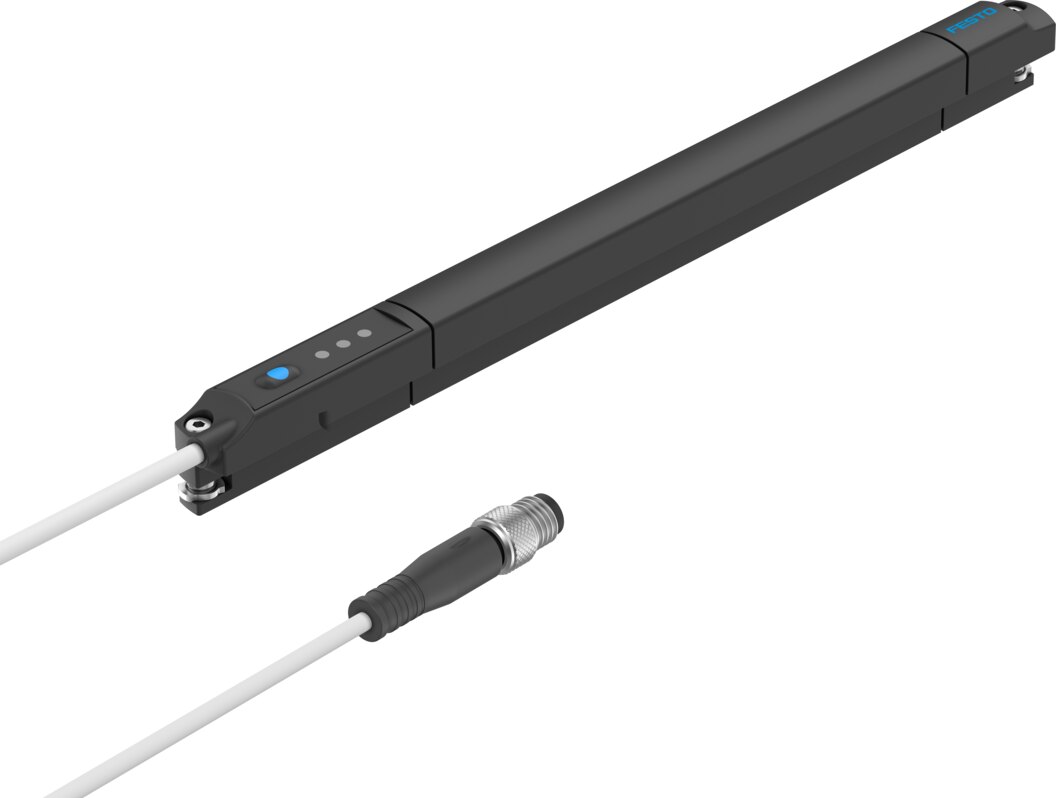

Position transmitter measuring range 0 to 160 mm analogue output 0-10 V for T-slot SDAT-MHS-M160-1L-SV-E-0.3-M8 - Festo 8115398

Festo ✓ Original product Brand new

Measures the position steplessly across the whole range. Output as analogue signal 0 - 10 V. The Festo position transmitter SDAT-MHS-M160-1L-SV-E-0.3-M8 comes with measuring range 0 to 160 mm and analogue output 0 - 10 V, typical linearity error ±0.25 mm.

Net
€358.79
excl. VAT
Item FES-8115398
Manufacturer no. SDAT-MHS-M160-1L-SV-E-0.3-M8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Measures the position steplessly across the whole range. Output as analogue signal 0 - 10 V. The Festo position transmitter SDAT-MHS-M160-1L-SV-E-0.3-M8 offers measuring range 0 to 160 mm as well as analogue output 0 - 10 V, typical linearity error ±0.25 mm.

Benefits

  • Measuring range 0 to 160 mm
  • Analogue output 0 - 10 V, typical linearity error ±0.25 mm
  • IO-Link Device V 1.1 for parameterisation and diagnostics
  • Resolution 0.05 mm, repetition accuracy 0.1 mm
  • Travel speed up to 3 m/s
  • Electrical connection M8x1, A-coded to EN 61076-2-104

Applications

Suitable for actuators with a T-slot where intermediate positions are monitored or strokes are measured. The order code SDAT-MHS-M160-1L-SV-E-0.3-M8 defines the version unambiguously.

Technical data

FeatureValue
TypeSDAT-MHS-M160-1L-SV-E-0.3-M8
Festo part number8115398
Designfor T-slot
CertificationRCM mark, c UL us - Listed (OL)
CE marking (see declaration of conformity)to EU EMC Directive
UKCA marking (see declaration of conformity)to UK EMC regulations
Note on materialsRoHS compliant, halogen-free
Measured variableposition
Measuring principlemagnetic Hall
Sensing range0 to 160 mm
Ambient temperature-25 to 70 °C
Typical sampling interval1 ms
Max. travel speed3 m/s
Displacement resolution0.05 mm
Repetition accuracy0.1 mm
Switching outputPNP
Switching element functionN/C or N/O, switchable
Switch-on time2 ms
Switch-off time2 ms
Max. switching frequency1000 Hz
Max. output current100 mA
Max. switching capacity DC2.7 W
Voltage drop2.5 V
Analogue output0 - 10 V
Sensitivity0.056 V/mm
Typical linearity error±0.25 mm
Min. load resistance voltage output20 kOhm
Short-circuit protectionyes
Overload protectionavailable
ProtocolI-Port, IO-Link
IO-Link, protocol versionDevice V 1.1
IO-Link, profileSmart Sensor Profile
IO-Link, function classesbinary data channel (BDC), process data variable (PDV), identification, diagnostics, teach channel
IO-Link, communication modeCOM3 (230.4 kBaud)
IO-Link, SIO mode supportyes
IO-Link, port classA
IO-Link, process data width IN2 Byte
IO-Link, process data content IN12 bit PDV (measured position value), 4 bit BDC (position monitoring)
IO-Link, minimum cycle time1 ms
Operating voltage range DC15 to 30 V
Residual ripple10 %
Reverse polarity protectionfor all electrical connections

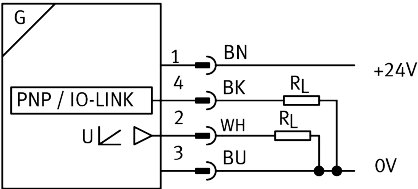

Electrical connection 1, connection typecable with plug
Electrical connection 1, connection technologyM8x1, A-coded to EN 61076-2-104
Electrical connection 1, number of pins/wires4
Electrical connection 1, type of mountingscrew-type lock
Connection outlet directionin-line
Material plug contactscopper alloy, gold-plated
Cable test conditionsBending strength: to Festo standard, Torsional strength: > 300.000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm
Cable length0.3 m
Cable characteristicssuitable for energy chains and robots
Cable sheath colourgrey
Material cable sheathTPE-U(PUR)
Type of mountingscrewed tight, insertable into the slot from above
Mounting positionany
Product weight35 g
Material housingpolyester, high-alloy stainless steel
Material union nutbrass, nickel-plated
Material foilpolyester
Ready status indicationLED green
Switching status indicationLED yellow
Status indicationLED red
Setting optionsIO-Link, button
Ambient temperature with flexible cable installation-20 to 70 °C
Degree of protectionIP65, IP68
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriessuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14class 4 to ISO 14644-1
Weight0.12 kg
ManufacturerFesto
Hersteller-NrSDAT-MHS-M160-1L-SV-E-0.3-M8
EAN4052568583125
Zolltarifnummer90318020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Bauformfür T-Nut
Protection ratingIP65
Temperature (max.)70
