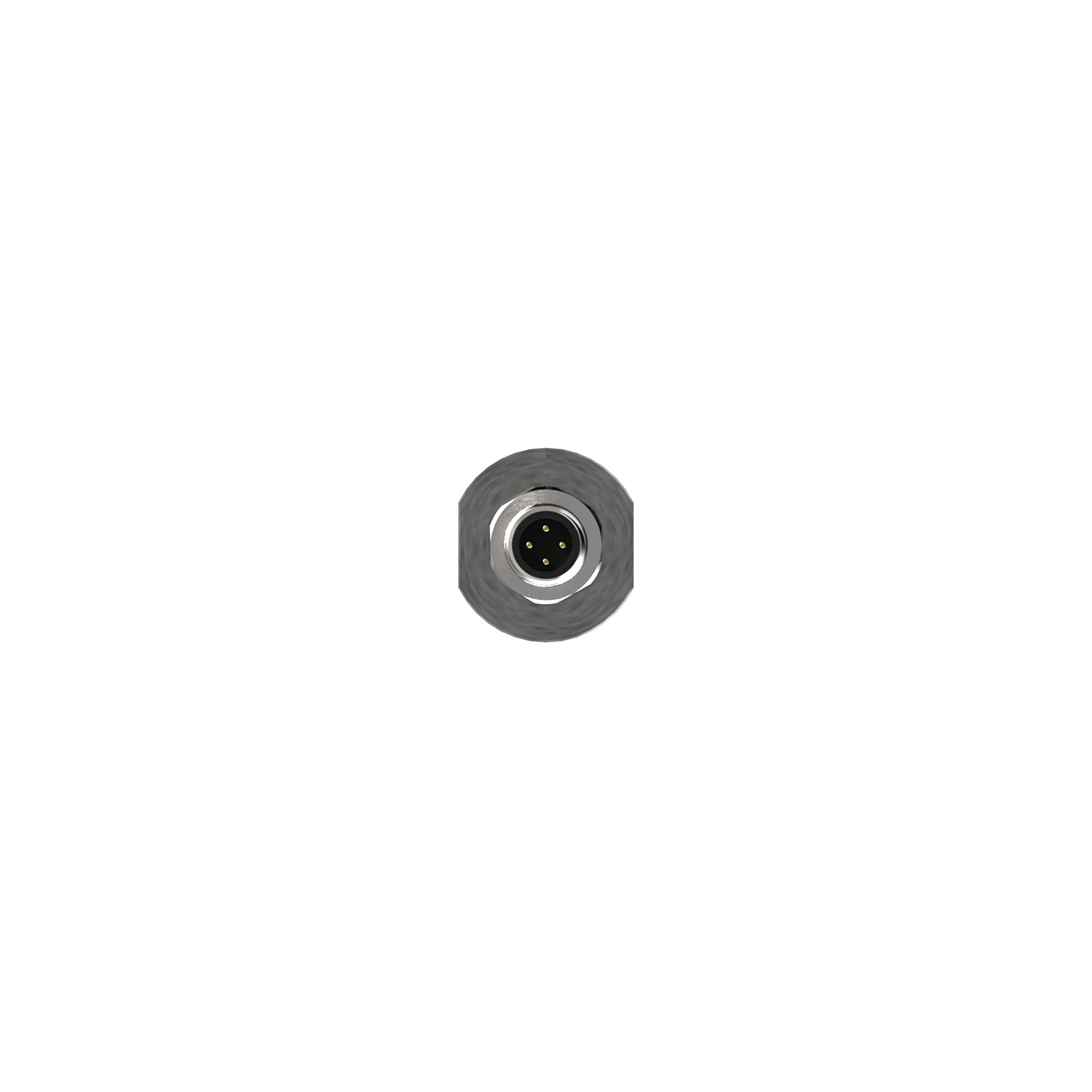

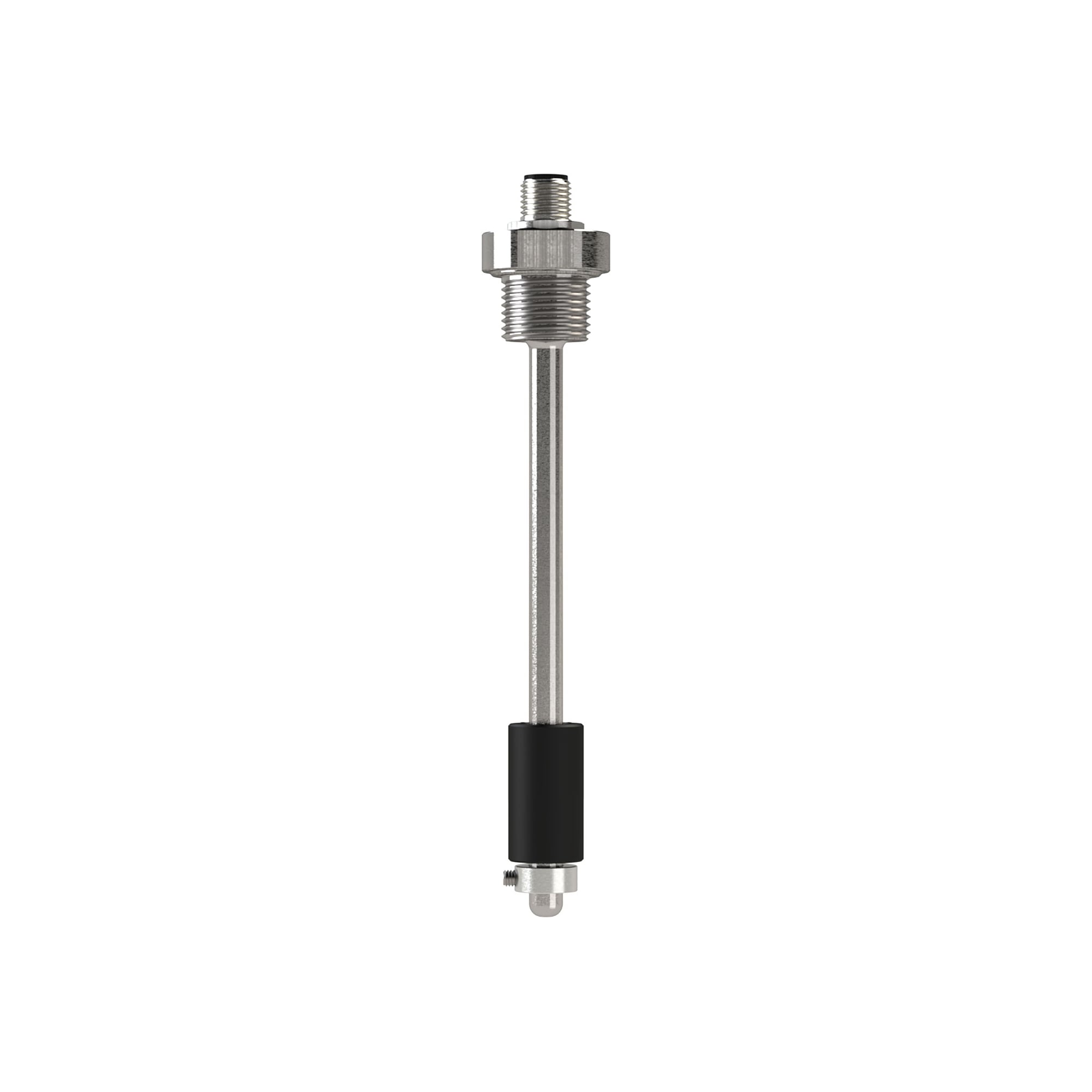

Float switch RLS-1000, changeover at 100 mm, sliding tube 150 mm, G 1/2, M12 connector, type RLS-1000.1.W.M12.12.100 - Riegler 189285
The RLS-1000 float switch signals the level with a changeover contact at 100 mm, sliding tube length 150 mm, screw-in thread G 1/2, M12 connector. A permanent magnet in the float and friction-free reed contacts detect the level at 100 mm in vessels with water, oil, diesel or other liquids.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The RLS-1000 float switch signals the level with a changeover contact at 100 mm, sliding tube length 150 mm, screw-in thread G 1/2, M12 connector. A permanent magnet in the float and friction-free reed contacts detect the level at 100 mm in vessels with water, oil, diesel or other liquids. Nothing needs to be calibrated or set during installation, the robust design with 150 mm sliding tube in CrNi steel 316Ti is insensitive to vibration and shock. Type RLS-1000.1.W.M12.12.100: operating pressure up to 16 bar, medium temperature -30 to 80 °C, cylinder float in NBR with Ø 18 mm.
Key benefits
- Switch point at 100 mm, changeover contact
- Sliding tube length 150 mm, thread G 1/2
- Reed contacts, no calibration needed on installation
- Up to 16 bar, medium temperature -30 to 80 °C
- Housing CrNi steel 316Ti, protection IP 65
Specifications
Typical applications
- Level monitoring, dry-run protection and overflow protection in machine building
- Vessels with water, oil, diesel or other liquids
Technical data
| Type no. | RLS-1000.1.W.M12.12.100 |
|---|---|
| Switching function | 1x changeover |
| Sliding tube length | 150 mm |
| Housing | CrNi steel 316Ti |
| Mounting position | vertical |
| Thread | G 1/2 male |
| Electrical connection | male connector M12 |
| Output signal | 1 switching point |
| Switch position switching output | 100 mm |
| Maximum operating pressure | 16 bar |
| Medium temperature | -30 to 80 °C |
| Ambient temperature | -30 to 80 °C |
| Degree of protection | IP 65 |
| Material float | NBR |
| Float shape | cylinder |
| Float diameter | 18 mm |
| Weight | 0.114 kg |
| Manufacturer | Riegler |
| Hersteller-Nr | RLS-1000.1.W.M12.12.100 |
| EAN | 4047322977340 |
| Zolltarifnummer | 85365080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Housing material | CrNi-Stahl 316Ti |
| Thread type | External thread |
| Betriebsdruck max [bar] | 16 |
| Protection rating | IP65 |
| Temperaturbereich | -30-80 °C |
| Temperature (max.) | 80 |
