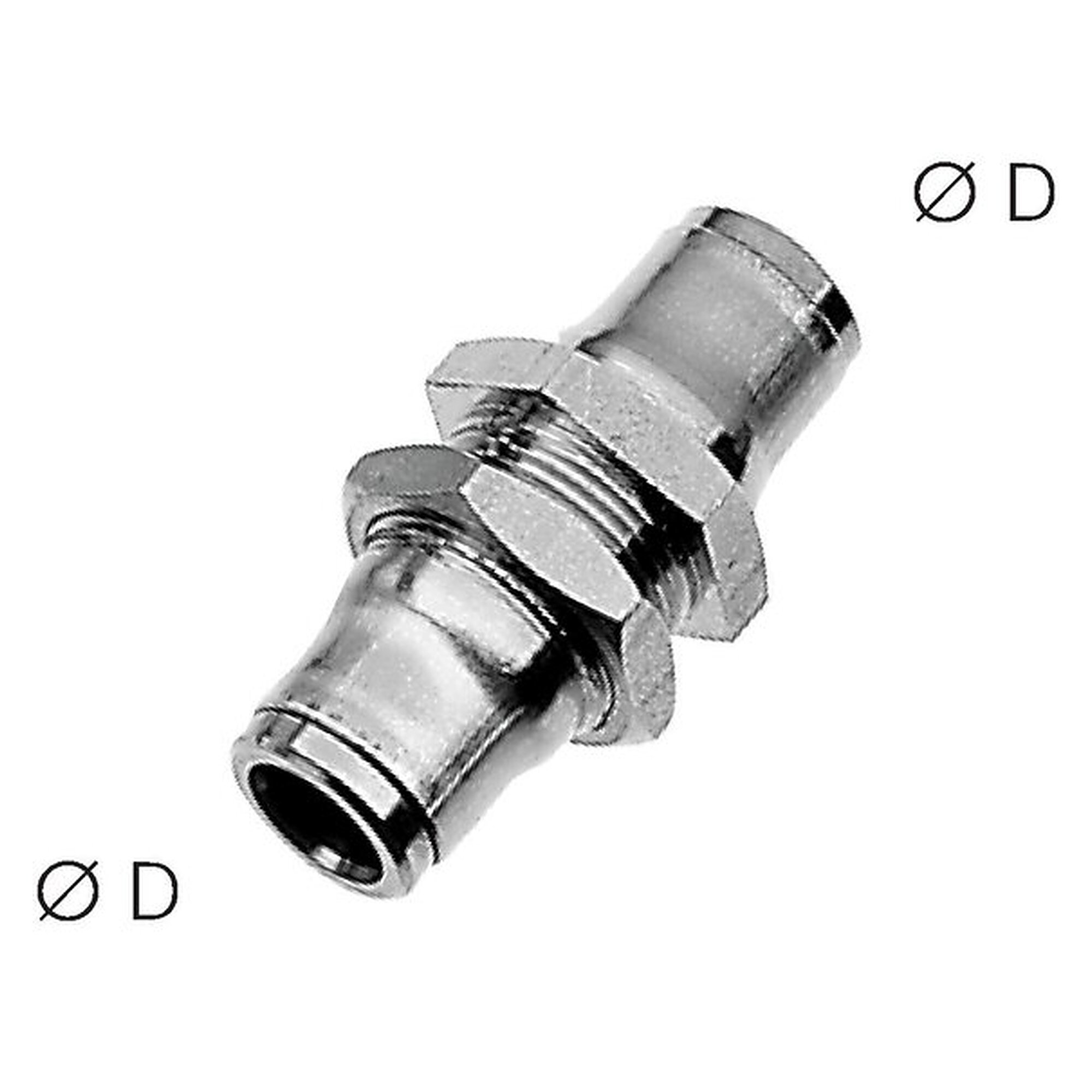

Push-in fitting, bulkhead design, thread M 22x1, tube 12 mm, stainless steel

This push-in fitting joins the thread M 22x1 and a tube of 12 mm outside diameter in one part. The operating pressure reaches from -0.95 bar to 18 bar. The bulkhead design leads the line tightly through a panel or wall.

Benefits

• The seal in NBR is matched to the range from -15 °C to +110 °C
• The tube is pushed in without tools and released again over the release ring
• The connection over thread M 22x1 is fixed in size and needs no adaptor
• With tube diameter 12 mm the size is fixed, so no reworking of the line is required
• The operating pressure from -0.95 bar to 18 bar is released for this size
• The temperature range from -15 °C to +110 °C covers cold installation and warm machine surroundings

Technical data

Applications

Pneumatic cylinders and valve terminals, control air lines inside the control cabinet, workshop distribution and service units, compressed air installation on machines and plants.

Standards and conformity

Only silicone free seals and lubricants are used during assembly.
