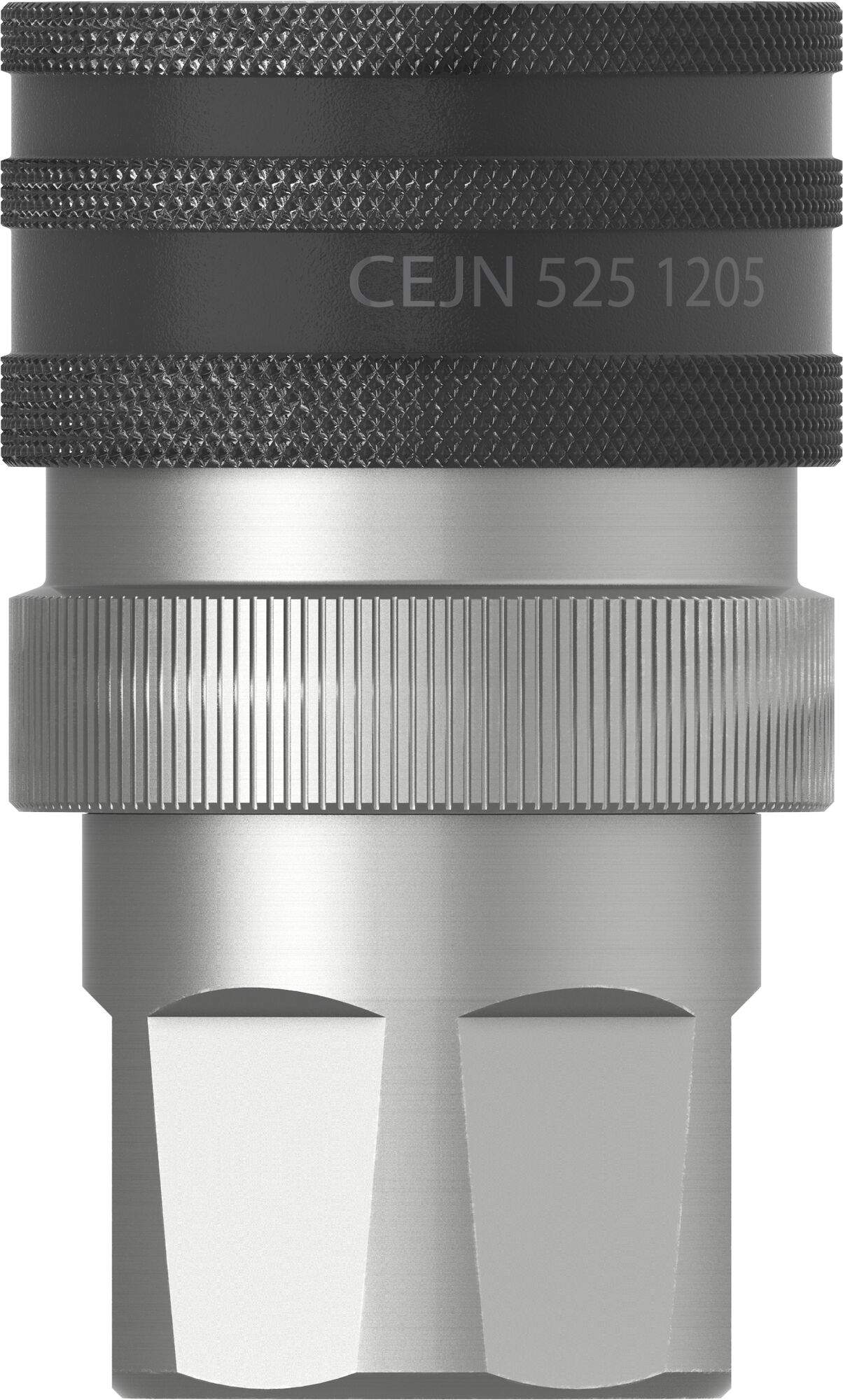

Quick coupling, female thread G 1/2", DN 12.5, 300 bar, Steel/NBR - Cejn 105251205

Made of steel, this quick coupling belongs to series 525 and covers body size ISO-DN 12.5 with female thread G 1/2", rated up to 300 bar when connected. The poppet type design is stated by the manufacturer under connection type. A manually operated locking ring of series 525 secures the joint against involuntary disconnection.

Features

• Steel as main material, seals made of NBR.
• Manually operated locking ring of series 525 against involuntary disconnection.
• Steel with zinc-nickel surface for long service life.
• Poppet type design according to the manufacturer data on connection type.
• 300 bar working pressure when connected, minimum burst pressure 1100 bar.
• Female thread G 1/2" for direct installation, body size ISO-DN 12.5.

Applications

Series 525 is built for hydraulic systems. With 300 bar when connected and steel as main material, body size ISO-DN 12.5 covers permanently loaded connection points.

Materials and marking

The body size is stated as ISO-DN 12.5 and the connection size as 1/2". The manufacturer names Steel as main material and NBR as seal material.
