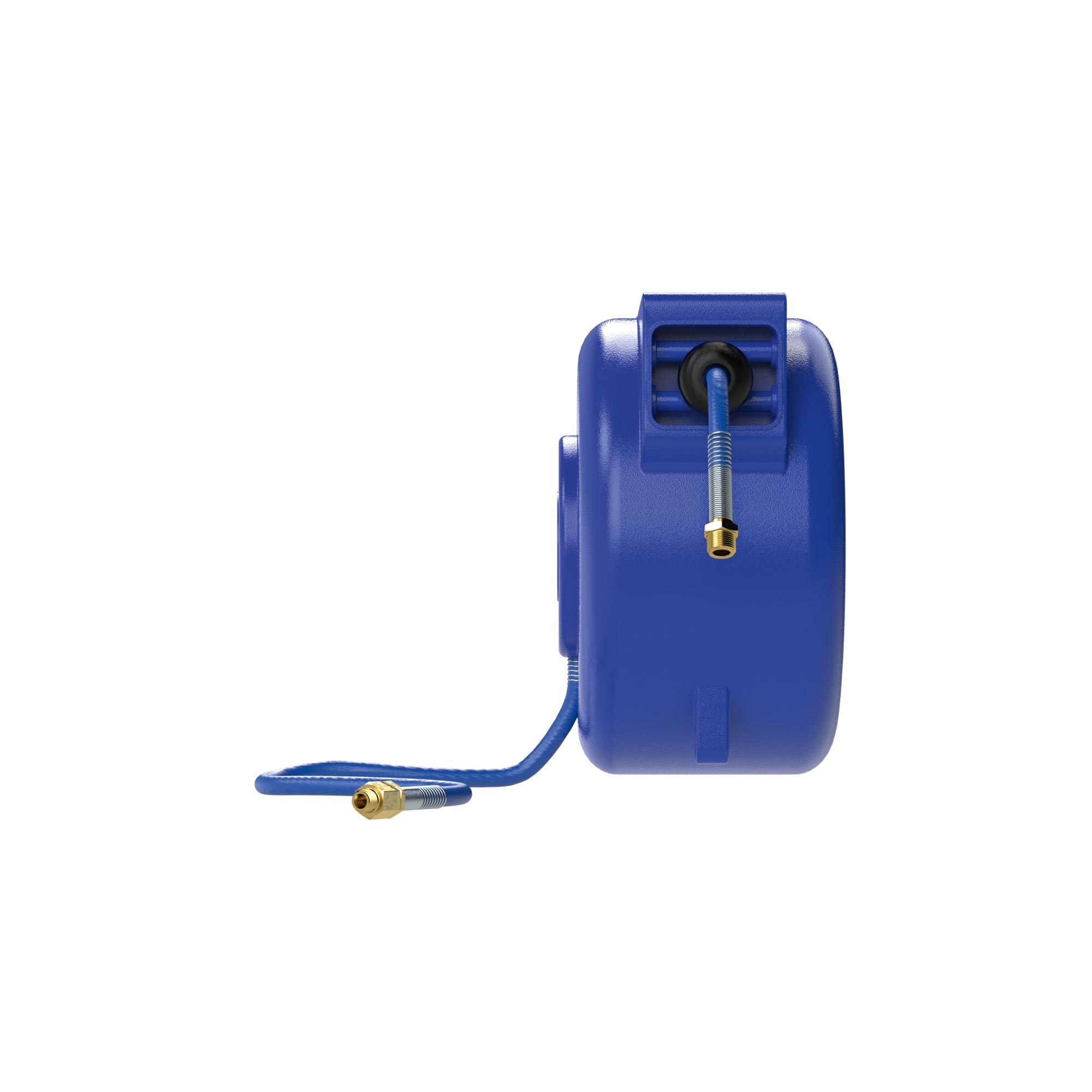

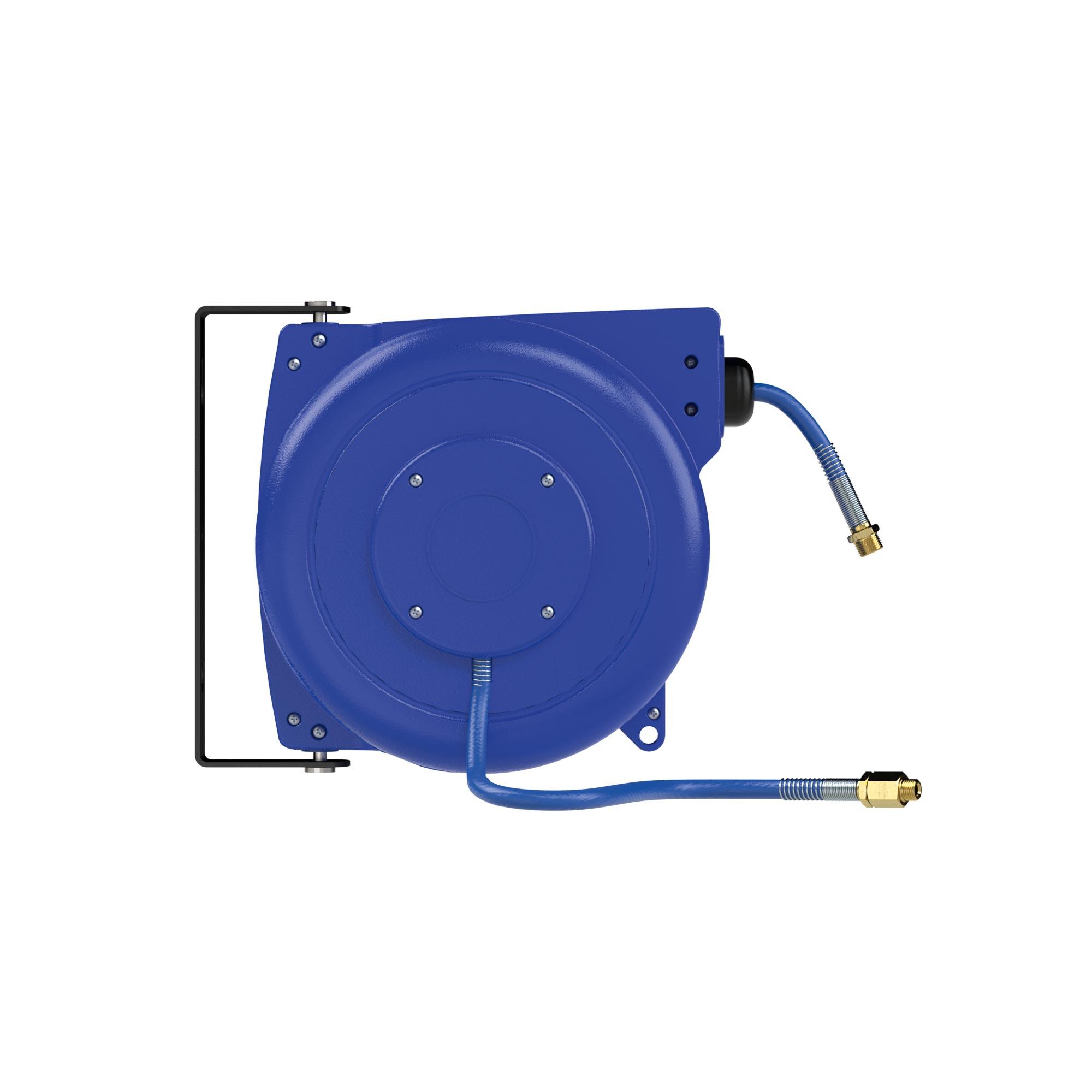

Hose reel for compressed air and water, PVC hose Ø 10 x 6.5 mm, 15 m, 15 bar, type SAR15M.15B.R14 - Riegler 206190

Riegler ✓ Original product Brand new Made in Netherlands

Hose reel for compressed air and water SAR15M.15B.R14 with 15 m PVC hose Ø 10 x 6.5 mm, operating pressure up to 15 bar. Inlet R 1/4 male, outlet R 1/4 male, operating temperature -15 to 60 °C. Automatic latching holds the hose at any length.

Net
€267.80
excl. VAT
Item RGL-206190
Manufacturer no. SAR15M.15B.R14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Hose reel for compressed air and water SAR15M.15B.R14 with 15 m PVC hose Ø 10 x 6.5 mm, operating pressure up to 15 bar. Inlet R 1/4 male, outlet R 1/4 male, operating temperature -15 to 60 °C.

Advantages

  • Operating pressure up to 15 bar
  • 15 m PVC hose Ø 10 x 6.5 mm
  • Automatic latching holds the hose at any length
  • Enclosed drive spring
  • Locking device for free running or latching
  • Swivels through 180°

Applications

Application: supplying workstations with compressed air or water.

Technical data

ManufacturerRiegler
Item number206190
Type no.SAR15M.15B.R14
Min operating temperature-15 °C
Max operating temperature60 °C
Max operating pressure15 bar
Hose materialPVC
Swivel angle180°
Applicationsfor compressed air and water
Hose length15 m
Dimension A340.0 mm
Dimension B263.0 mm
InletR 1/4 male
OutletR 1/4 male
Weight4.1 kg
Hersteller-NrSAR15M.15B.R14
EAN4047322720977
Zolltarifnummer39173900
GPSR HerstellerdatenRiegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Country of ManufactureNetherlands
For hose OD [mm]10
For hose ID [mm]6,5
Betriebsdruck max [bar]15
Temperaturbereich-15-60 °C
Temperature (max.)60

Downloads

Datasheet

User Manual
