Roller lever valve 3/2-way normally closed, G1/8, 120 l/min RWB-3-1/8 - Festo 552432
The Festo roller lever valve RWB-3-1/8 is designed for purely pneumatic signal generation in sequence controls and switches as a 3/2-way valve (normally closed, monostable). Rated for 120 l/min standard nominal flow, G1/8 ports and 3.5 to 8 bar operating pressure. Actuating force 3.1 N.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
120 l/min standard nominal flow at up to 8 bar: the roller lever valve RWB-3-1/8 is tailored to control and signal tasks. The roller lever valve switches as a 3/2-way valve (normally closed, monostable).
Benefits
- 120 l/min standard nominal flow through a 3.5 mm nominal size.
- Operating pressure 3.5 to 8 bar.
- G1/8 connection on all 3 valve ports.
- Actuating force 3.1 N.
- Corrosion resistance class CRC 2.
- Ambient temperature -10 to 60 °C.
Application
The RWB-3-1/8 is the right choice for purely pneumatic signal generation in sequence controls. The roller lever valve is fastened via through-holes.
Technical data

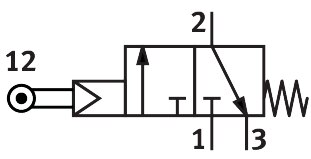

| Valve function | 3/2-way, normally closed, monostable |
|---|---|
| Type of actuation | Mechanical |
| Standard nominal flow rate (standardised to DIN 1343) | 120 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | 3.5 to 8 bar |
| Design | Piston seat |
| Nominal size | 3.5 mm |
| Type of piloting | Piloted |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 to 60 °C |
| Actuating force | 3.1 N |
| Product weight | 160 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Material seals | NBR |
| Material housing | Anodised |
| Manufacturer | Festo |
| Hersteller-Nr | RWB-3-1/8 |
| EAN | 4052568357665 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Nominal size DN [mm] | 3,5 |
| Seal material | NBR |
| Function | 3/2 closed monostable |
| Flow rate [l/min] | 120 |
| Actuation type | Mechanical |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
