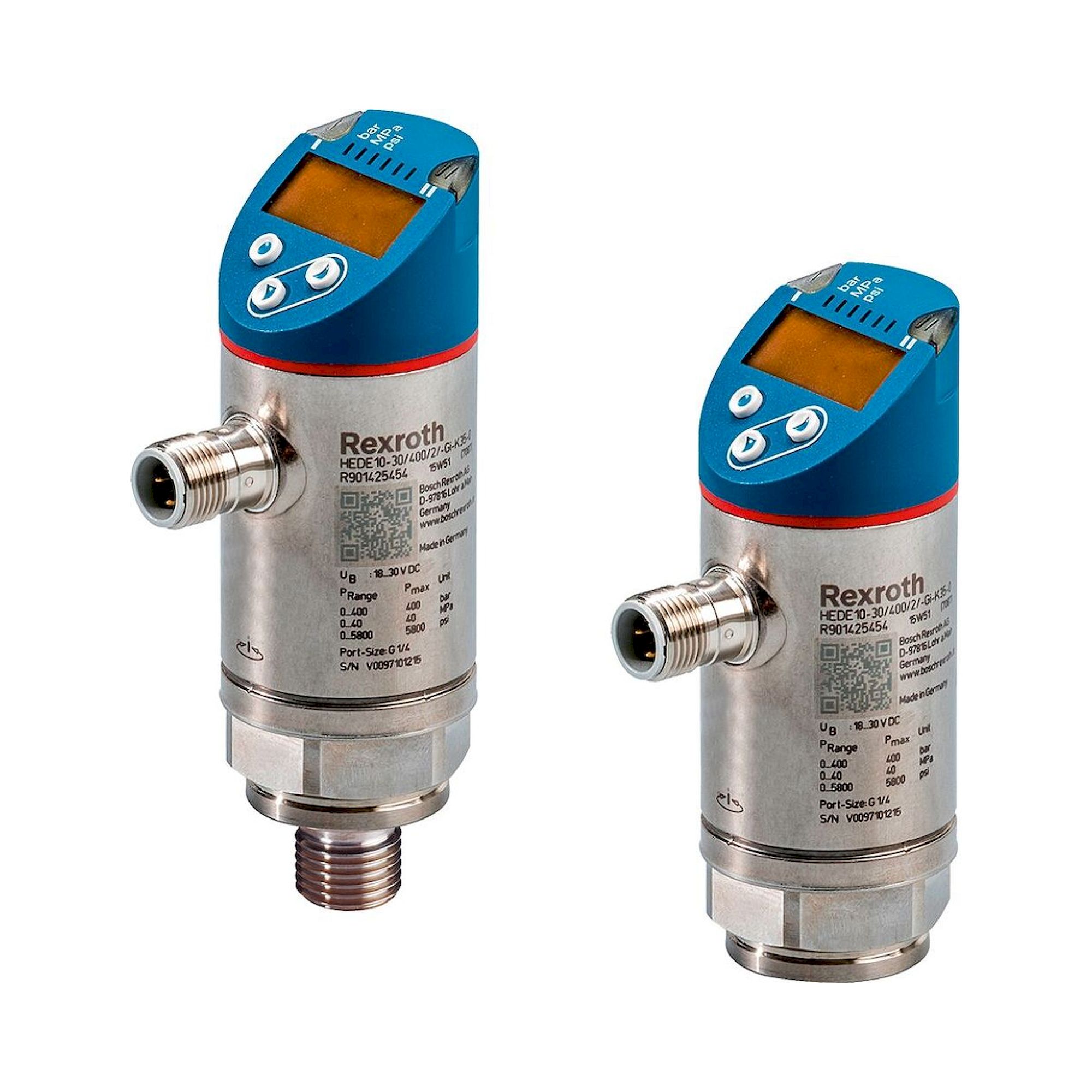

Pressure switch HEDE10-3X/100/2/-GI-K35-0, 100 bar, 2 switching outputs - Bosch Rexroth R901425452

Name: Pressure switch HEDE10-3X/100/2/-GI-K35-0, 100 bar, 2 switching outputs - Bosch Rexroth R901425452
Brand: Bosch Rexroth
SKU: BRR-R901425452
Price: 462.46 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Bosch Rexroth pressure switch HEDE10-3X/100/2/-GI-K35-0: max. 100 bar, internal thread G 1/4, electrical connection via connector, 4-pole, M12 x 1, coding A. Transmission of pressure and diagnostic values via IO-Link.

Net

€462.46

excl. VAT

Item BRR-R901425452

Manufacturer no. R901425452

Question about this item

Datasheet (PDF) User manual 6 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Up to 100 bar operating pressure: Bosch Rexroth pressure switch HEDE10-3X/100/2/-GI-K35-0 with internal thread G 1/4 connection and connector, 4-pole, M12 x 1, coding A.

Benefits

Max. operating pressure 100 bar
Output signal: 2 switching outputs
Display for pressure values and parameters on the device
Transmission of pressure and diagnostic values via IO-Link
All wetted parts made of stainless steel

Application

For clamping hydraulics, presses and power units where a pressure value has to be reported or passed to the control as a signal. Hydraulic fluid as per manufacturer: HL, HLP, HFC, HETG, HEES, HFD.

Technical data

Feature	Value
Product type	Pressure switch
Type designation	HEDE10-3X/100/2/-GI-K35-0
Operating pressure max.	100 bar
Output signal	2 switching outputs
Supply voltage	24 V DC
Connection diagram	Internal thread G 1/4
Electrical connection	Connector, 4-pole, M12 x 1, coding A
Seals	FKM
Hydraulic fluid	HL, HLP, HFC, HETG, HEES, HFD
Conformity	UKCA - RoHS Directive SI2012/3032
Weight	0.23 kg
Material number	R901425452
Manufacturer	Bosch Rexroth
Hersteller-Nr	R901425452
GPSR Herstellerdaten	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Artikelzustand	New
Artikel-Authentizität	Original product
Country of Manufacture	Germany
Thread	G 1/4 IG
Seal material	FKM
Thread type	Internal thread
Norm	DIN EN 61076-2-101
Operating voltage	24 V DC
Betriebsdruck max [bar]	100
