The PR4-3X/16,00-500RA12V08 differs from the RA01 version in the connection variant of the series and weighs 16.3 kg. It delivers 22 l/min at 16 cm³ displacement and is rated for 500 bar operating pressure.

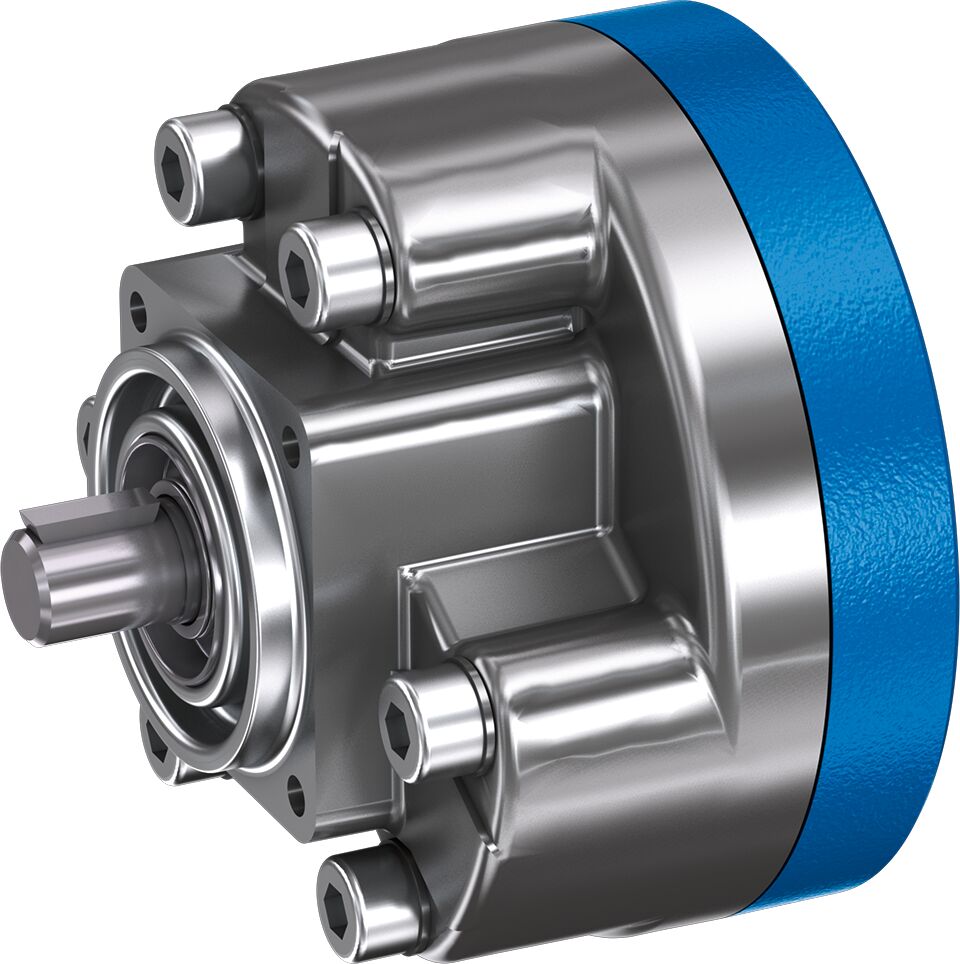

Radial Piston Pump PR4-3X/16,00-500RA12V08 - Bosch Rexroth R901230430
BOSCH REXROTH
Original product
Net price (excl. VAT)
€8,441.05
Item
BRR-R901230430
Manufacturer no.
R901230430
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.R901230430
Country of originGermany
ConditionNew
Artikel
BRR-R901230430
Frequently Bought Together
-
This Item:
€8,441.05
-
Radial Piston Pump PR4-3X/5,00-500RA01M03 - Bosch Rexroth R901088770
€2,371.62
-
Radial Piston Pump PR4-3X/20,00-500RA01M08 - Bosch Rexroth R901089536
€7,945.43
Total price
When replacing a pump, not only the displacement counts but also the variant code. The PR4-3X/16,00-500RA12V08 works with a constant 16 cm³, delivers 22 l/min and takes 500 bar maximum operating pressure in the open circuit.
Benefits
- 16 cm³ constant displacement at 22 l/min flow.
- 500 bar maximum operating pressure, ten pistons in radial design.
- Shaft end cylindrical Ø 25 mm with fitting key to ISO 3019-2, clockwise rotation, no through-drive.
- Fastened by a 4-hole flange with 63 mm centering.
- FKM seals for HLP fluid, cast iron housing, 16.3 kg.
Technical data
| Direction of rotation | clockwise rotation |
| Connection diagram | 5 |
| Displacement type | constant |
| Max. flow | 22 l/min |
| Product family | PR4 |
| Through-drive | without |
| Hydraulic fluid | HLP |
| Shaft end | Cylindrical Ø 25 mm with fitting key, ISO 3019-2 |
| Operating pressure, max. | 500 bar |
| Size | 16 cm³ |
| Seals | FKM |
| Mounting flange | 4-hole fastening centering 63 mm |
| Weight | 16.3 kg |
Applications
The pump feeds high pressure circuits in machine tools, test equipment and clamping systems. Because there is no through-drive, it is fitted to the drive as a single unit. When reordering, quote the complete type code including the RA12 element.
Manufacturer
Bosch Rexroth, material number R901230430. This number designates the version with the RA12 element and FKM seals.
| Norm | ISO 3019-2 |
|---|---|
| Hersteller-Nr | R901230430 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 16.300000 |
| GPSR Herstellerdaten | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
