Logic cover LFA16D-7X/F size 16 up to 420 bar NBR - Bosch Rexroth R900912625

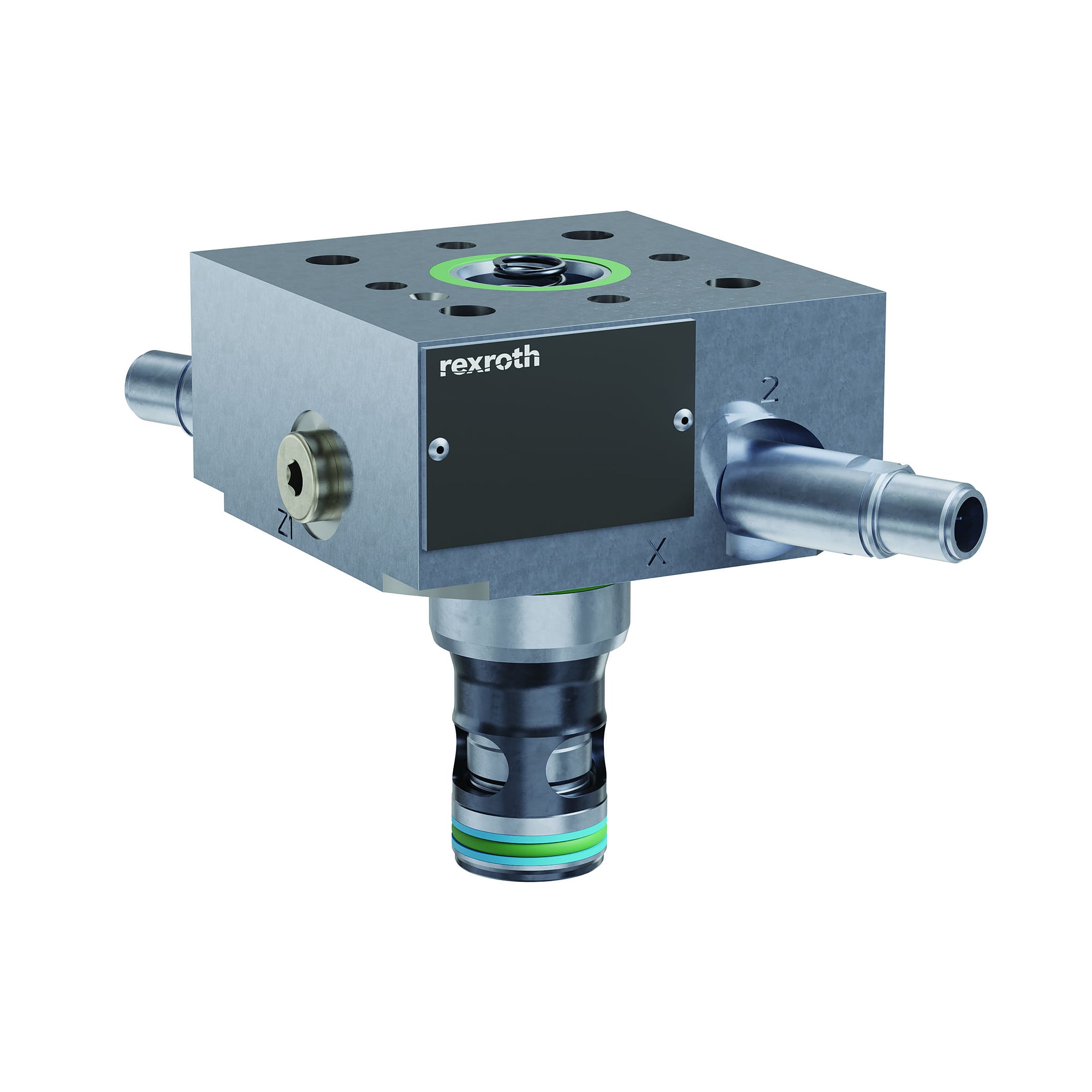

The Bosch Rexroth logic cover LFA16D-7X/F turns a size 16 2-way cartridge valve into a working valve stage for pressures up to 420 bar. Sealed with NBR, the cover closes the size 16 cartridge bore and routes the control channels to the cartridge valve.

Benefits

• Maximum operating pressure 420 bar
• Standardised ISO 7368 connection diagram for size 16 cartridge bores
• Spool symbol D for the switching function per hydraulic symbol
• NBR seals for hydraulic fluids HL, HLP, HLPD, HVLP, HVLPD, HFC
• Subplate mounting directly on the control block, weight 0.82 kg

Applications

The cover is used in control blocks with NG 16 2-way cartridge valves, also as a spare part for the identical type LFA16D-7X/F. Material number R900912625.
