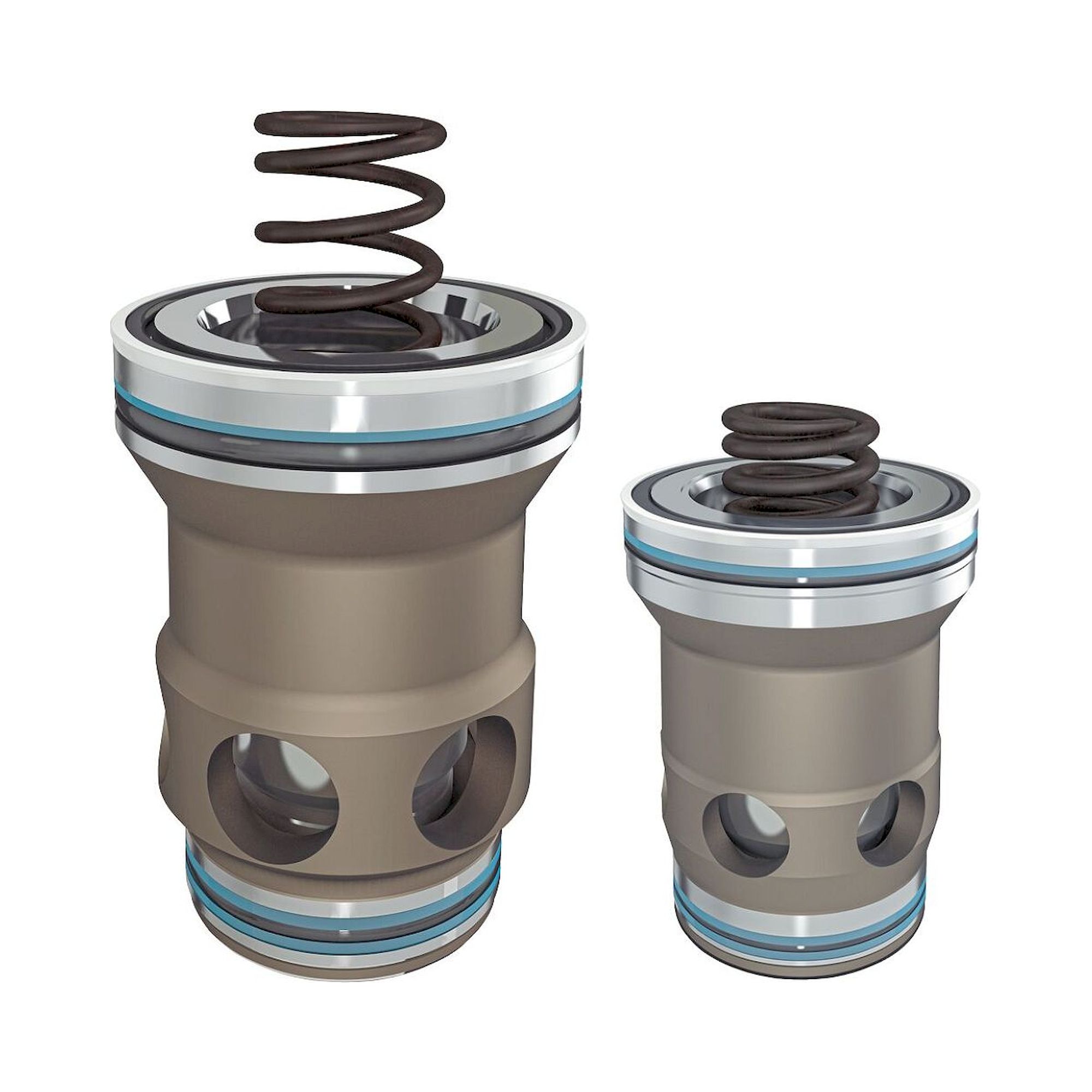

Logic cartridge valve LC80A05D6X/ size 80 6050 l/min 420 bar NBR - Bosch Rexroth R900554857

With LC80A05D6X/, Bosch Rexroth supplies a size 80 logic cartridge valve for up to 420 bar and a max. flow of 6050 l/min. As a cartridge valve it sits directly in the NG 80 bore, the control cover above defines how it is piloted. Hydraulically actuated, the LC80A05D6X/ switches the oil flow direction as shown in the hydraulic symbol.

Benefits

• High flow: max. 6050 l/min
• Rated for operating pressures up to 420 bar
• Standardised cartridge bore to ISO 7368
• Spool symbol A5D, 2 switching positions
• NBR seals for hydraulic fluids HL, HLP, HLPD, HVLP, HVLPD, HFC
• Weight 12.54 kg

Applications

Used in size 80 logic control blocks, as a replacement or for new builds. Order reference: material number R900554857, type LC80A05D6X/.
