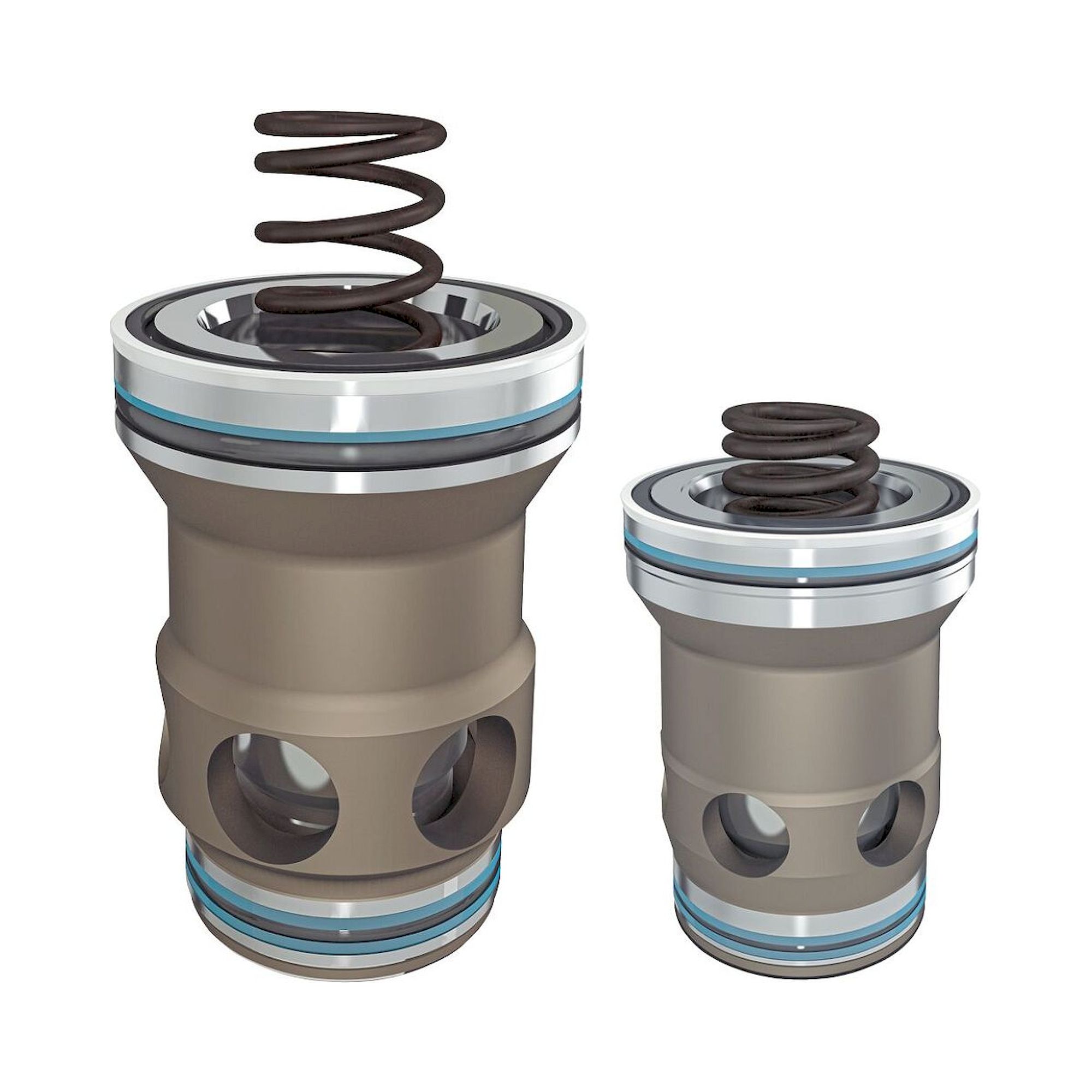

Logic cartridge valve LC100A20E6X/ size 100 11500 l/min 420 bar NBR - Bosch Rexroth R900551759

Bosch Rexroth LC100A20E6X/: size 100 logic cartridge valve with 420 bar operating pressure and a max. flow of 11500 l/min. The valve is inserted into the NG 100 cartridge bore and piloted via a logic cover. According to the hydraulic symbol, the hydraulically actuated LC100A20E6X/ switches the oil flow direction.

Benefits

• Up to 11500 l/min flow at NG 100
• Maximum operating pressure 420 bar
• Installation dimensions to ISO 7368, size 100
• Spool symbol A20E, 2 switching positions
• NBR seals for hydraulic fluids HL, HLP, HLPD, HVLP, HVLPD, HFC
• Weight 23.26 kg

Applications

For control blocks with an NG 100 cartridge bore in stationary hydraulic systems, combined with a matching logic cover. Reorder using material number R900551759.
