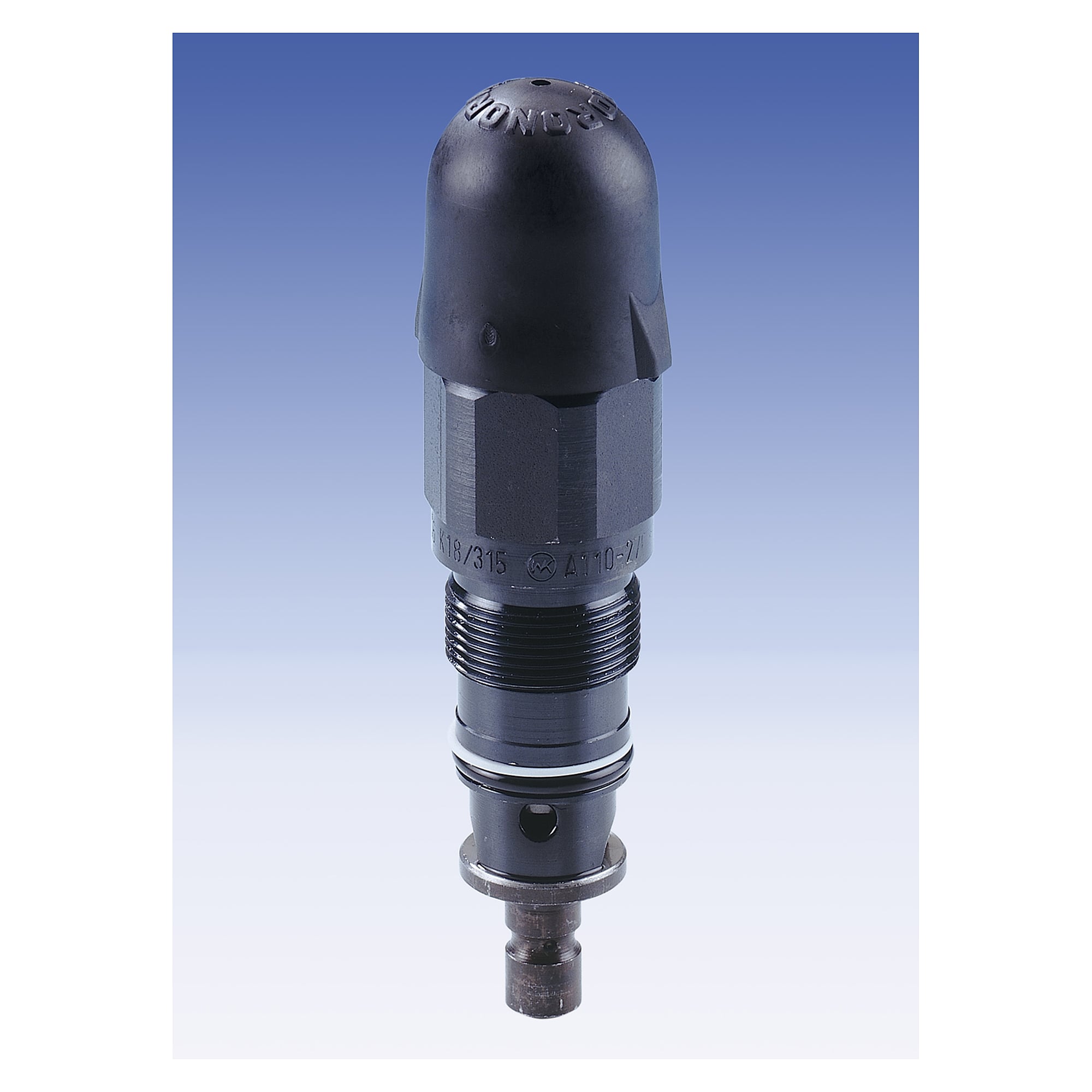

Pressure relief valve DBDS10G1X/100, pipe thread G 1/2, size 10, 100 bar, 120 l/min, NBR seals - Bosch Rexroth R900424738

Name: Pressure relief valve DBDS10G1X/100, pipe thread G 1/2, size 10, 100 bar, 120 l/min, NBR seals - Bosch Rexroth R900424738
Brand: Bosch Rexroth
SKU: BRR-R900424738
Price: 389.48 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Overload protection for pump and actuators up to 100 bar: pressure relief valve DBDS10G1X/100, threaded connection, size 10, max. 120 l/min. Connection diagram pipe thread G1/2 ISO 228-1, NBR seals, material number R900424738, weight 3.58 kg.

Net

€389.48

excl. VAT

Item BRR-R900424738

Manufacturer no. R900424738

Question about this item

Datasheet (PDF) User manual 12 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Up to 100 bar at flow rates up to 120 l/min, the pressure relief valve DBDS10G1X/100 in size 10 protects the hydraulic circuit. When pressure rises above the setting, DBDS10G1X/100 opens from P to T and keeps pump and actuators in the safe range.

Benefits

100 bar: maximum operating pressure of DBDS10G1X/100 according to the manufacturer.
120 l/min flow: maximum throughput in size 10.
Pipe thread G 1/2 to ISO 228-1: DBDS10G1X/100 installs directly in the line.
NBR seals: DBDS10G1X/100 is suitable for hydraulic fluid HL, HLP, HLPD, HVLP, HVLPD, HFC.

Applications

Overload protection in hydraulic circuits for mechanical engineering. To replace an existing DBDS10G1X/100, material number R900424738 is all you need.

Technical data

Type	DBDS10G1X/100
Material number	R900424738
Product type	Pressure relief valve
Size	10
Operating pressure (max.)	100 bar
Max. flow	120 l/min
Type of connection	Threaded connection
Connection diagram	Pipe thread G1/2 ISO 228-1
Number of ports	2
Number of switching positions	2
Type of actuation	With mechanical actuation
Spool symbol	P to T
Seals	NBR
Hydraulic fluid	HL, HLP, HLPD, HVLP, HVLPD, HFC
Weight	3.58 kg
Manufacturer	Bosch Rexroth
Hersteller-Nr	R900424738
GPSR Herstellerdaten	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Artikelzustand	New
Artikel-Authentizität	Original product
Country of Manufacture	Germany
Bauform	Gewindeanschluss
Thread	G 1/2
Seal material	NBR
Function	Druckbegrenzung
Thread standard	DIN EN ISO 228-1
Flow rate [l/min]	120
Actuation type	Mechanical
Betriebsdruck max [bar]	100
