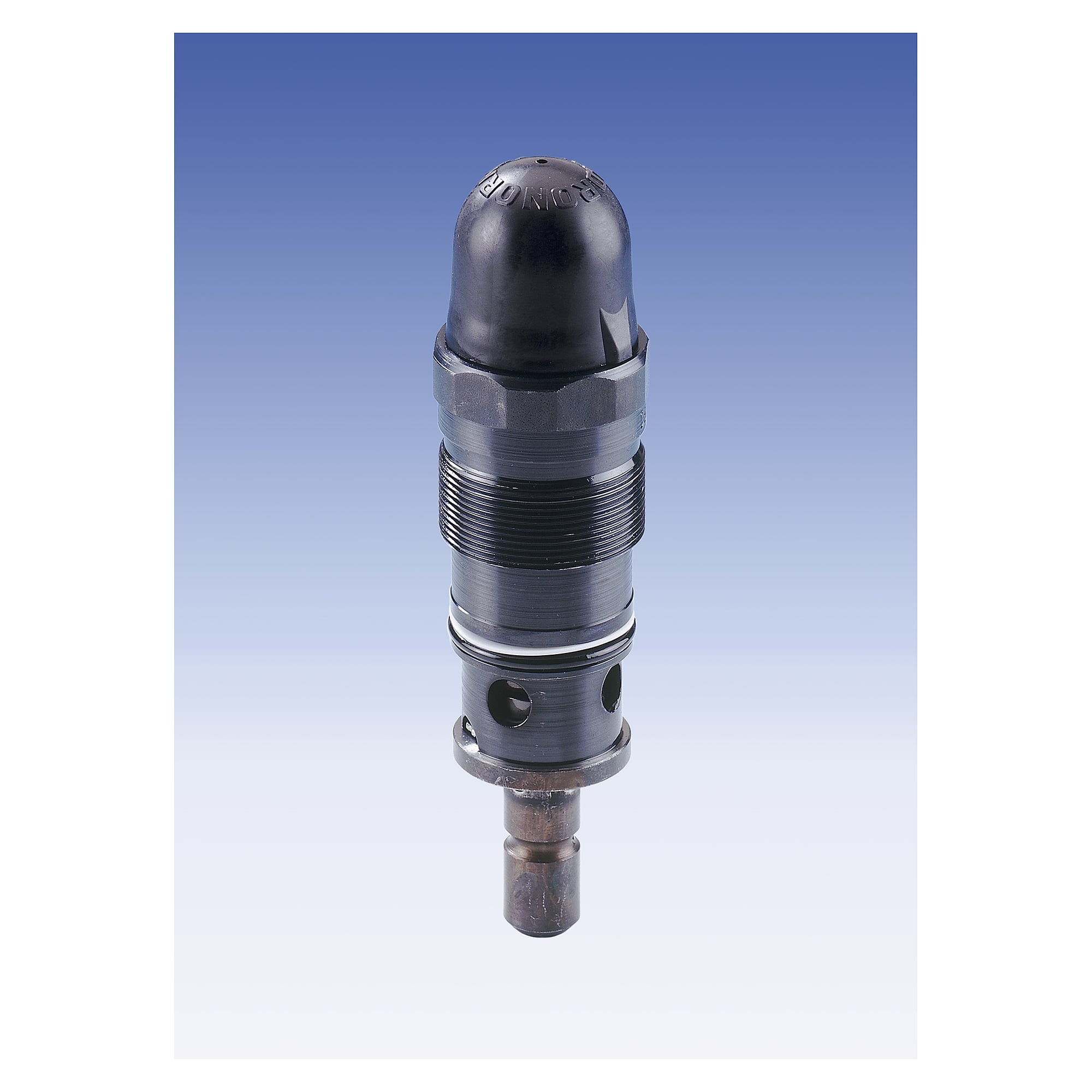

Pressure relief valve DBDS20G1X/100 pipe thread G1 NG 20 max. 100 bar NBR - Bosch Rexroth R900424170

Name: Pressure relief valve DBDS20G1X/100 pipe thread G1 NG 20 max. 100 bar NBR - Bosch Rexroth R900424170
Brand: Bosch Rexroth
SKU: BRR-R900424170
Price: 595.00 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

The Bosch Rexroth DBDS20G1X/100 keeps pressure below the set value, excess oil flows from P to T back to tank. Size NG 20, pipe thread G1, up to 100 bar and 235 l/min, NBR seals. Original Bosch Rexroth, material number R900424170, weight 6.74 kg.

Net

€595.00

excl. VAT

Item BRR-R900424170

Manufacturer no. R900424170

Question about this item

Datasheet (PDF) User manual 12 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The DBDS20G1X/100 pressure relief valve (NG 20) limits the highest pressure in the circuit to a set value. It is rated for up to 100 bar operating pressure at a maximum of 235 l/min.

Benefits

G1 pipe thread to ISO 228-1 for direct in-line installation
Rated for 100 bar max. operating pressure
Handles up to 235 l/min
Flow path P to T: excess oil returns directly to tank
Mechanical actuation, set directly on the valve
NBR seals

Applications

Suited as a safety valve in the circuit, design: pipe thread G1. Genuine Bosch Rexroth part, material number R900424170.

Technical data

Type	DBDS20G1X/100
Material number	R900424170
Product type	Pressure relief valve
Size	NG 20
Type of connection	Threaded connection
Connection diagram	Pipe thread G1 ISO 228-1
Type of actuation	with mechanical actuation
Spool symbol	P to T
Number of switching positions	2
Number of ports	2
Operating pressure max.	100 bar
Max. flow	235 l/min
Seals	NBR
Hydraulic fluid	HL, HLP, HLPD, HVLP, HVLPD, HFC
Weight	6.74 kg
Manufacturer	Bosch Rexroth
Hersteller-Nr	R900424170
GPSR Herstellerdaten	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Artikelzustand	New
Artikel-Authentizität	Original product
Country of Manufacture	Germany
Ausführung	Gewindeanschluss NG20
Bauform	Gewindeanschluss
Thread	G 1
Seal material	NBR
Function	Druckbegrenzung
Thread standard	DIN EN ISO 228-1
Actuation type	Mechanical
Norm	DIN EN ISO 228-1
Betriebsdruck max [bar]	100
