This pinch valve shuts off abrasive, fibrous and solid-laden media by squeezing an elastic sleeve together with compressed air. A key figure is the nominal size DN 100 in a full bore. Size G 4", DN 100, 280 mm long, material stainless steel.
Pneumatic pinch valve, G 4", stainless steel, sleeve food grade natural rubber, L 280 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€3,149.06
Item
FL-306811
Manufacturer no.
QVMC 40 ES
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.QVMC 40 ES
EAN4050571563097
Customs tariff number84818087
ConditionNew
Artikel
FL-306811
Frequently Bought Together
-
This Item:
€3,149.06
-

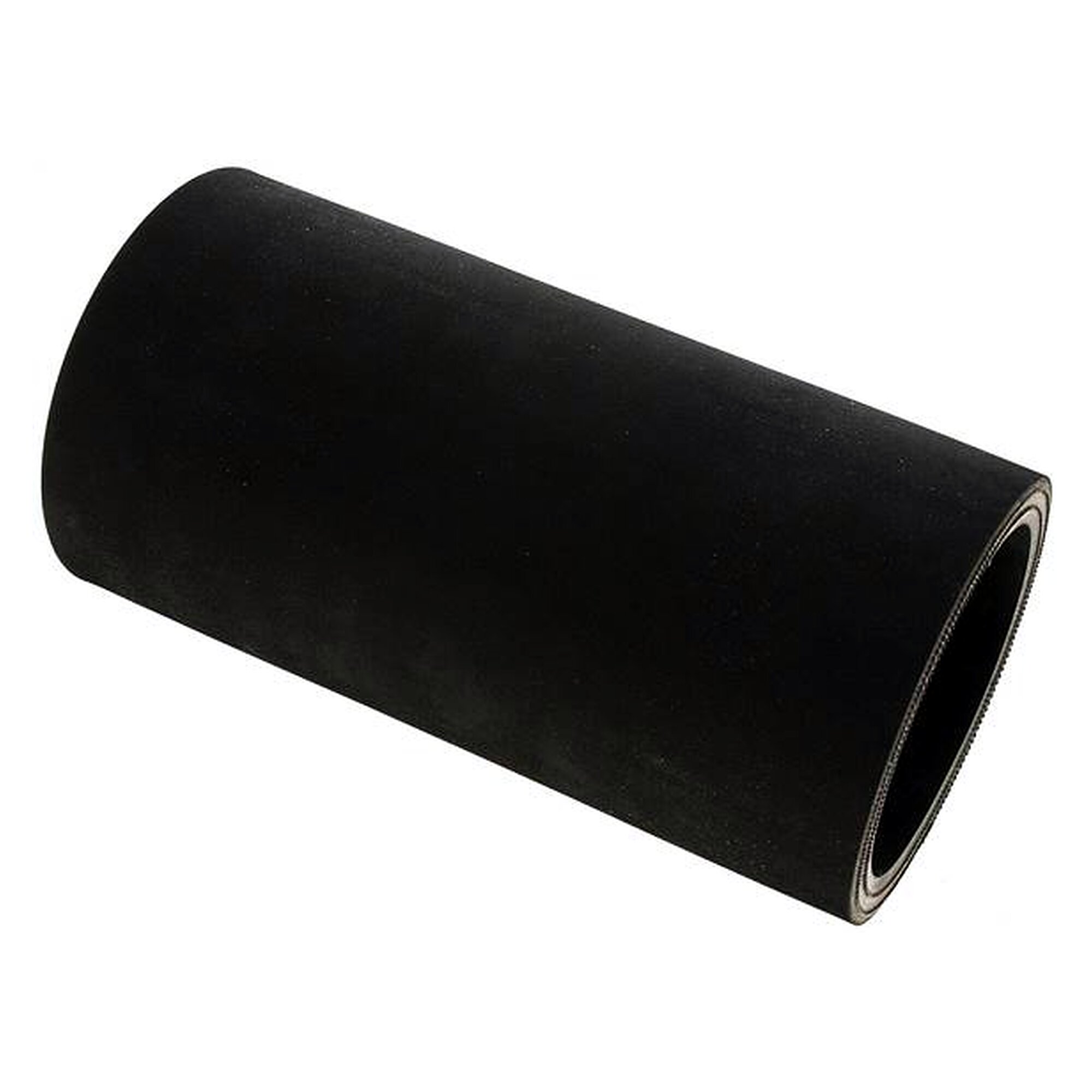

Replacement sleeve for pinch valves, DN 80, EPDM, -10 to +120 °C
€356.38
-
Pneumatic pinch valve, G 3/8", stainless steel, sleeve silicone, L 122 mm
€589.56
Total price
As a pinch valve the article shuts off abrasive, fibrous and solid-laden media by squeezing an elastic sleeve together with compressed air. This version comes with female thread G 4", nominal size DN 100 and overall length 280 mm. It is complemented by the female thread G 4".
Benefits
- Nominal size DN 100 over the full bore, so there are no dead spaces and no clogging.
- Female thread G 4" on both sides with an overall length of 280 mm.
- Control port G 1/4" for the compressed air, control pressure up to PN 6.
- Body made of stainless steel with a sleeve of food grade natural rubber.
- Temperature range -10 to +80 °C depending on the sleeve material.
- Open in the rest position, the medium flows through the body without being deflected.
Technical data
| Body material | stainless steel |
|---|---|
| Version | pinch valve with a natural rubber sleeve (food grade) |
| Female thread G | G 4" |
| Nominal size DN [mm] | 100 |
| Overall length L [mm] | 280 |
| Control port A | G 1/4" |
| Temperature range [°C] | -10 to +80 |
| Sleeve material | food grade natural rubber |
| Rest position | open |
| Control pressure | PN 6 |
| Bore | full cross section, free of dead spaces |
Applications
In process engineering the valve with its 280 mm overall length controls fibrous and solid-laden liquids.
| Manufacturer | Fluidics equipment |
|---|---|
| Hersteller-Nr | QVMC 40 ES |
| EAN | 4050571563097 |
| Zolltarifnummer | 84818087 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Quetschventil, Manschette aus Naturgummi (Lebensmittelqualität) |
| Material | Stainless steel |
| Temperaturbereich | -10-80 °C |
