The pinch valve shuts off abrasive, fibrous and solid-laden media by squeezing an elastic sleeve together with compressed air. The underlying rating is the nominal size DN 10 in a full bore. G 3/8", DN 10, 80 mm long in stainless steel.
Pneumatic pinch valve, G 3/8", stainless steel, sleeve EPDM, L 80 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€397.20
Item
FL-306767
Manufacturer no.
QVMC 38 ES-EP
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.QVMC 38 ES-EP
EAN4050571563059
Customs tariff number84818087
ConditionNew
Artikel
FL-306767
Frequently Bought Together
-
This Item:
€397.20
-

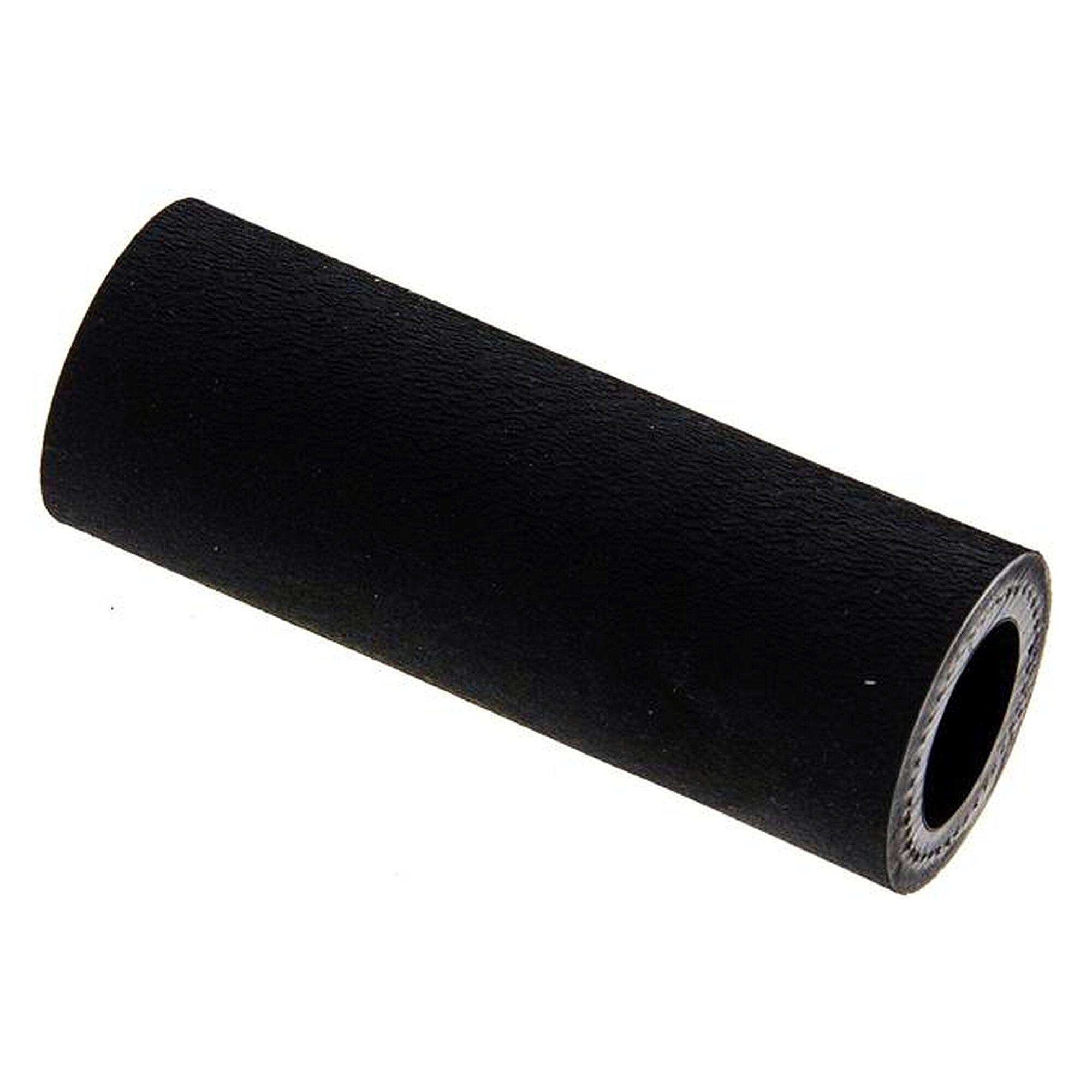

Replacement sleeve for pinch valves, DN 15, abrasion resistant natural rubber
€58.22
-
Pneumatic pinch valve, G 1-1/2", aluminium, sleeve abrasion resistant natural rubber, L 160 mm
€551.19
Total price
Once installed, the pinch valve shuts off abrasive, fibrous and solid-laden media by squeezing an elastic sleeve together with compressed air. The data also state the female thread G 3/8". Decisive for the selection is the nominal size DN 10 in a full bore.
Benefits
- Nominal size DN 10 over the full bore, so there are no dead spaces and no clogging.
- Female thread G 3/8" on both sides with an overall length of 80 mm.
- Control port G 1/8" for the compressed air, control pressure up to PN 6.
- Body made of stainless steel with a sleeve of EPDM.
- Temperature range -10 to +120 °C depending on the sleeve material.
- Open in the rest position, the medium flows through the body without being deflected.
Technical data
| Body material | stainless steel |
|---|---|
| Version | pinch valve with an EPDM sleeve |
| Female thread G | G 3/8" |
| Nominal size DN [mm] | 10 |
| Overall length L [mm] | 80 |
| Control port A | G 1/8" |
| Temperature range [°C] | -10 to +120 |
| Sleeve material | EPDM |
| Rest position | open |
| Control pressure | PN 6 |
| Bore | full cross section, free of dead spaces |
Applications
In bulk material handling the DN 10 valve shuts off granulate, powder and pellets without material settling in it.
| Weight | 0.420000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | QVMC 38 ES-EP |
| EAN | 4050571563059 |
| Zolltarifnummer | 84818087 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Quetschventil, Manschette aus EPDM |
| Material | Stainless steel |
| Temperaturbereich | -10-120 °C |
