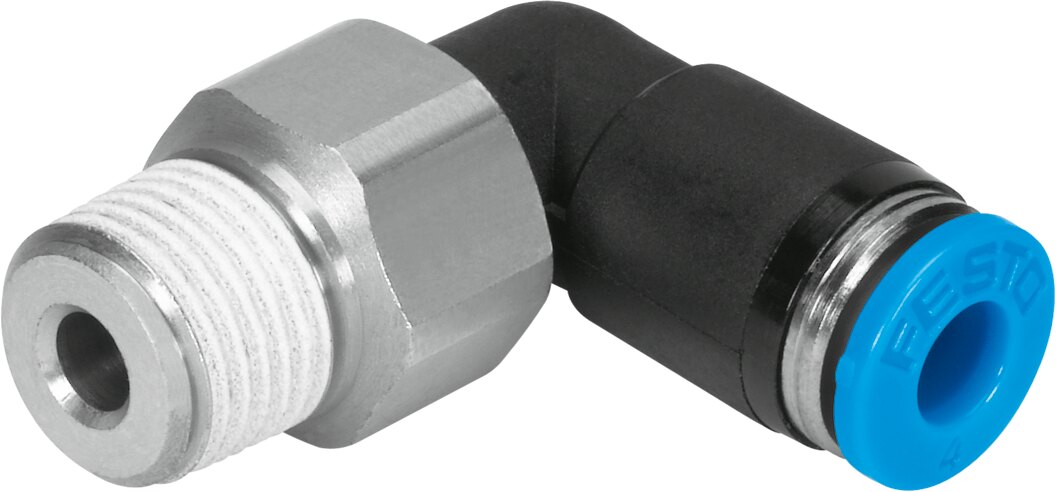

Push-in L-fitting 1/2 NPT for 1/2" tubing QSRL-1/2-1/2-U - Festo 153974
Built for a 1/2 NPT thread and 1/2" OD tubing, the QSRL-1/2-1/2-U makes the compressed-air connection without tools. Pressure range -0.95 to 10 bar, ambient temperature -10 to 60 °C. Housing made of PBT.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Up to 10 bar operating pressure and vacuum down to -0.95 bar: the Festo QSRL-1/2-1/2-U is designed for a 1/2 NPT thread and 1/2" tubing. Permissible ambient temperature -10 to 60 °C.
Benefits
- Operating pressure -0.95 to 10 bar across the full temperature range
- For compressed air to ISO 8573-1:2010 [7:-:-], lubricated operation possible
- Corrosion resistance class CRC 1, tubing clamp segment in stainless steel
- Threaded stud sealed by coating, maximum tightening torque 30 Nm
- Ambient temperature -10 to 60 °C
- PWIS (LABS) conformity VDMA24364-B1/B2-L
Applications
On the QSRL-1/2-1/2-U the tubing leaves the port sideways in an L-shape. The QSRL-1/2-1/2-U is tightened via an external hexagon 1. Any mounting position is allowed. Screwed into valves, cylinders or manifolds with 1/2 NPT, the QSRL-1/2-1/2-U feeds compressed air into the tubing line.
Technical data
| Feature | Value |
|---|---|
| Type | QSRL-1/2-1/2-U |
| Festo part number | 153974 |
| Size | Standard |
| Seal type on threaded stud | Coating |
| Mounting position | Any |
| Design | L-shape |
| Design structure | Push-pull principle |
| Operating pressure across the full temperature range | -0.95 to 10 bar |
| Marine classification | See certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| PWIS (LABS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 to 60 °C |
| Maximum tightening torque | 30 Nm |
| Mounting type | External hexagon 1 |
| Pneumatic connection 1 | Male thread 1/2 NPT |
| Pneumatic connection 2 | For tubing OD 1/2" |
| Release ring colour | Grey |
| Note on materials | RoHS compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp segment | High-alloy stainless steel |
| Weight | 95 g |
| Manufacturer | Festo |
| Hersteller-Nr | QSRL-1/2-1/2-U |
| EAN | 4052568311292 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Thread | NPT 1/2 |
| Size BG | Standard |
| Medium | Compressed air |
| Thread type | External thread |
| Series | QSRL |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/2 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
