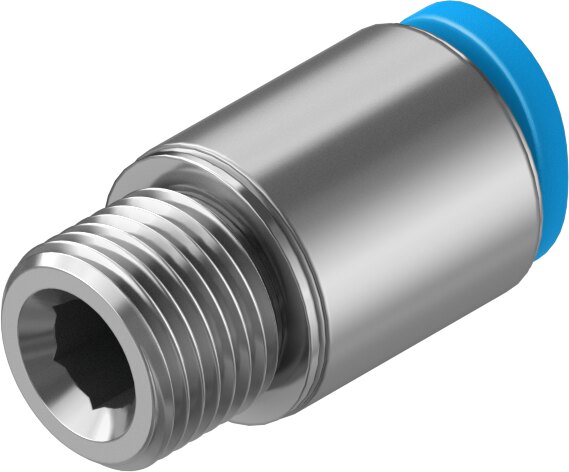

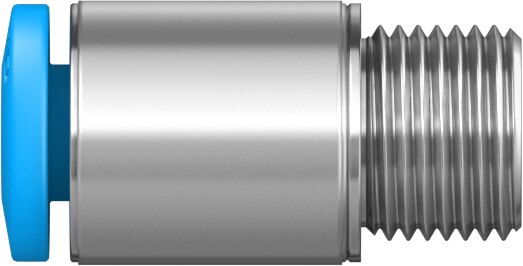

Push-in fitting M7 for 3/16" tubing QSM-M7-3/16-I-U-M - Festo 183739

Festo ✓ Original product Brand new

The Festo QSM-M7-3/16-I-U-M connects 3/16" OD tubing directly to an M7 thread, and the tube is inserted without tools. Operating pressure -0.95 to 10 bar across the full temperature range of 0 to 60 °C, so vacuum is covered too.

Net
€2.03
excl. VAT
Item FES-183739
Manufacturer no. QSM-M7-3/16-I-U-M
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Up to 10 bar operating pressure and vacuum down to -0.95 bar: the Festo QSM-M7-3/16-I-U-M is designed for an M7 thread and 3/16" tubing. Permissible ambient temperature 0 to 60 °C.

Benefits

  • Operating pressure -0.95 to 10 bar across the full temperature range
  • Ambient temperature 0 to 60 °C
  • Threaded stud sealed by sealing ring, nominal tightening torque 3.35 Nm ± 20 %
  • Corrosion resistance class CRC 1, tubing clamp segment in stainless steel
  • For compressed air to ISO 8573-1:2010 [7:-:-], lubricated operation possible
  • Nominal size 2.108 mm

Applications

Size Mini, matching 3/16" OD tubing. The QSM-M7-3/16-I-U-M is tightened via a hexagon socket a/f 3. Any mounting position is allowed. Screwed into valves, cylinders or manifolds with M7, the QSM-M7-3/16-I-U-M feeds compressed air into the tubing line.

Technical data

FeatureValue
TypeQSM-M7-3/16-I-U-M
Festo part number183739
SizeMini
Nominal size2.108 mm
Seal type on threaded studSealing ring
Mounting positionAny
DesignStraight
Design structurePush-pull principle
Operating pressure across the full temperature range-0.95 to 10 bar
Marine classificationSee certificate
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating mediumLubricated operation possible
Corrosion resistance class CRC1 - low corrosion stress
PWIS (LABS) conformityVDMA24364-B1/B2-L
Ambient temperature0 to 60 °C
Nominal tightening torque3.35 Nm
Tolerance of nominal tightening torque± 20 %
Mounting typeHexagon socket A/F 3
Pneumatic connection 1Male thread M7
Pneumatic connection 2For tubing OD 3/16"
Release ring colourGrey
Note on materialsRoHS compliant
Material housingNickel-plated
Material release ringPOM
Material tubing sealNBR
Material tubing clamp segmentHigh-alloy stainless steel
Weight6 g
ManufacturerFesto
Hersteller-NrQSM-M7-3/16-I-U-M
EAN4052568321925
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadM7
Size BGMini
MediumCompressed air
Thread typeExternal thread
SeriesQSM
Betriebsdruck max [bar]10
Pneumatic connectionM7
Temperaturbereich0-60 °C
Temperature (max.)60
