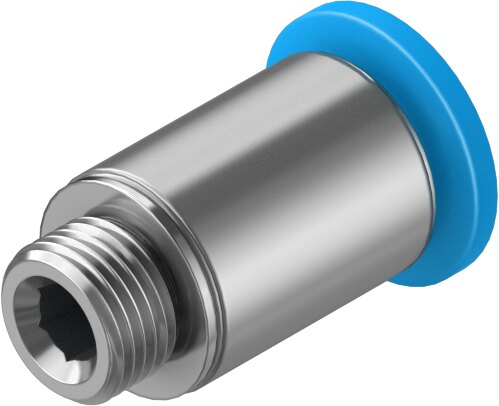

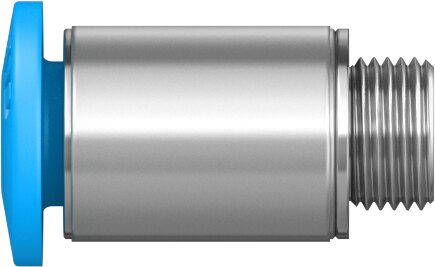

Push-in fitting M5 for 1/8" tubing QSM-M5-1/8-I-U-M - Festo 183749
With the Festo QSM-M5-1/8-I-U-M, 1/8" OD tubing goes onto an M5 thread without any tools. Rated for -0.95 to 10 bar at 0 to 60 °C ambient temperature.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Fitted using the push-pull principle, the Festo QSM-M5-1/8-I-U-M holds -0.95 to 10 bar across the full temperature range and is designed for an M5 thread and 1/8" tubing. Permissible ambient temperature 0 to 60 °C.
Benefits
- Operating pressure -0.95 to 10 bar across the full temperature range
- Threaded stud sealed by sealing ring, nominal tightening torque 1.33 Nm ± 20 %
- Ambient temperature 0 to 60 °C
- Corrosion resistance class CRC 1, tubing clamp segment in stainless steel
- For compressed air to ISO 8573-1:2010 [7:-:-], lubricated operation possible
- PWIS (LABS) conformity VDMA24364-B1/B2-L
Applications
Size Mini, matching 1/8" OD tubing. The QSM-M5-1/8-I-U-M is tightened via a hexagon socket a/f 2. Any mounting position is allowed.. The QSM-M5-1/8-I-U-M typically sits in the M5 port of a valve, cylinder or manifold rail.
Technical data
| Feature | Value |
|---|---|
| Type | QSM-M5-1/8-I-U-M |
| Festo part number | 183749 |
| Size | Mini |
| Nominal size | 2.007 mm |
| Seal type on threaded stud | Sealing ring |
| Mounting position | Any |
| Design | Straight |
| Design structure | Push-pull principle |
| Operating pressure across the full temperature range | -0.95 to 10 bar |
| Marine classification | See certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| PWIS (LABS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 0 to 60 °C |
| Nominal tightening torque | 1.33 Nm |
| Tolerance of nominal tightening torque | ± 20 % |
| Mounting type | Hexagon socket A/F 2 |
| Pneumatic connection 1 | Male thread M5 |
| Pneumatic connection 2 | For tubing OD 1/8" |
| Release ring colour | Grey |
| Note on materials | RoHS compliant |
| Material housing | Nickel-plated |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp segment | High-alloy stainless steel |
| Weight | 3.5 g |
| Manufacturer | Festo |
| Hersteller-Nr | QSM-M5-1/8-I-U-M |
| EAN | 4052568322021 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | M5 |
| Size BG | Mini |
| Medium | Compressed air |
| Thread type | External thread |
| Series | QSM |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | M5 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
