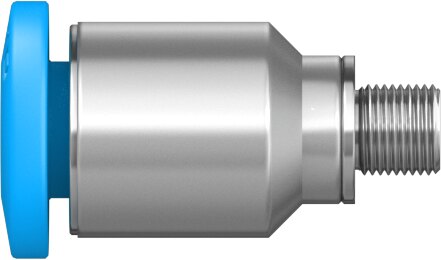

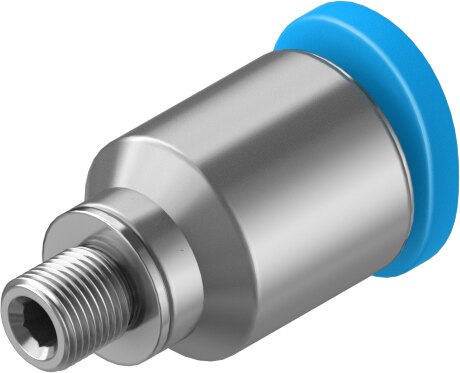

Push-in fitting M3 for 3/16" tubing QSM-M3-3/16-I-U-M - Festo 183752

Festo ✓ Original product Brand new

Screw into M3, push in 3/16" OD tubing: the Festo QSM-M3-3/16-I-U-M joins both using the push-pull principle. Designed for -0.95 to 10 bar operating pressure and 0 to 60 °C ambient.

Net
€3.41
excl. VAT
Item FES-183752
Manufacturer no. QSM-M3-3/16-I-U-M
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Fitted using the push-pull principle, the Festo QSM-M3-3/16-I-U-M holds -0.95 to 10 bar across the full temperature range and is designed for an M3 thread and 3/16" tubing. Permissible ambient temperature 0 to 60 °C.

Benefits

  • Operating pressure -0.95 to 10 bar across the full temperature range
  • Threaded stud sealed by sealing ring, nominal tightening torque 0.48 Nm ± 55 %
  • PWIS (LABS) conformity VDMA24364-B1/B2-L
  • For compressed air to ISO 8573-1:2010 [7:-:-], lubricated operation possible
  • Corrosion resistance class CRC 1, tubing clamp segment in stainless steel
  • Ambient temperature 0 to 60 °C

Applications

Size Mini, matching 3/16" OD tubing. The QSM-M3-3/16-I-U-M is tightened via a hexagon socket a/f 1.5. Any mounting position is allowed. The QSM-M3-3/16-I-U-M typically sits in the M3 port of a valve, cylinder or manifold rail.

Technical data

FeatureValue
TypeQSM-M3-3/16-I-U-M
Festo part number183752
SizeMini
Nominal size1.397 mm
Seal type on threaded studSealing ring
Mounting positionAny
DesignStraight
Design structurePush-pull principle
Operating pressure across the full temperature range-0.95 to 10 bar
Marine classificationSee certificate
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating mediumLubricated operation possible
Corrosion resistance class CRC1 - low corrosion stress
PWIS (LABS) conformityVDMA24364-B1/B2-L
Ambient temperature0 to 60 °C
Nominal tightening torque0.48 Nm
Tolerance of nominal tightening torque± 55 %
Mounting typeHexagon socket A/F 1.5
Pneumatic connection 1Male thread M3
Pneumatic connection 2For tubing OD 3/16"
Release ring colourGrey
Note on materialsRoHS compliant
Material housingNickel-plated
Material release ringPOM
Material tubing sealNBR
Material tubing clamp segmentHigh-alloy stainless steel
Weight3.5 g
ManufacturerFesto
Hersteller-NrQSM-M3-3/16-I-U-M
EAN4052568322052
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadM3
Size BGMini
MediumCompressed air
Thread typeExternal thread
SeriesQSM
Betriebsdruck max [bar]10
Pneumatic connectionM3
Temperaturbereich0-60 °C
Temperature (max.)60
