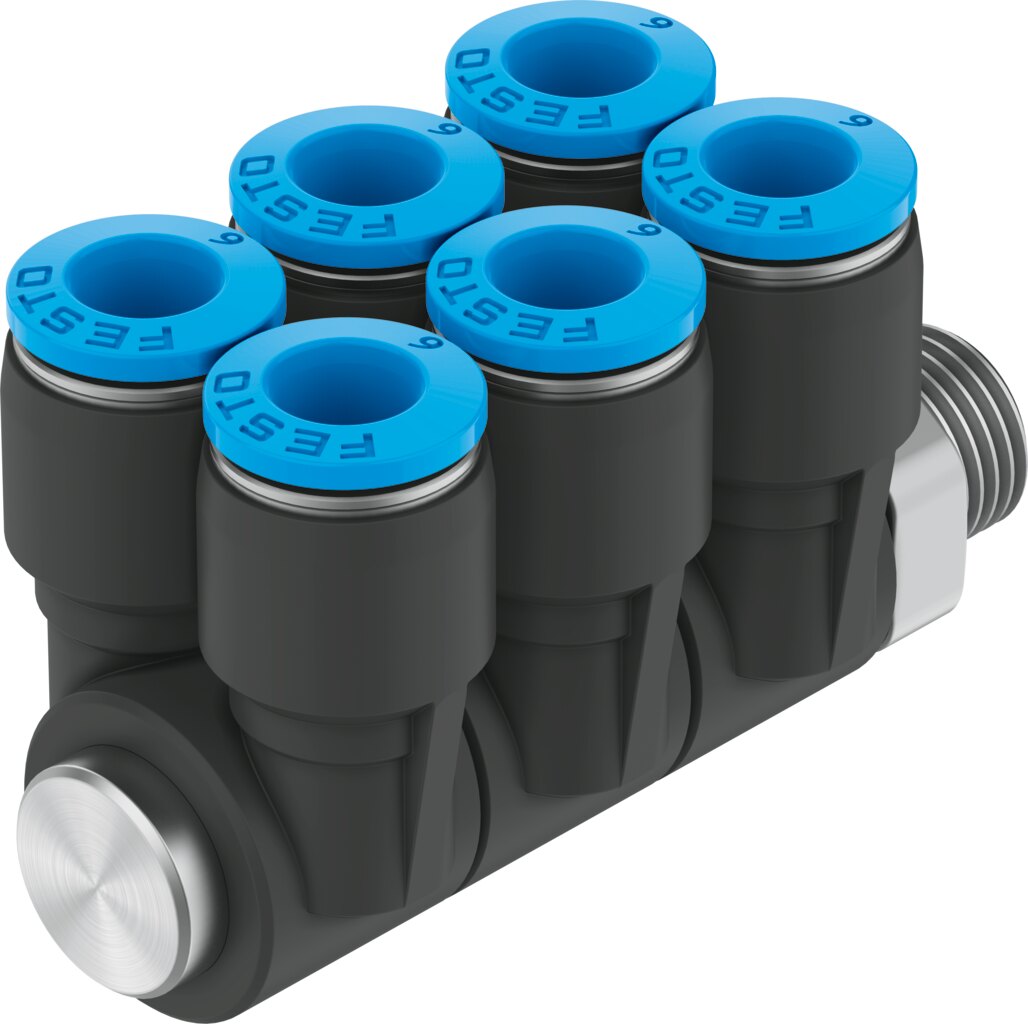

Multiple distributor with 6 outlets, male thread 1/2 NPT to tubing OD 1/2 in QSLV6-1/2-1/2-U - Festo 190811

Festo ✓ Original product Brand new

The QSLV6-1/2-1/2-U multiple distributor splits the compressed air from one supply line into 6 tubing outlets right at the threaded port. Inlet male thread 1/2 NPT, outlets tubing OD 1/2 in. Usable from vacuum (-0.95 bar) up to 10 bar.

Net
€28.75
excl. VAT
Item FES-190811
Manufacturer no. QSLV6-1/2-1/2-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The QSLV6-1/2-1/2-U multiple distributor splits the compressed air from one supply line into 6 tubing outlets right at the threaded port. Usable from vacuum (-0.95 bar) up to 10 bar.

Why the QSLV6-1/2-1/2-U

  • 6 outlets for tubing OD 1/2 in from one port
  • Push-in connections based on the push-pull principle, insert the tubing and release it via the release ring
  • Operating pressure -0.95 to 10 bar, vacuum-capable
  • Nominal width 6.5 mm
  • Ambient temperature -10 to 60 °C
  • Housing made of PBT

Applications

For compact pneumatic set-ups in which one supply line feeds several consumers.

Technical data

FeatureValue
TypeQSLV6-1/2-1/2-U
Festo part number190811
Product typeMultiple distributor
SizeStandard
Nominal width6.5 mm
Seal type on threaded studcoating
Mounting positionany
Designpush-pull principle
Operating pressure across the full temperature range-0.95 to 10 bar
Marine classificationsee certificate
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating mediumLubricated operation possible
Corrosion resistance class CRC1 - low corrosion stress
PWIS (LABS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 to 60 °C
Maximum tightening torque30 Nm
Number of outlets6
Number of supply ports1
Pneumatic connection 1Male thread 1/2 NPT
Pneumatic connection 2For tubing OD 1/2 in
Colour of release ringgrey
Threaded stud materialNickel-plated brass
Material noteRoHS compliant
Housing materialPBT
Release ring materialPOM
Tube seal materialNBR
Tube clamping segment materialHigh-alloy stainless steel
Weight0.22 kg
ManufacturerFesto
Hersteller-NrQSLV6-1/2-1/2-U
EAN4052568324001
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
ThreadNPT 1/2 AG
Nominal size DN [mm]6,5
Seal materialNBR
MediumCompressed air
Thread typeExternal thread
SeriesQSLV
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/2 AG
Temperaturbereich-10-60 °C
Temperature (max.)60
