Push-in L-connector with plug sleeve Ø 1/4" for tubing O.D. 1/4" QSL-1/4HL-U - Festo 153659

Festo ✓ Original product Brand new

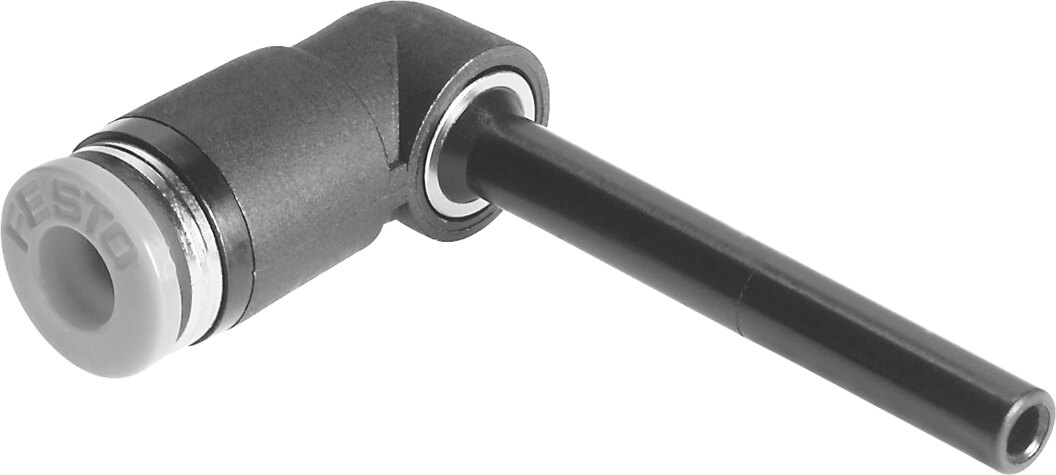

Via its plug sleeve Ø 1/4", the Festo push-in L-connector QSL-1/4HL-U sits directly in the push-in port and serves one tube at 90° with O.D. 1/4". With -0.95 to 10 bar operating pressure it also suits vacuum lines, permitted ambient temperature is -10 to 60 °C.

Net
€4.98
excl. VAT
Item FES-153659
Manufacturer no. QSL-1/4HL-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Via its plug sleeve Ø 1/4", the Festo push-in L-connector QSL-1/4HL-U sits directly in the push-in port and serves one tube at 90° with O. D. 1/4". The 1/4" tube locks when pushed in and can be pulled out again after pressing the grey release ring.

Benefits

  • Pressure and vacuum -0.95 to 10 bar, so also suitable for vacuum
  • Temperature range -10 to 60 °C ambient temperature
  • Flow nominal size 3.1 mm
  • Grip and sealing clamping segment in high-alloy stainless steel, tubing seal in NBR
  • PWIS PWIS conformity VDMA24364-B1/B2-L, relevant for paint shops

Applications

Well suited to tight installation spaces, as the tubing (tubing O. D. 1/4") leaves without a bending radius. Designed for compressed air to ISO 8573-1:2010 [7:-:-] at 3.1 mm nominal size. Lubricated operation is possible. Housing in PBT, RoHS compliant.

Technical data

FeatureValue
TypeQSL-1/4HL-U
Festo part number153659
SizeStandard
Nominal size3.1 mm
Mounting positionAny
DesignL-shape, long
ConstructionPush-pull principle
Operating pressure complete temperature range-0.95 to 10 bar
Maritime classificationSee certificate
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 to 60 °C
Product weight4.3 g
Pneumatic connection, port 1Push-in sleeve Ø 1/4"
Pneumatic connection, port 2For tubing outside diameter of 1/4"
Colour of release ringGrey
Note on materialsRoHS compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
Weight0.004 kg
ManufacturerFesto
Hersteller-NrQSL-1/4HL-U
EAN4052568310462
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
BauformL-Form, lang
Nominal size DN [mm]3,1
Size BGStandard
Seal materialNBR
MediumCompressed air
SeriesQSL
Betriebsdruck max [bar]10
Temperaturbereich-10-60 °C
Temperature (max.)60
