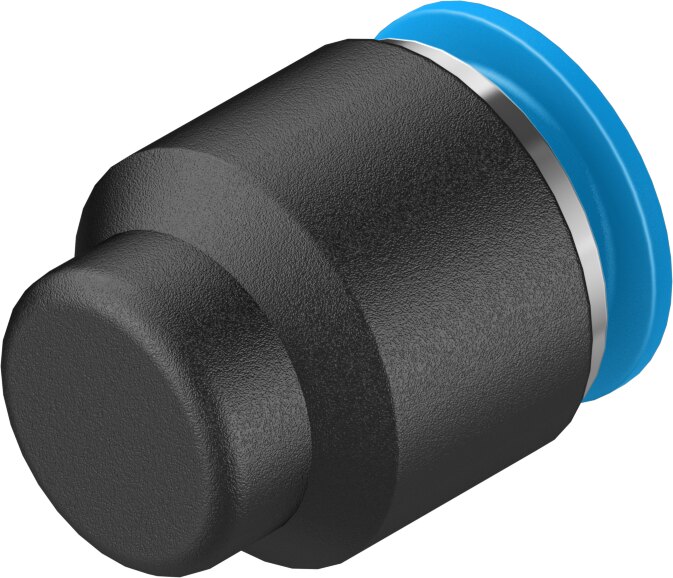

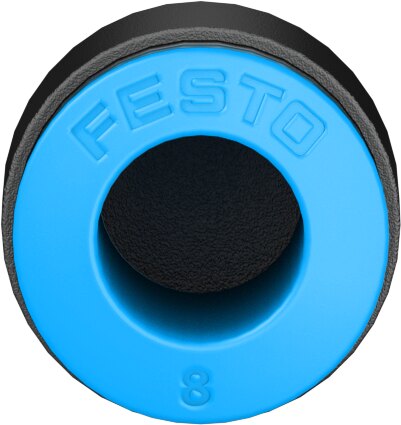

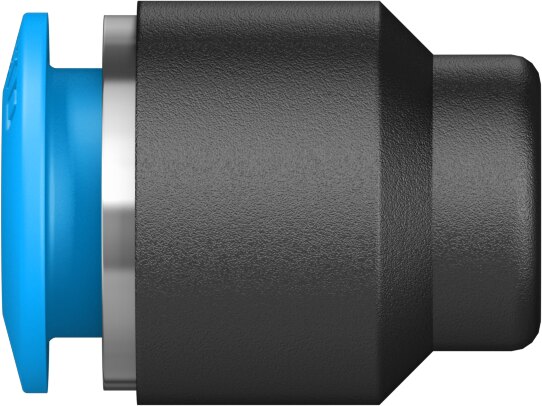

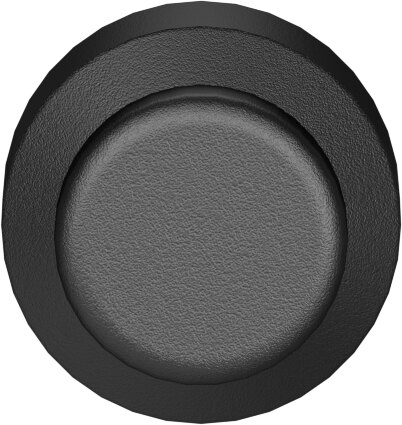

Push-in cap for tubing O.D. 5/16", -0.95 to 10 bar QSC-5/16-U - Festo 153831
The Festo push-in cap QSC-5/16-U seals the end of a tube with O.D. 5/16". It can be used from -0.95 to 10 bar and at -10 to 60 °C ambient temperature, so vacuum lines are covered too. Tool-free installation: push in the 5/16" tube, press the grey release ring to release it (push-pull principle).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo push-in cap QSC-5/16-U seals the end of a tube with O. D. 5/16". Tool-free installation: push in the 5/16" tube, press the grey release ring to release it (push-pull principle).
Benefits
- Pressure and vacuum -0.95 to 10 bar, so also suitable for vacuum
- Temperature range permitted from -10 to 60 °C
- Flow free cross-section with nominal size 4.9 mm
- Grip and sealing clamping segment in high-alloy stainless steel, tubing seal in NBR
- PWIS PWIS conformity VDMA24364-B1/B2-L, relevant for paint shops
Applications
Useful for sealing spare lines with O. D. 5/16". Permitted medium: compressed air to ISO 8573-1:2010 [7:-:-], nominal size 4.9 mm. Lubricated operation is possible. Housing in PBT, RoHS compliant.
Technical data
| Feature | Value |
|---|---|
| Type | QSC-5/16-U |
| Festo part number | 153831 |
| Size | Standard |
| Nominal size | 4.9 mm |
| Tubing insertion depth | 18.1 mm |
| Mounting position | Any |
| Design | Blanking plug |
| Construction | Push-pull principle |
| Operating pressure complete temperature range | -0.95 to 10 bar |
| Maritime classification | See certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 to 60 °C |
| Product weight | 4.7 g |
| Pneumatic connection, port 1 | For tubing O. D. 5/16" |
| Colour of release ring | Grey |
| Note on materials | RoHS compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
| Weight | 0.005 kg |
| Manufacturer | Festo |
| Hersteller-Nr | QSC-5/16-U |
| EAN | 4052568311025 |
| Zolltarifnummer | 39269097 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Bauform | Blindstopfen |
| Nominal size DN [mm] | 4,9 |
| Size BG | Standard |
| Seal material | NBR |
| Medium | Compressed air |
| Series | QSC |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
