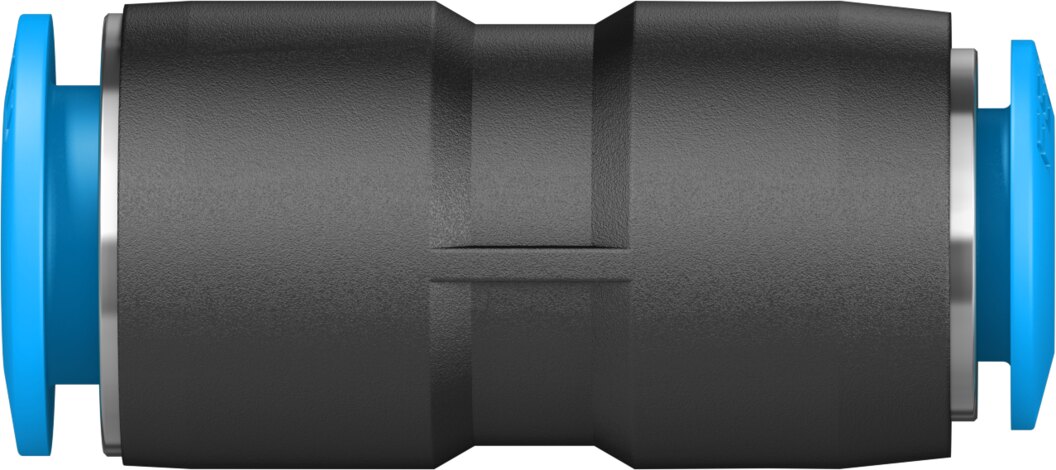

Push-in connector for tubing O.D. 5/8" to 1/2" QS-5/8T-1/2-U - Festo 190591
With the Festo push-in connector QS-5/8T-1/2-U, two lines with tubing O.D. 5/8" to 1/2" are connected in a straight line. It can be used from -0.95 to 10 bar and at -10 to 60 °C ambient temperature, so vacuum lines are covered too.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

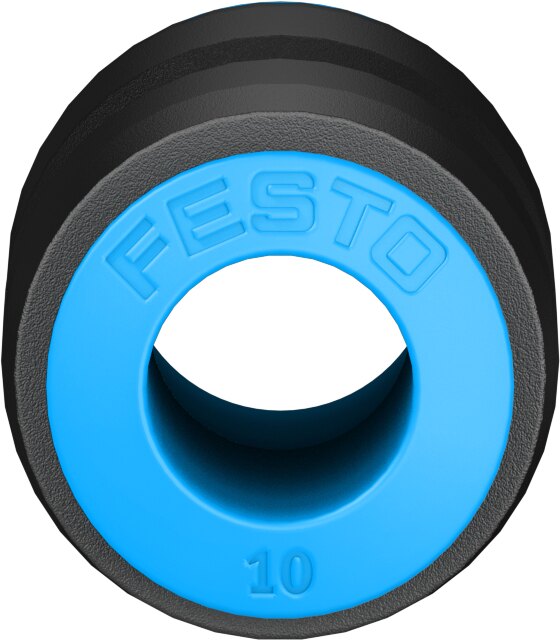

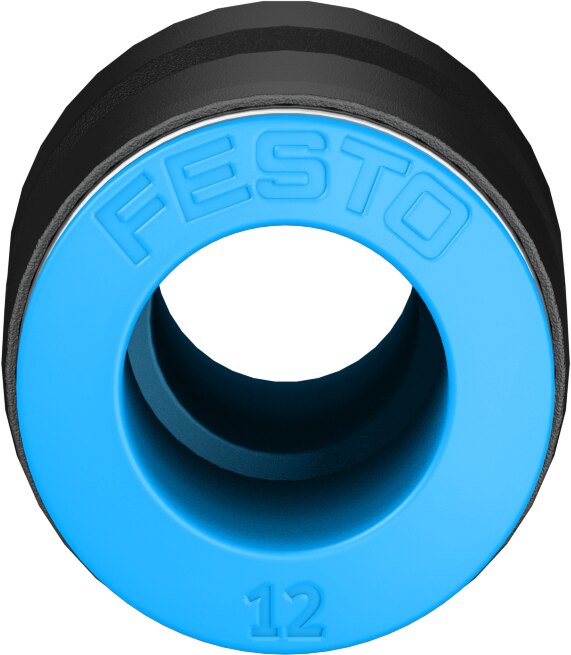

With the Festo push-in connector QS-5/8T-1/2-U, two lines with tubing O. D. 5/8" to 1/2" are connected in a straight line. The 1/2" tube locks when pushed in and can be pulled out again after pressing the grey release ring.
Benefits
- Pressure and vacuum -0.95 to 10 bar, so also suitable for vacuum
- Temperature range usable at -10 to 60 °C
- Flow free cross-section with nominal size 10.7 mm
- Grip and sealing clamping segment in high-alloy stainless steel, tubing seal in NBR
- PWIS PWIS conformity VDMA24364-B1/B2-L, relevant for paint shops
Applications
Handy for joining or repairing compressed-air lines with tubing O. D. 5/8". Permitted medium: compressed air to ISO 8573-1:2010 [7:-:-], nominal size 10.7 mm. Lubricated compressed air is also permitted. Housing in PBT, RoHS compliant.
Technical data
| Feature | Value |
|---|---|
| Type | QS-5/8T-1/2-U |
| Festo part number | 190591 |
| Size | Standard |
| Nominal size | 10.7 mm |
| Mounting position | Any |
| Design | Straight design |
| Construction | Push-pull principle |
| Operating pressure complete temperature range | -0.95 to 10 bar |
| Maritime classification | See certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 to 60 °C |
| Product weight | 26 g |
| Pneumatic connection, port 1 | For tubing O. D. 5/8" |
| Pneumatic connection, port 2 | For tubing outside diameter of 1/2" |
| Colour of release ring | Grey |
| Note on materials | RoHS compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
| Weight | 0.026 kg |
| Manufacturer | Festo |
| Hersteller-Nr | QS-5/8T-1/2-U |
| EAN | 4052568322755 |
| Zolltarifnummer | 39174000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Bauform | gerade Form |
| Nominal size DN [mm] | 10,7 |
| Size BG | Standard |
| Seal material | NBR |
| Medium | Compressed air |
| Series | QS |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
