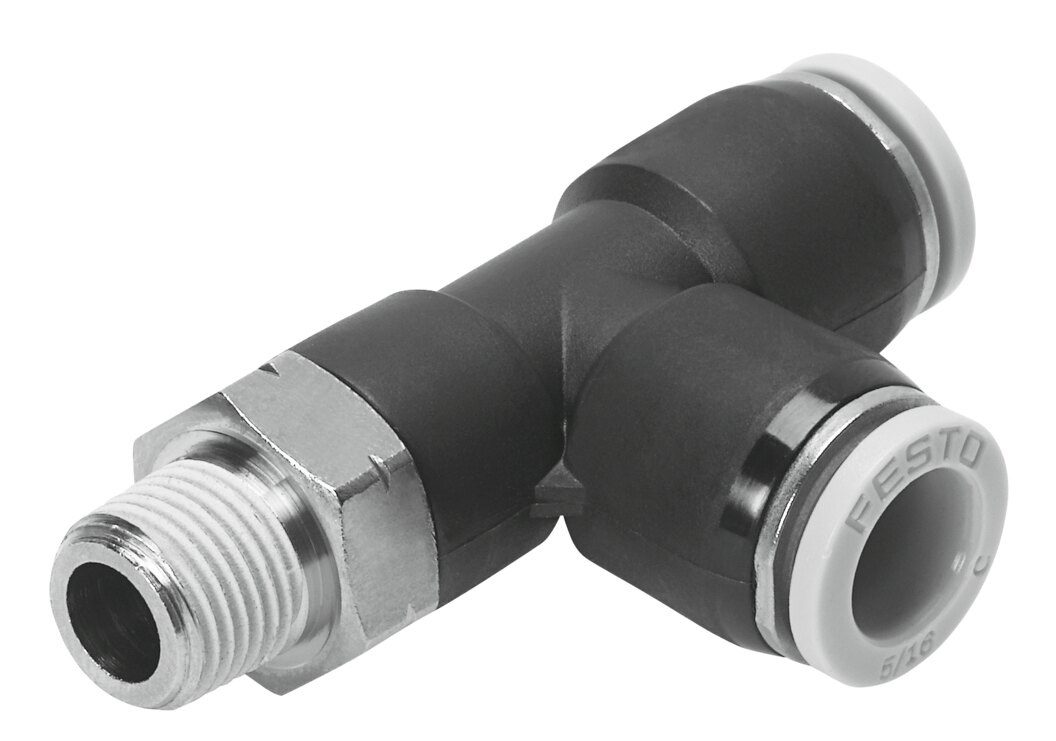

Push-in T-fitting with male thread R3/8 for tubing O.D. 5/16" QBT-3/8-5/16-U-M - Festo 533261
The push-in T-fitting QBT-3/8-5/16-U-M screws into the threaded port via male thread R3/8, the other side takes tubing with O.D. 5/16". Made of PBT, nominal width 5.994 mm, rated for max. 10 bar operating pressure. Permitted ambient temperature: 0 to 60 °C. CRC 1, low corrosion stress.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The push-in T-fitting QBT-3/8-5/16-U-M screws into the threaded port via male thread R3/8, the other side takes tubing with O. D. 5/16". Nominal width 5.994 mm, operating pressure max. 10 bar.
Benefits
- Male thread R3/8 with sealing coating
- Connection for tubing O. D. 5/16"
- Nominal width 5.994 mm
- Operating pressure max. 10 bar
- Housing in PBT, corrosion resistance class 1
- Ambient temperature 0 to 60 °C
Applications
Application example QBT-3/8-5/16-U-M: compressed air connection via male thread R3/8 on machines whose lines are in inch sizes (O. D. 5/16").
Technical data
| Feature | Value |
|---|---|
| Type | QBT-3/8-5/16-U-M |
| Festo part number | 533261 |
| Size | standard |
| Nominal width | 5.994 mm |
| Seal type on screw-in stud | coating |
| Design | T-shape |
| Operating pressure, full temperature range | max. 10 bar |
| Maritime classification | see certificate |
| Operating medium | compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | lubricated operation possible |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | 0 to 60 °C |
| Product weight | 31.809 g |
| Mounting type | external hex A/F 17 |
| Pneumatic connection 1 | male thread R3/8 |
| Pneumatic connection 2 | for tubing O. D. 5/16" |
| Release ring colour | grey |
| Material note | RoHS compliant |
| Housing material | PBT |
| Thread seal material | NBR |
| Release ring material | POM |
| Tubing clamp segment material | high-alloy stainless steel |
| Manufacturer | Festo |
| Hersteller-Nr | QBT-3/8-5/16-U-M |
| EAN | 4052568340865 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Thread | R 3/8 |
| Seal material | NBR |
| Medium | Compressed air |
| Thread type | External thread |
| Schlüsselweite [mm] | 17 |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | R3/8 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
