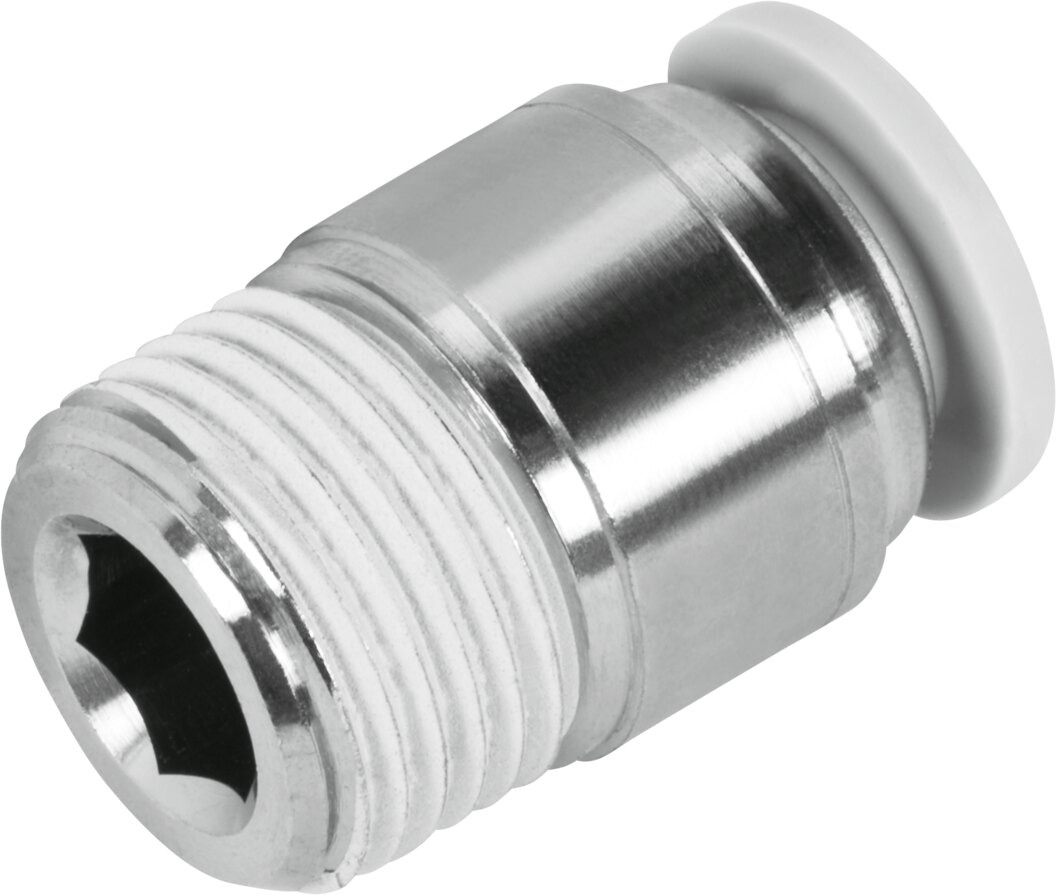

Straight push-in fitting 10-32 UNF-2A to tubing OD 1/4", PBT QBM-10-32-UNF-1/4-U - Festo 573050
The straight push-in fitting QBM-10-32-UNF-1/4-U connects tubing with an OD of 1/4" directly to a 10-32 UNF-2A port. The QBM-10-32-UNF-1/4-U is specified for -0.95 to 10 bar operating pressure and 0 to 60 °C ambient temperature.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The straight push-in fitting QBM-10-32-UNF-1/4-U connects tubing with an OD of 1/4" directly to a 10-32 UNF-2A port. The QBM-10-32-UNF-1/4-U is specified for -0.95 to 10 bar operating pressure and 0 to 60 °C ambient temperature.
Benefits
- From vacuum up to 10 bar operating pressure -0.95 to 10 bar across the full temperature range
- Housing made of PBTcorrosion resistance class CRC 1
- Tubing seal made of NBR
- LABS (PWIS) conformity to VDMA24364 zone III
- Nominal width 2.489 mm
- Mini sizeproduct weight 10.008 g
Applications
Typical locations for the QBM-10-32-UNF-1/4-U are valves, cylinders and service units with a 10-32 UNF-2A port. The QBM-10-32-UNF-1/4-U works with compressed air to ISO 8573-1:2010 [7:-:-], lubricated operation possible..
Technical data
| Feature | Value |
|---|---|
| Type | QBM-10-32-UNF-1/4-U |
| Festo part number | 573050 |
| Size | Mini |
| Nominal width | 2.489 mm |
| Seal type on screw-in stud | Sealing ring |
| Mounting position | Any |
| Design | Straight |
| Construction | Push-pull principle |
| Operating pressure, full temperature range | -0.95 to 10 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | 0 to 60 °C |
| Max. tightening torque | 1.5 Nm |
| Product weight | 10.008 g |
| Mounting type | External hex 7/16 |
| Pneumatic connection 1 | Male thread 10-32 UNF-2A |
| Pneumatic connection 2 | For tubing OD 1/4" |
| Release ring colour | Grey |
| Material note | RoHS compliant |
| Housing material | PBT |
| Release ring material | POM |
| Tubing seal material | NBR |
| Tubing clamp segment material | High-alloy stainless steel |
| Manufacturer | Festo |
| Hersteller-Nr | QBM-10-32-UNF-1/4-U |
| EAN | 4052568375867 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Bauform | gerade Form |
| Thread | UNF 10-32 |
| Size BG | Mini |
| Seal material | NBR |
| Medium | Compressed air |
| Thread type | External thread |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
