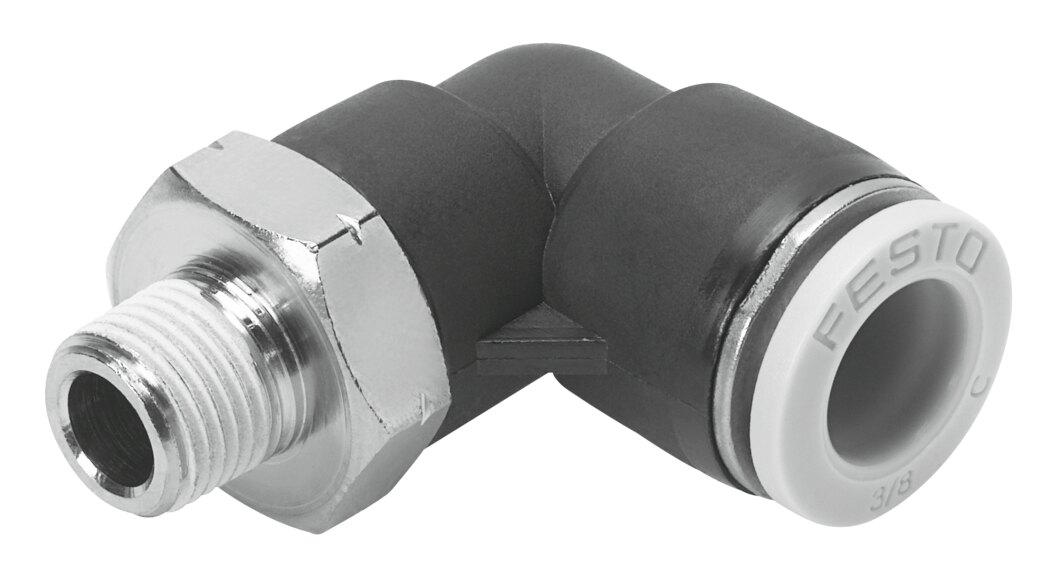

Push-in L-fitting with male thread 1/4 NPT for tubing O.D. 3/16" QBL-1/4-3/16-U - Festo 533294

Festo ✓ Original product Brand new

The push-in L-fitting QBL-1/4-3/16-U links a threaded port (male thread 1/4 NPT) to tubing with O. D. 3/16". Operating pressure -0.95 to 10 bar, vacuum included, nominal width 2.997 mm, housing in PBT. Permitted ambient temperature: 0 to 60 °C. CRC 1, low corrosion stress. price per piece.

Net
€2.37
excl. VAT
Item FES-533294
Manufacturer no. QBL-1/4-3/16-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The push-in L-fitting QBL-1/4-3/16-U links a threaded port (male thread 1/4 NPT) to tubing with O. D. 3/16". The nominal width is 2.997 mm and the operating pressure -0.95 to 10 bar.

Benefits

  • Male thread 1/4 NPT with sealing coating
  • Connection for tubing O. D. 3/16"
  • Nominal width 2.997 mm
  • Operating pressure -0.95 to 10 bar, vacuum included
  • Housing in PBT, corrosion resistance class 1
  • Tubing released by the push-pull principle via the release ring

Applications

The QBL-1/4-3/16-U is suitable for working and control lines with O. D. 3/16", connected via male thread 1/4 NPT.

Technical data

FeatureValue
TypeQBL-1/4-3/16-U
Festo part number533294
Sizestandard
Nominal width2.997 mm
Seal type on screw-in studcoating
Mounting positionany
DesignL-shape
Constructionpush-pull principle
Operating pressure, full temperature range-0.95 to 10 bar
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumlubricated operation possible
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Ambient temperature0 to 60 °C
Product weight16.698 g
Mounting typeexternal hex 9/16
Pneumatic connection 1male thread 1/4 NPT
Pneumatic connection 2for tubing O. D. 3/16"
Release ring colourgrey
Material noteRoHS compliant
Housing materialPBT
Thread seal materialPTFE
Release ring materialPOM
Tubing seal materialNBR
Tubing clamp segment materialhigh-alloy stainless steel
Weight0.018 kg
ManufacturerFesto
Hersteller-NrQBL-1/4-3/16-U
EAN4052568341190
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
ThreadNPT 1/4
Seal materialNBR, PTFE
MediumCompressed air
Thread typeExternal thread
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/4
Temperaturbereich0-60 °C
Temperature (max.)60
