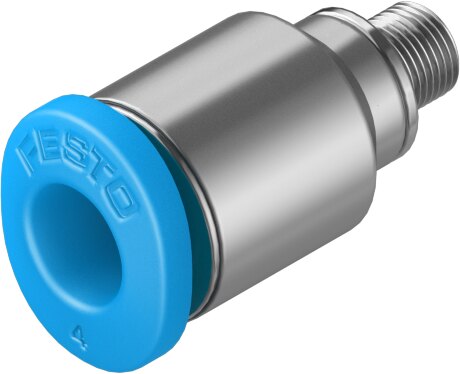

Push-in fitting in nickel-plated brass with male thread 10-32 UNF-2A for tubing O.D. 5/32" QB-10-32-UNF-5/32-U - Festo 533267
The push-in fitting QB-10-32-UNF-5/32-U screws into the threaded port via male thread 10-32 UNF-2A, the other side takes tubing with O.D. 5/32". Made of nickel-plated brass, nominal width 2.489 mm, rated for -0.95 to 10 bar operating pressure. Permitted ambient temperature: 0 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The push-in fitting QB-10-32-UNF-5/32-U screws into the threaded port via male thread 10-32 UNF-2A, the other side takes tubing with O. D. 5/32". Nominal width 2.489 mm, operating pressure -0.95 to 10 bar.
Benefits
- Male thread 10-32 UNF-2A with sealing ring on the screw-in stud
- Connection for tubing O. D. 5/32"
- Nominal width 2.489 mm
- Operating pressure -0.95 to 10 bar, vacuum included
- Housing in nickel-plated brass, corrosion resistance class 1
- Tubing released by the push-pull principle via the release ring
Applications
Application example QB-10-32-UNF-5/32-U: compressed air connection via male thread 10-32 UNF-2A on machines whose lines are in inch sizes (O. D. 5/32").
Technical data
| Feature | Value |
|---|---|
| Type | QB-10-32-UNF-5/32-U |
| Festo part number | 533267 |
| Size | standard |
| Nominal width | 2.489 mm |
| Seal type on screw-in stud | sealing ring |
| Mounting position | any |
| Design | straight |
| Construction | push-pull principle |
| Operating pressure, full temperature range | -0.95 to 10 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | lubricated operation possible |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | 0 to 60 °C |
| Max. tightening torque | 1.5 Nm |
| Product weight | 5.812 g |
| Mounting type | external hex 7/16, internal hex 3/32 |
| Pneumatic connection 1 | male thread 10-32 UNF-2A |
| Pneumatic connection 2 | for tubing O. D. 5/32" |
| Release ring colour | grey |
| Material note | RoHS compliant |
| Housing material | nickel-plated brass |
| Release ring material | POM |
| Tubing seal material | NBR |
| Tubing clamp segment material | high-alloy stainless steel |
| Weight | 0.008 kg |
| Manufacturer | Festo |
| Hersteller-Nr | QB-10-32-UNF-5/32-U |
| EAN | 4052568340926 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Nickel-plated brass |
| Thread | UNF 10-32 |
| Seal material | NBR |
| Medium | Compressed air |
| Thread type | External thread |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
